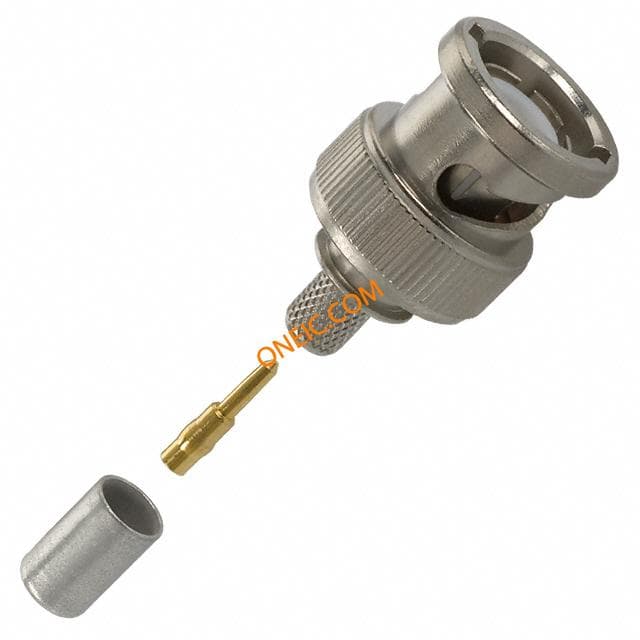

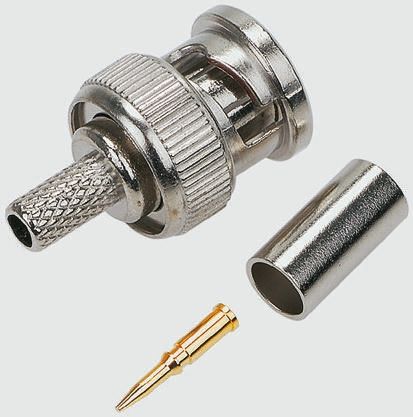

225395-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn BNC PL 50Ohm Crimp ST Cable Mount Gold BNC RF Connectors CONN BNC PLUG STR 50 OHM CRIMP BNC plug, dual crimp,RG58, 58A, 58B, 58C RF Connectors / Coaxial Connectors D.C. PLUG 50 OHM Conn BNC PL 50Ohm Crimp ST Cable Mount Gold Product Highlights:ConnectorConnector Type = BNCPlugTerminate To Coaxial CableNot StackedSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 RF/COAXIAL, BNC PLUG, STR, 50 OHM, CRIMP BNCDUALCRMPMIL-TYP,BNCPLUGDUALCRIMPRG58,A,B,C Straight Connector Crimp-On RG-58 TE Connectivity 直 50Ω 电缆安装 BNC 连接器 插头, 压接 端接, RG58 A/U, RG58 B/U, RG58 C/U, RG58/U电缆, 镀镍本体 BNC PLUG DUAL CRIMP RG58,A,B,C |
| 分类 |
商业参数
| 产品 | Connectors | 其他名称 | A1100 |
| 产品类别 | RF Connectors / Coaxial Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Contains lead / RoHS non-compliant | 海关税号 | 85366910 |
| 抗辐射加固 | No | ||
电气参数
| 阻抗 | 50 Ohm | 额定电压 | 500 V |
| 最大频率 | 4GHz | 绝缘电阻 | 5000 MOhms |
机械参数
| 尺寸 | Standard | 重量 | 0.009 |
| 直径 | 14.53 mm | 包装方式 | Bulk |
| 电缆类型 | RG-58, RG-58A, RG-58B, RG-58C | 本体表面处理 | Nickel |
| 电缆组 | RG-58, 58A, 58B, 58C | 方向 | Straight |
| 端接方式 | Crimp | 安装类型 | Cable Mount |
| 行程角度 | Straight | 连接器类型 | Plug, Male Pin |
| 接触镀层 | Gold | 紧固类型 | Bayonet Lock |
| 外壳涂层 | Nickel | 安装样式 | Cable |
| 壳体镀层 | Nickel | 连接器样式 | BNC |
| 触头材料 | Brass | 总长度 | 30.94 mm |
| 主要材料 | BNC | 端接样式 | Crimp |
| 屏蔽层端接方式 | Crimp | 接触件端接 | Crimp |
| 介电材料 | Fluoropolymer (FP) | 绝缘材料 - 类型 | Teflon |
| 中心触点镀层工艺 | Gold | 中心触点材料 | Brass |
| 供应商器件封装 | Straight | ||
产品信息
| 类型 | BNC | 连接器性别 | PL |
| 极性 | Normal | 连接类型 | Coaxial Cable |
| 射频系列/标准 | 225395 | ||
环境参数
| 工作温度 | - 65 C to + 165 C | ||
