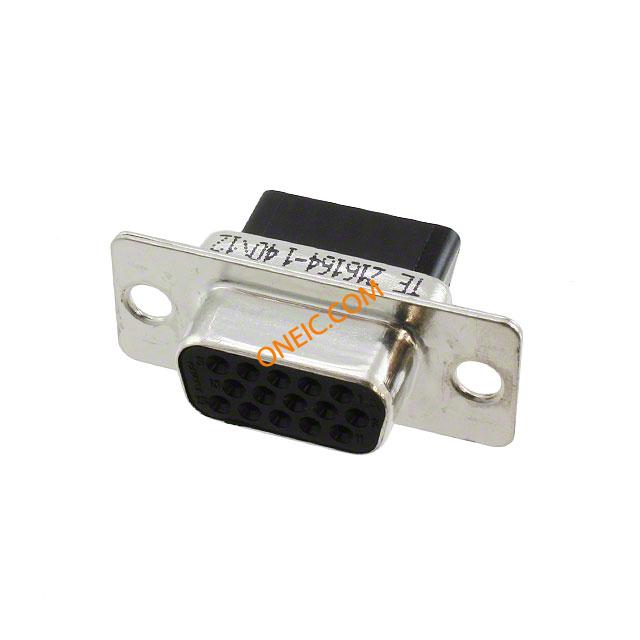

216164-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 15 POS Crimp ST D-Sub High Density Connectors 15P HDP22 RECP SZ 1 CONN RCPT 15POS CRIMP SNAP METAL AMPLIMITE HDP22 d-sub cable socket,15way D-Sub Standard Connectors 15P HDP22 RECP SZ 1 Conn Housing RCP 15 POS Crimp ST Product Highlights:ConnectorProduct Series = HDP-22 (Crimp Snap)Number of Positions = 15ReceptacleWithout Contacts RECEPTACLE KIT, 15 WAY Connector,HDP-22,housing,recp,size2 TE Connectivity AMPLIMITE HDP-22系列 15路 直 压接式 D-sub 连接器, 插座 |
| 分类 |
商业参数
| 产品类别 | D-Sub High Density Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 量程（°/s） | :TE - HDP 22 Series | ||
机械参数
| 颜色 | Black | 深度 | 17.9mm |
| 宽度 | 12.5mm | 长度 | 30.8mm |
| 重量 | 0.58 | 包装方式 | Bulk |
| 触头类型 | Signal | 安装类型 | Straight |
| 连接器类型 | Receptacle for Female Contacts | 接触镀层 | :- |
| 法兰特征 | Housing/Shell (Unthreaded) | 排数 | 2 |
| 连接器样式 | D-Sub, High Density | 触头材料 | :- |
| 壳体材料 | PA | 触点数 | 15 |
| 介电材料 | Polyamide (PA), Nylon, Glass Filled | 位数 | 15 |
| 外壳材料及表面处理 | Steel, Tin Plated | 外壳尺寸，连接器布局 | 1 (DE, E) High Density |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | HDP-22 |
文档与媒体
相关型号
