213603-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Strip Pin & Socket Connectors PIN 18-14 30 AU Multimate CONN PIN .062 14-18AWG AU CRIMP Multimate Product Highlights:PinGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 0.80-2.00² [18-14] mm [AWG]Insulation Diameter = 2.79 - 3.81 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts 5015 PIN,18-14,30AU DUP,STRIP |
| 分类 |
商业参数
| 其他名称 | A111097CT | 标准包装规格 | 4,000 |
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Tape & Reel |
| 工厂包装数量 | 4000 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 测试电流 | 13 | ||
机械参数
| 镀层 | Gold | 材料（通用） | Brass |
| 包装方式 | Reel | 电缆类型 | 分离式导线 |
| 导线线规 | 14-18 AWG | 端接方式 | Crimp |
| 触头类型 | Signal | 插针或插孔 | Pin |
| 连接器类型 | Connector Headers and PCB Receptacles | 接触镀层 | Gold Over Nickel |
| 插入件材料 | 黄铜 | 触头材料 | Brass |
| 包装数量 | 4000 | 端接样式 | 插针 |
| 接触件端接 | Crimp | 绝缘直径 | 2.79 – 3.81 mm [ .11 – .15 in ] |
| 镀层厚度（通用） | 30µin (0.76µm) | 兼容外壳尺寸（如TM-700等） | MIL-C-5015 圆形连接器 |
| 接触镀层厚度 | 30 | ||
产品信息
| 类型 | Stamped | 连接器性别 | PIN |
| 系列 | CPC | 产品子类型 | 端子 |
| 应用细节 | Signal | ||
文档与媒体
相关型号
213671-1
te connectivity / amp
Conn MIL-C-5015 Circular PIN 10 POS Crimp ST Cable Mount 10 Terminal 1 Port Cable Assemblies 18-10 PLUG KIT REV W/CPLG RING CPC Connectors CONN PLUG CPC 10POS FREE HANGING Standard Circular Connector 18-10 PLUG KIT REV W/CPLG RING Conn MIL-C-5015 Circular PIN 10 POS Crimp ST Cable Mount 10 Terminal 1 Port Product Highlights:Plug KitNumber of Positions = 10PlugFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CPC 18-10 PLUG KIT W/CPLG RING
305183
te connectivity / amp
Straight Action Hand Tool Hand Tools EXTRACTION TOOL CONTACT EXTRACTION TOOL Type III + contacts extraction tool EXTRACTION TOOL, SERIES 1 EXTRACTIONTOOLFORCPCCONNECTORSWITHMULTIMATECONTACTS Tool: for demounting of terminals; terminals; 115mm Extraction tool, 305183, TE Connectivity TE Connectivity CPC, M 系列 压接拔取工具 , 适用于26 → 14AWG 压接 触点 EXTRACT TOOL TYPE 2 20-16

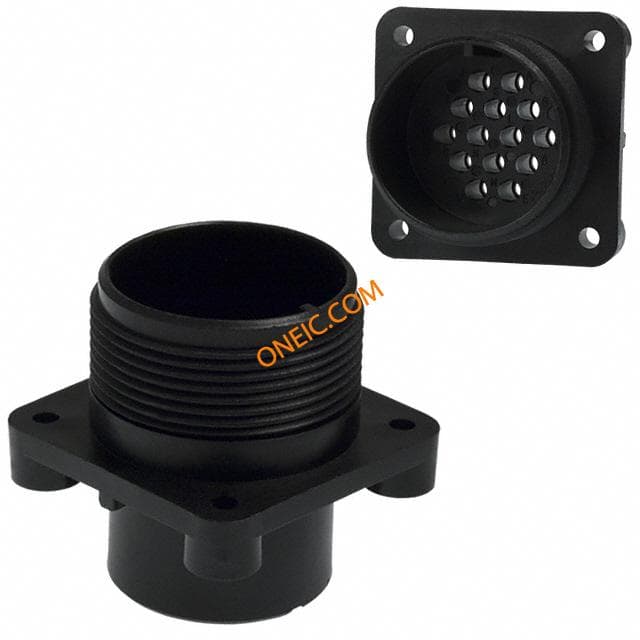

213651-1
te connectivity / amp
Conn MIL-C-5015 Circular PIN 14 POS Crimp ST Panel Mount 14 Terminal 1 Port CPC Connectors CONN RECEPT CPC 14POS STD BLK Standard Circular Connector CPC RCPT 20-14 Conn MIL-C-5015 Circular PIN 14 POS Crimp ST Panel Mount 14 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 14ReceptacleFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC ConnectorHousing;CPCReceptacle;14Pos;Sz20;MIL-C-5015;PanelMnt;StdSex CPC RCPT 20-14 STD SEX

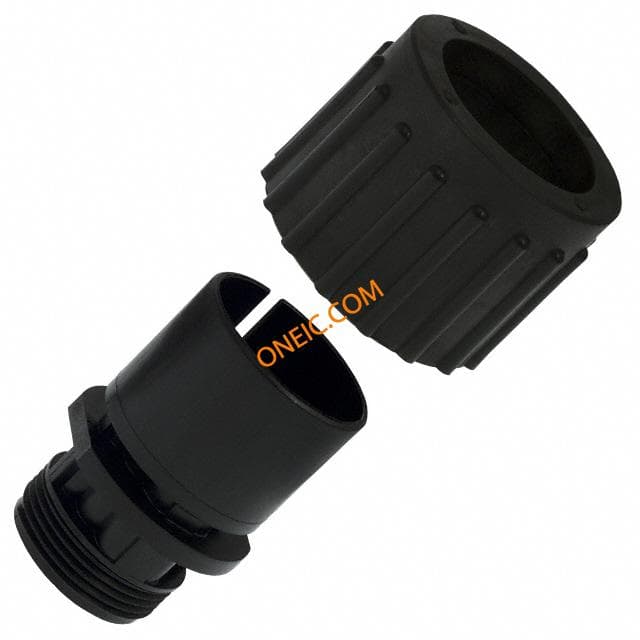

213571-2
