211159-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact PIN Crimp ST Cable Mount Loose Piece D-Sub Contacts PIN 10 AWG Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 CONN PIN 10AWG CRIMP GOLD Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactProduct Series = 109Density = StandardTerminate To WirePinSearch Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub PIN CONTACT ASSY |
| 分类 |
商业参数
| 产品类别 | D-Sub Contacts | 标准包装数量 | Bulk |
合规参数
| RoHS | RoHS Compliant | 资质认证 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | No | ||
电气参数
| 连接器阻抗 | 压接 | 输出高/低电流 | No |
机械参数
| 材料（通用） | Beryllium Copper | 包装方式 | Bulk |
| 导线线规 | 10 | 端接方式 | Crimp |
| 触点形式 | Machined | 触点尺寸 | 8 |
| 触头类型 | Power | 端子尺寸 | 8 |
| 连接器类型 | Connector D-Subminiature | 接触镀层 | Gold Over Nickel |
| 插入件材料 | 含铅青铜 | 触头材料 | Copper Alloy |
| 包装数量 | Loose Piece | 绝缘高度 | No |
| 端接样式 | Crimp | 第一触头极性 | Pin (Male) |
| 连接器颜色 | 否 | 接触件端接 | Crimp |
| 绝缘直径 | .185 | 兼容外壳尺寸（如TM-700等） | AMPLIMITE |
| 接触镀层厚度 | 50µin (1.27µm) | 线规或范围 - mm² | 5.00-6.00² [10] |
产品信息
| 备注 | Use these contacts only with the Standard connectors. Do not use with Blindmate | 类型 | Power |
| 连接器性别 | PIN | 系列 | 109 |
| 密度 | Standard | 产品子类型 | Contact |
| 连接类型 | Wire | ||
文档与媒体
相关型号
608651-2
te connectivity / amp

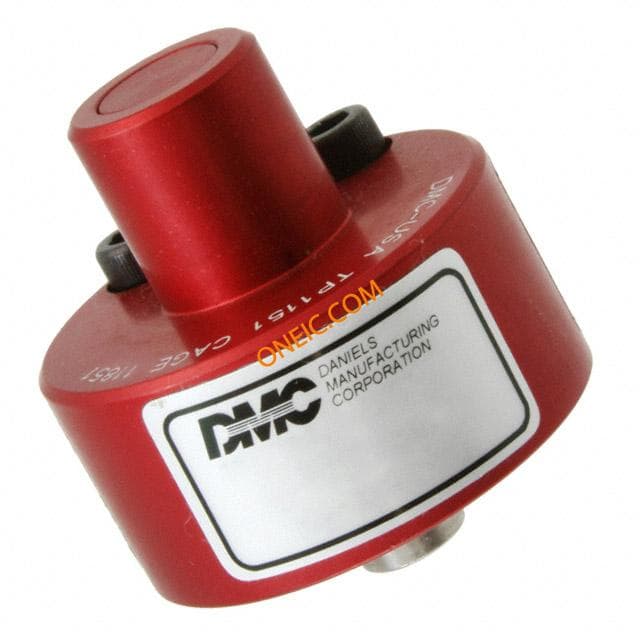

Assembly Tools, Power Contacts Tools Crimpers POSITIONER DANIELS S POSITIONER FOR 608651-1 8-14AWG SINGLE POSITION HEAD, SP689
