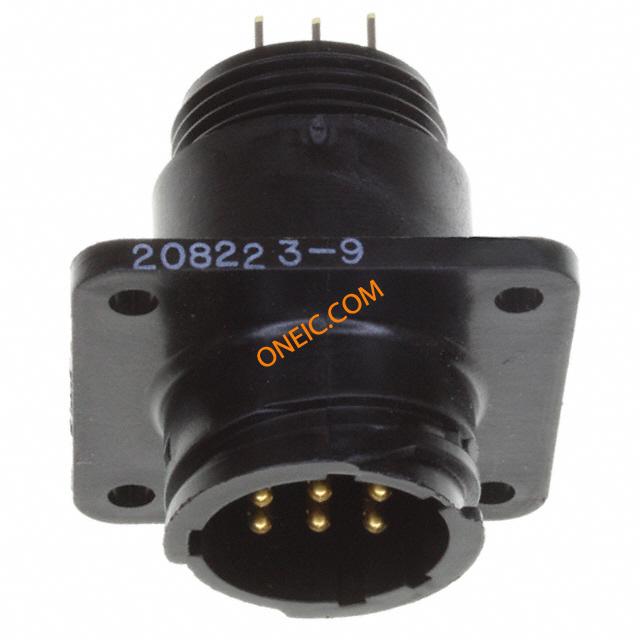

208223-9
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn CPC PIN 9 POS Solder ST Thru-Hole 9 Terminal 1 Port CPC Connectors CONN RCPT CPC 9POS SZ13 STD Standard Circular Connector REC PIN 13-9 PCB Conn CPC PIN 9 POS Solder ST Thru-Hole 9 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 9ReceptaclePinPreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIRCULAR CONNECTOR RCPT, SIZE 13, 9POS, PANEL Connector;CPC;Recept.Assyw/Pins;9Pos;Sz13;Series1;PanelMnt;StdSex CPC RECPT ASSEMBLY SIZE 13-9 |
| 分类 |
商业参数
| 商标名 | CPC Series 1 | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Trays | 工厂包装数量 | 36 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
| 合规性 | No | 抗辐射加固 | No |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | 600VAC/DC | 通道数量 | 9 |
| 最大额定电流 | 13A | ||
机械参数
| 颜色 | Black | 深度 | 32.54 mm |
| 高度 | 34.41 mm | 密封型 | No |
| 重量 | 0.014 | 包装方式 | Tray |
| 出线方向 | No | 外壳尺寸 | 13 |
| 方向 | A | 外壳样式 | Plug |
| 端接方式 | Solder | 螺纹尺寸 | 3/4 - 20 UNEF-2A |
| 触点形式 | 9Signal | 触头类型 | Posted |
| 外壳颜色 | Black | 安装类型 | Through Hole |
| 插针或插孔 | Pin | 行程角度 | Straight |
| 连接器类型 | Receptacle, Male Pins | 接触镀层 | Tin over Nickel |
| 紧固类型 | Threaded | 安装样式 | Panel |
| 连接器样式 | Receptacle | 本体材料 | :Thermoplastic |
| 触头材料 | Copper Alloy | 壳体材料 | Thermoplastic |
| 总长度 | 32.54 mm | 面板安装类型 | Square Flange |
| 主要材料 | CircularPlasticConnector | 端接样式 | Printed Circuit Board |
| 第一触头极性 | Pin | 配接方向 | Keyed |
| 触点数 | 9 | 端接表面处理 | Tin |
| 位数 | 9 | 外壳尺寸-插件 | All Plastic |
| 安装孔直径 | 3.18 [.125] | 外壳材料及表面处理 | Thermoplastic |
| 端子柱长度 | 5.59 [0.220] | 接触镀层厚度 | 30µin (0.76µm) |
| 第一连接器安装类型 | :Panel | 第二连接器安装特性 | Standard |
| 外壳尺寸-插入件（转换至） | 13-9 | ||
产品信息
| 备注 | Commercial item. | 类型 | CPC |
| 连接器性别 | RCP | 系列 | Series 1 |
| 钥匙类型 | A | 预加载 | Yes |
| 排列方式 | 13-9 | 制造商全称 | Series1 |
| 产品子类型 | Connector | 射频系列/标准 | 208223 |
| 其他规格 | Without | 应用细节 | Commercial |
环境参数
| 防护等级 | IP65 | 工作温度 | -40°C ~ 105°C |
