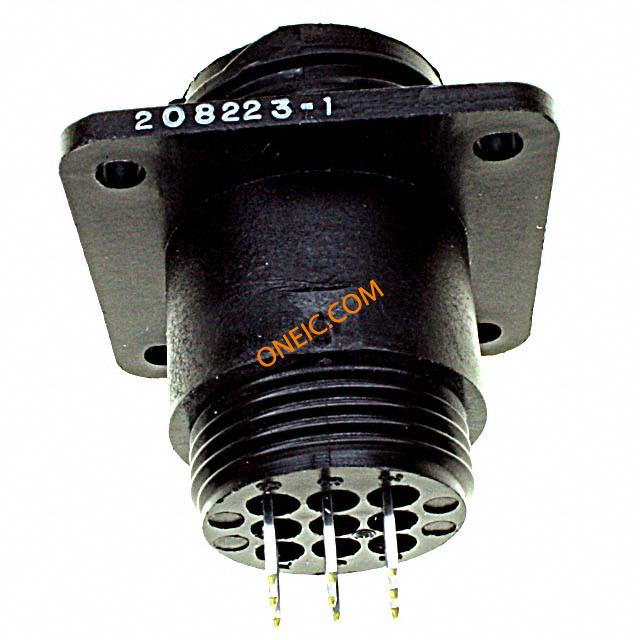

208223-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn CPC PIN 9 POS Solder ST Thru-Hole 9 Terminal 1 Port Standard Circular Connector 9P PCB 13-9 RECEPT 216 CPC Connectors CONN RCPT CPC 9POS SZ13 STD Conn CPC PIN 9 POS Solder ST Thru-Hole 9 Terminal 1 Port Product Highlights:ConnectorConnector Type = ReceptacleNumber of Positions = 99 Signal Positions0 Power PositionsSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC Connector;CPC;Recept.Assyw/Pins;9Pos;Sz13;Series1;PanelMnt;StdSex CPC Series 1 Panel Mount Receptacle 9 Position Circular Plastic Connector CPC RECPT ASSEMBLY SIZE 13-9 |
| 分类 |
商业参数
| 交货时间 | 63 Days | 商标名 | CPC Series 1 |
| 子类别 | Connector Circular | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Trays | 工厂包装数量 | 36 |
合规参数
| RoHS | No | 合规性 | No |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | Not ELV/RoHS compliant | UL阻燃等级 | UL 94V-0 |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 输入端 | 1.56 | 额定电压 | 600VAC/DC |
| 防溅等级 | 无 | 通道数量 | 9 |
| 最大额定电流 | 13A | 连接器类型 - 电压输入 | 标准 |
机械参数
| 深度 | 32.53 mm | 高度 | 34.41 mm |
| 密封型 | No | 外形尺寸(长x宽) | 13 |
| 包装方式 | Tray | 出线方向 | No |
| 外壳尺寸 | 13 | 方向 | A |
| 外壳样式 | Receptacle | 端接方式 | Solder |
| 螺纹尺寸 | 3/4 - 20 UNEF-2A | 触点形式 | 9Signal |
| 触头类型 | Posted | 外壳颜色 | Black |
| 安装类型 | Through Hole | 插针或插孔 | Pin |
| 外壳镀层 | Gold over Nickel | 连接器类型 | Receptacle, Male Pins |
| 接触镀层 | Tin-Lead over Nickel | 紧固类型 | Threaded |
| 安装样式 | Panel | 引脚数 | 0 |
| 外壳材料（壳体） | 母端, 母端 | 连接器样式 | Receptacle |
| 触头材料 | Copper Alloy | 壳体材料 | Thermoplastic |
| 总长度 | 32.53 mm | 包装数量 | 36 |
| 面板安装类型 | Square Flange | 主要材料 | CircularPlasticConnector |
| 端接样式 | Solder Tail | 第一触头极性 | Pin (Male) |
| 配接方向 | Threaded | 触点数 | 9 |
| 端接表面处理 | Tin-Lead | 位数 | 9 |
| 外壳尺寸-插件 | All Plastic | 安装孔直径 | 3.18 [.125] |
| 外壳材料及表面处理 | Thermoplastic | 端子柱长度 | 5.59 [0.220] |
| 接触镀层厚度 | 30µin (0.76µm) | 第一连接器安装类型 | Panel |
| 第二连接器安装特性 | Standard | 外壳尺寸-插入件（转换至） | 13-9 |
产品信息
| 备注 | Commercial item. | 类型 | CPC |
| 连接器性别 | RCP | 系列 | CPC |
| 已删除 | Not Compliant | 钥匙类型 | A |
| 预加载 | Yes | 产品子类型 | Connectors |
| 射频系列/标准 | 208223 | 其他规格 | Without |
| 适用产品/相关产品 | 208223-9 | ||
环境参数
| 工作范围 | 不密封 | 工作温度 | -40°C ~ 105°C |
