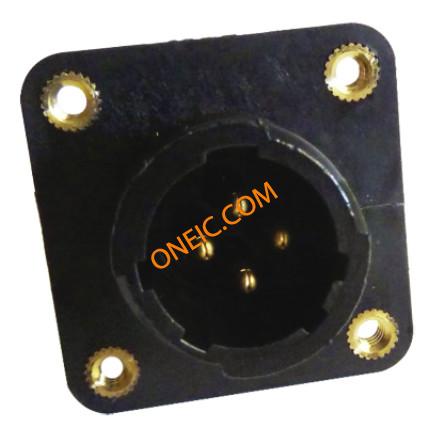

207825-9
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn CPC PIN 4 POS Solder ST Thru-Hole 4 Terminal 1 Port Standard Circular Connector CPC RCPT SIZE 11-4 RCPT SIZE 11-4 CPC Connectors CONN RCPT CPC 4POS STD SER 1 PCB Connector,CPC,Recept.Assy,Posted,4Pos Conn CPC PIN 4 POS Solder ST Thru-Hole 4 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 4ReceptaclePinPreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC Connector;CPC;Recept.Assy,Posted;4Pos;Sz11;Series1;PanelMnt;StdSex CPC RCPT ASSEMBLY SIZE 11-4 |
| 分类 |
商业参数
| 商标名 | CPC Series 1 | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Trays | 工厂包装数量 | 27 |
合规参数
| RoHS | RoHS Compliant | 合规性 | No |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| UL阻燃等级 | UL 94V-0 | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | 600VAC/DC | 防溅等级 | 无 |
| 通道数量 | 4 | 最大额定电流 | 13A |
机械参数
| 颜色 | Black | 密封型 | No |
| 外形尺寸(长x宽) | 11 | 包装方式 | Tray |
| 外壳尺寸 | 11 | 方向 | A |
| 外壳样式 | Receptacle | 端接方式 | Solder |
| 螺纹尺寸 | 5/8 - 24 UNEF-2A | 触头类型 | Pin |
| 外壳颜色 | Black | 安装类型 | Through Hole |
| 插针或插孔 | Pin | 行程角度 | Straight |
| 连接器类型 | Receptacle, Male Pins | 接触镀层 | Tin over Nickel |
| 紧固类型 | Threaded | 安装样式 | Panel |
| 引脚数 | 0 | 连接器样式 | Receptacle |
| 连接器用途 | Threaded | 壳体材料 | Thermoplastic |
| 总长度 | 1.449 | 包装数量 | 27 |
| 面板安装类型 | Square Flange | 主要材料 | CircularPlasticConnector |
| 端接样式 | Solder Tail | 第一触头极性 | Pin (Male) |
| 配接方向 | Threaded | 触点数 | 4 |
| 端接表面处理 | Tin | 位数 | 4 |
| 外壳尺寸-插件 | All Plastic | 安装孔直径 | 0.164" |
| 外壳材料及表面处理 | Thermoplastic | 螺纹/螺钉/孔尺寸 | 4-40 |
| 端子柱长度 | 3.02 [0.119] | 接触镀层厚度 | 30 uin |
| 第一连接器安装类型 | Panel | 第二连接器安装特性 | Standard |
产品信息
| 备注 | Posts are 0.43 [.017] offset from centerline of contacts. All posts must be ori | 类型 | CPC |
| 连接器性别 | RCP | 系列 | CPC |
| 钥匙类型 | A | 预加载 | Yes |
| 排列方式 | 11-4 | 制造商全称 | Series1 |
| 产品子类型 | Connectors | 其他规格 | Without |
| 应用细节 | Commercial | ||
环境参数
| 密封等级 | IP65 | 防护等级 | IP65 |
| 工作温度 | -40°C ~ 105°C | ||
