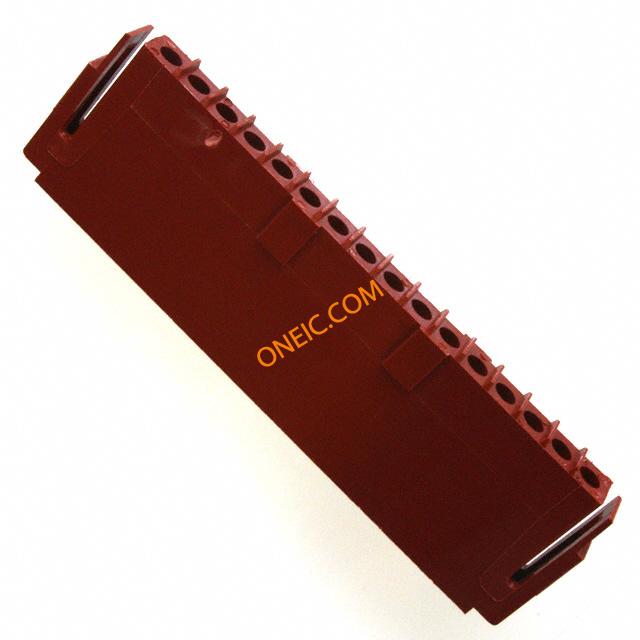

207542-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 16 POS 5mm ST Metrimate Connectors CONN PLUG 16 POS METRIMATE Housing 16 way socket In-line Metrimate Pin & Socket Connectors FREE HANGING PLG 16P Conn Housing PL 16 POS 5mm ST Product Highlights:HousingIn-Line Connector ConfigurationNumber of Positions = 16PlugWithout Coaxial SocketSearch Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, PLUG & SOCKET HOUSING, PLUG, PLASTIC METRIMATECONNECTOR,HSG,PLUG16POSN,METRIMATE TE Connectivity Metrimate 系列 5mm 节距 16 路 直 公 压接连接器外壳 HSG,PLUG 16 POSN,METRIMATE |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 75 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant / ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 电压 | 600.0 | 额定电压 | 600 V |
| 最大额定电流 | 14 A | ||
机械参数
| 颜色 | Red | 深度 | 27.5mm |
| 间距 | 5 mm | 宽度 | 7.85mm |
| 长度 | 89.79mm | 重量 | 1 |
| 包装方式 | Bulk | 触头类型 | Female Socket |
| 第二连接器 | With | 外壳颜色 | Red |
| 安装类型 | Straight | 连接器类型 | Housing |
| 紧固类型 | Latch Holder | 安装样式 | Free Hanging |
| 排数 | 1 | 轴直径 | Without |
| 连接器用途 | In-Line | 锁定特性 | Locking Latch |
| 壳体材料 | Thermoplastic - GF | 安装特性 | Without |
| 包装数量 | 150 | 主要材料 | InterconnectSystem |
| 端接样式 | Crimp | 第一触头极性 | Pin (Male) |
| 传感器连接器 | Without | 触点数 | 16 |
| 接触件端接 | Crimp and Solder | 位数 | 16 |
| 中心触点表面处理 | 5.0 | 第一连接器安装类型 | :Cable |
产品信息
| 备注 | A Dimension is Maximum for 16-position housing. | 类型 | Housing |
| 连接器性别 | PL | 系列 | Metrimate |
| 产品特性 | Polarizing Key | 编码、键控 | No |
| 制造商全称 | AMP | 产品子类型 | Housing |
| 其他规格 | No | 适用产品/相关产品 | PCB Connector |
