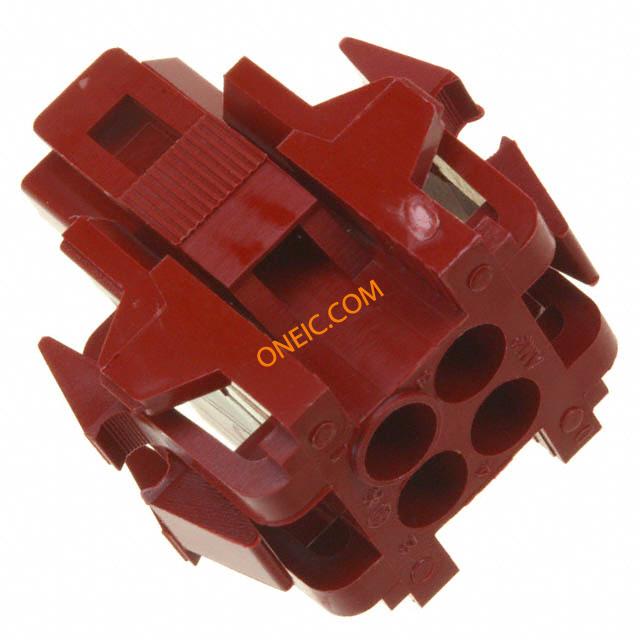

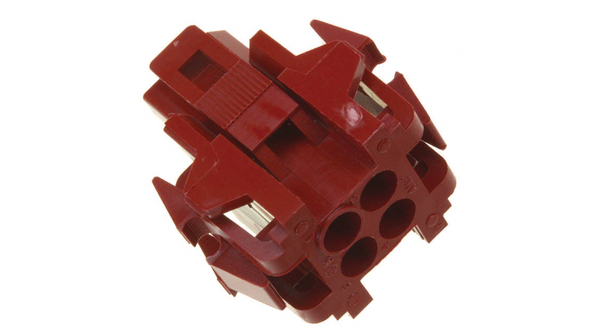

207015-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 4 POS 5mm ST Metrimate Connectors CONN PLUG 4 POS METRIMATE Housing,plug,Metrimate,sq grid,4 Way Pin & Socket Connectors HSGPLUG4PSM METRIC Conn Housing PL 4 POS 5mm ST Product Highlights:HousingSquare Grid Connector ConfigurationNumber of Positions = 4PlugWithout Coaxial SocketSearch Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, CONN, INLINE PLUG & SOCKET Connector,SoftShell;Plug;4;14A(Max.);600;Thermoplastic;Red;0.197in. Crimp housing 5 mm Poles 4 Contact DesignFemale Metrimate, 207015-1, TE Connectivity TE Connectivity Metrimate 系列 2 行 5mm 节距 4 路 直 公 压接连接器外壳 HSG,PLUG,4 POSN,SM METRIC |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 800 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | IEC |
| 海关税号 | 85369010 | 无铅定义 | Not relevant for lead free process |
| 认证机构 | CSA,UL,VDE | RoHS/ELV合规状态 | RoHS compliant / ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 电压 | 600.0 | 额定电压 | 600 V |
| 最大额定电流 | 14 A | 最小供电电压 | 600VAC |
机械参数
| 颜色 | Red | 深度 | 27.15mm |
| 间距 | 5 mm | 高度 | 27.15 mm |
| 长度 | 17.86mm | 重量 | 0.00455 |
| 包装方式 | Bulk | 排间距 | 0.197" (5.00mm) |
| 触头类型 | Female Socket | 极化 | PolarizingTab |
| 第二连接器 | With | 外壳颜色 | Red |
| 安装类型 | Straight | 行程角度 | Straight |
| 连接器类型 | Housing | 接触镀层 | :- |
| 紧固类型 | Locking Ramp | 安装样式 | Panel |
| 排数 | 2 | 轴直径 | Without |
| 连接器用途 | Square Grid | 锁定特性 | Locking Latch |
| 触头材料 | :- | 壳体材料 | Thermoplastic - GF |
| 总长度 | 21.06 mm | 安装特性 | Without |
| 包装数量 | 1,200 | 主要材料 | InterconnectSystem |
| 插针孔直径 | 0.197" | 第一触头极性 | Pin (Male) |
| 连接器颜色 | :Red | 传感器连接器 | Without |
| 配接方向 | Polarizing Tab | 触点数 | 4 |
| 接触件端接 | Crimp and Solder | 位数 | 4 |
| 外壳尺寸-插件 | :- | 中心触点表面处理 | 5.0 |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | AMP Metrimate |
| CAD图纸 | 3D CAD Model | 编码、键控 | No |
| 制造商全称 | AMP | 产品子类型 | Housing |
| 配置 | SquareGrid | 其他规格 | No |
| 适用产品/相关产品 | Square Grid Pin & Socket Connector | ||
环境参数
| 工作温度 | -55C to 130C | ||
文档与媒体
相关型号
66601-1
te connectivity / amp
III+ SKT,18-14,TIN-LEAD,LP Multimate CONN SOCKET 14-18AWG TIN CRIMP Contact SKT Crimp ST Cable Mount Loose Piece Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketTin-Lead over Nickel (30) Contact Mating Area Plating MaterialWire Range = 0.80-2.00² [18-14] mm [AWG]Insulation Diameter = 2.79 - 3.81 mmBrass Contact Base MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts TYPEIIICONTACTSLP,III+SKT,18-14,TIN-LEAD,LP
66183-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Multimate CONN SOCKET 20-26AWG GOLD SOLDER Contact Solder Socket 26-20AWG Multimate Pin & Socket Connectors CONTACT PINS .062 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketGold (30) over Nickel (30) Contact Mating Area PlatingWire Range = 0.12-0.50² [26-20] mm [AWG]Copper Alloy Contact MaterialGold Termination End PlatingSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, SOCKET, 26-20AWG, SOLDER Contact,Multimate;Socket;16;CopperAlloy;Signal;GoldoverNickel;Solder;26-20AWG MULTIMATE Type III+ Series 26-20 AWG Discrete Wire Solder Signal Socket Assembly Solder contact female, 66183-1, TE Connectivity TE Connectivity Type III+ 系列 母 压接接线端子, 焊接, 镀金镀镍触点 III+ SKT,SOLDER,30AU,10AU FLAS
66109-4
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Multimate CONN SOCKET 24-26AWG GOLD CRIMP Contact,female,26-24 awg,crimp Standard Circular Contacts GOLD SOCKET 26-24 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketGold (30) over Nickel (30) Contact Mating Area PlatingWire Range = 0.12-0.24² [26-24] mm [AWG]Insulation Diameter = .89 - 1.40 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts Contact;Socket;16;Brass;Signal;Gold(30)overNickel(30);26-24AWG MULTIMATE Type III+ Series 26-24 AWG Discrete Wire Crimp Signal Socket Assembly TE Connectivity Type III 系列 13A 母 压接端接 圆形 连接器 触芯, 使用于CPC 连接器、G 系列连接器、M 系列连接器, 26 → 24 AWG 线规格 III+ SKT,26-24,30AU/FL,LP
66424-6
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Multimate CONN SOCKET AWG 26-30 TIN CRIMP CONN SOCKET 26-30AWG TIN CRIMP Pin & Socket Connectors III+ SKT30-26 4000 66424-6 Contact SKT Crimp ST Cable Mount Strip Product Highlights:SocketBright Tin-Lead Contact Mating Area Plating MaterialWire Range = 0.05-0.15 [30-26] mm [AWG]Insulation Diameter = 1.02 - 1.52 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts III+ SKT,30-26,TIN-LEAD,STRIP
1-207119-0
te connectivity / amp
Conn Power PIN 4 POS 5mm Solder ST Thru-Hole 4 Terminal 1 Port Metrimate Connectors CONN HEADER PIN 4POS VERT GOLD Header vert 4 way Pin Metimate Pin & Socket Connectors 4P PIN HEADER GOLD METRIMATE Conn Power PIN 4 POS 5mm Solder ST Thru-Hole 4 Terminal 1 Port Product Highlights:HeaderSquare Grid Connector ConfigurationNumber of Positions = 4PinWithout Coaxial SocketSearch Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, CONNECTOR, HEADER, 4WAY Headervert4wayPinMetimate TE Connectivity Metrimate 系列 工业电源 通孔 插头 , 14A额定电流, 600 V 交流/直流 METRIMATE PIN HDR ASY,4P LF
1-207119-1
te connectivity / amp
Conn Wire to Board PIN 4 POS 5mm Solder ST Thru-Hole Metrimate Connectors CONN HEADER PIN 4POS VERT GOLD Pin & Socket Connectors METRIMATE PIN HDR ASY,4P LF Conn Wire to Board PIN 4 POS 5mm Solder ST Thru-Hole Product Highlights:HeaderSquare Grid Connector ConfigurationNumber of Positions = 4PinWithout Coaxial SocketSearch Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp,
202237-5
te connectivity / amp
Contact SKT Solder ST Cable Mount Loose Piece Multimate CONN SKT .062 SLD POST TIN Contact Socket solder Multimate Pin & Socket Connectors TIN SOCKET SOLDER Contact SKT Solder ST Cable Mount Loose Piece Product Highlights:Socket with Solder TabBright Tin Contact Mating Area PlatingBrass Contact MaterialBright Tin Termination End PlatingType III+Search Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, SOCKET, SOLDER MULTIMATETypeIII+Contact,Socketw/SolderTab,Size16Contact,Tin MultiMate Connector Type III+ Tin Termination End Plating Pin Solder Tab TE Connectivity Type III+ 系列 13A 母 焊接端接 圆形 连接器 触芯, 使用于CPC 连接器、M 系列连接器, 16 AWG 线规格 III+ SOC,SOLTAB,TIN,LP

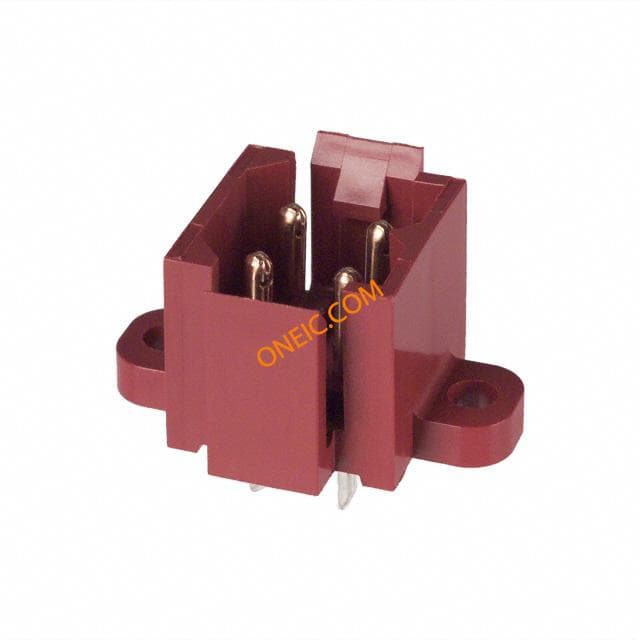

207119-3
te connectivity / amp
Conn Power PIN 4 POS 5mm Solder ST Thru-Hole 4 Terminal 1 Port Metrimate Connectors CONN HEADER PIN 4POS VERT GOLD Power to the Board METRIMATE PIN HDR 4P 126 Conn Power PIN 4 POS 5mm Solder ST Thru-Hole 4 Terminal 1 Port Product Highlights:HeaderSquare Grid Connector ConfigurationNumber of Positions = 4PinWithout Coaxial SocketSearch Keywords:Power Pin & Socket, Soft Shell, NIC, Network Interface Cards, PC Cards, cabled power, wire to board, wire to panel. wire to wire, IEC 440 V, power, pcb connectors, discrete wire, crimp, METRIMATE PIN HEADER ASSY,4P
1-66360-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Multimate Contacts CONN SOCKET 14-18AWG TIN CRIMP Type III Series Size 16 Female Circular Connector Contact, Crimp,Wire size 18 to 14AWG Pin & Socket Connectors TIN SOCKET 18-14 AWG Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketBright Tin Contact Mating Area Plating MaterialWire Range = 0.80-2.00² [18-14] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmBrass Contact Base MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT SOCKET, TIN, 1.5-2.0MM MULTIMATETypeIII+Contact,Socket,18-14AWG,Crimp,Tin Contact; female; 0.8÷2mm2; 14÷18AWG; Type III+; tinned; crimped TE Connectivity Type III 系列 母 压接端接 圆形 连接器 触芯, 18 → 14 AWG 线规格 III+ SKT,18-14,TIN ,LP
1-66399-0
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Multimate CONN SOCKET 20-24AWG TIN CRIMP Multimate III Socket Contact 24-20 AWG Pin & Socket Connectors TIN SOCKET 24-20 AWG Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SocketGold (30) over Nickel (30) Contact Mating Area Plating MaterialWire Range = 0.20-0.60² [24-20] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, SOCKET, 24-20AWG, CRIMP Contact;Socket;16;Brass;Signal;Gold(30)overNickel(30);Commercial;AMP Contact; female; 0.2÷0.6mm2; 20÷24AWG; Type III+; tinned; crimped III+ SKT,24-20,TIN ,LP

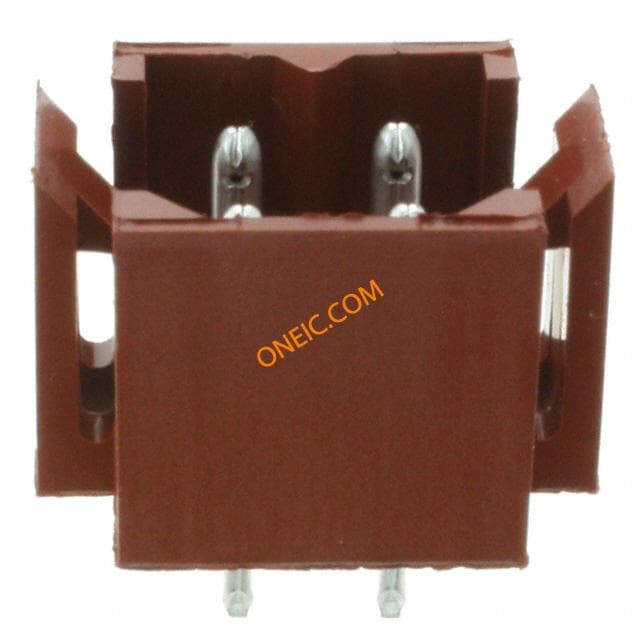

207119-2
te connectivity / amp
Conn Power PIN 4 POS 5mm Solder ST Thru-Hole 4 Terminal 1 Port Metrimate Connectors CONN HDR PIN 4 POS METRIMATE TIN Pin & Socket Connectors 4 POS SQ GRID CONN 180 METRIMATE PIN HEADER ASSY,4P

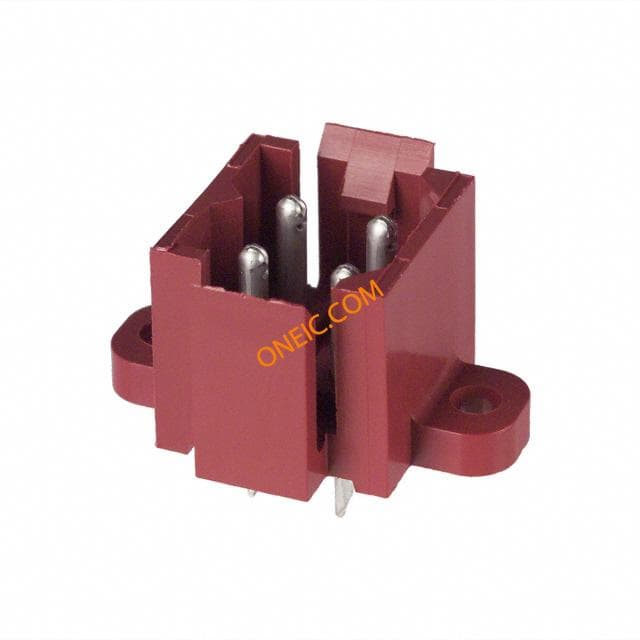

207119-8
