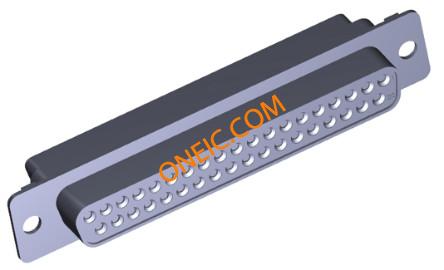

205561-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature SKT 37 POS Crimp ST Panel Mount 37 Terminal 1 Port AMPLIMITE - Aerospace & Military AMPLIMITE HDM Series Receptacle kit 37P Conn D-Subminiature SKT 37 POS Crimp ST Cable Mount 37 Terminal 1 Port Conn D-Subminiature SKT 37 POS Crimp ST Cable Mount 37 Terminal 1 Port Product Highlights:ConnectorProduct Series = 109Density = StandardTerminate To WireNumber of Positions = 37Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub Conn;D-Sub;CableSocket;37Pos;STR;109Series;Crimp;20AWG RECEPT ASSY,37 POSN,AMPLIMITE |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Non Compliant | 标准 | MIL-C-24308 |
| 抗辐射加固 | No | 资质认证 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | Not ELV/RoHS compliant |
| 其他规格 | 否 | 认证机构标志 | Yes |
电气参数
| 连接器阻抗 | No | 连接器类型 - 电压输入 | No |
机械参数
| 深度 | 16.36 mm | 高度 | 12.93 mm |
| 外形尺寸(长x宽) | 4 | 材料（通用） | Stainless Steel |
| 包装方式 | 包装 | 外壳尺寸 | 4 |
| 导线线规 | 20 | 端接方式 | Crimp |
| 触点尺寸 | 20 | 触头类型 | Crimp Snap-in |
| 非磁性 | No | 外壳表面处理 | 镉 |
| 安装类型 | Straight | 外壳镀层 | Cadmium |
| 端子尺寸 | 20 | 行程角度 | Straight |
| 连接器类型 | SKT | 接触镀层 | Gold Over Nickel |
| 安装样式 | Mounting Holes | 排数 | 2 |
| 外壳材料（壳体） | Steel | 连接器样式 | Receptacle |
| 插入件材料 | 含铅镍铜 | 触头材料 | Copper Alloy |
| 壳体材料 | Polyester | 总长度 | 69.7 mm |
| 主要材料 | D-Subminiature | 连接器 - 电缆 | 否 |
| 端接样式 | Crimp | 触点数 | 37 |
| 位数 | 37 | 衬套/护套类型 | No |
| 安装孔直径 | 3.05 | 触点材料 - 柱 | 不锈钢 |
| 接触镀层厚度 | 50 | ||
产品信息
| 备注 | Size 20 contacts supplied with connectors are loose piece. | 类型 | D-Subminiature |
| 连接器性别 | Female | 系列 | 109 |
| 密度 | Standard | 制造商全称 | AMP |
| 产品子类型 | Connector | 端口数 | 1 Port |
| 其他规格 | Wire/Cable | 设备部件号 | M24308/2-4F |
环境参数
| 工作温度 | -55C to 125C | ||
