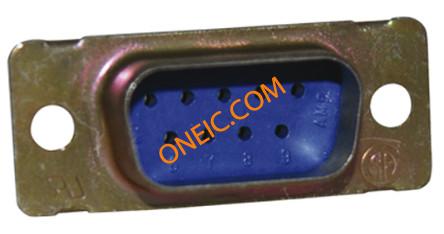

205556-2

点击放大查看

205556-2

制造商
TE Connectivity Ltd.
描述Conn D-Subminiature PIN 9 POS Crimp ST Panel Mount 9 Terminal 1 Port D-Sub Standard Connectors PLUG , STD 109 WITH PINS AMPLIMITE - Aerospace & Military AMPLIMITE Series 109 Plug + Contacts 9P Conn D-Subminiature PIN 9 POS Crimp ST Panel Mount 9 Terminal 1 Port Product Highlights:ConnectorProduct Series = 109Density = StandardTerminate To WireNumber of Positions = 9Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub CONNECTOR, PLUG, D-SUB, 9WAY Conn;D-Sub;CablePlug;9Pos;STR;109Series;Crimp;20AWG AMPLIMITE,ASY,PLUG,STD,109,1
分类
连接器解决方案D-Sub连接器D-Sub连接器
对参数有疑问？问 AI 助手

商业参数

零件号别名M24308 M24308/4-1F产品类别D-Sub Standard Connectors
标准包装数量Bulk

合规参数

RoHSNo标准MIL-C-24308
海关税号85369010资质认证No
无铅定义Not relevant for lead free processRoHS/ELV合规状态Not ELV/RoHS compliant
认证机构标志Yes

电气参数

量程（°/s）:TE CONNECTIVITY - Amplimite 109 Series连接器阻抗No
连接器类型 - 电压输入No

机械参数

重量0.02材料（通用）Stainless Steel
出线方向Straight外壳尺寸1
导线线规20端接方式Crimp
触点尺寸20触头类型Crimp Snap-in
非磁性No安装类型Panel Mount
外壳镀层Cadmium行程角度Straight
外壳涂层Cadmium安装样式Wire
排数2外壳材料（壳体）Steel
连接器样式Plug本体材料:Steel
壳体材料Steel主要材料D-Subminiature
端接样式Crimp触点数9
接触件端接:Crimp位数9
衬套/护套类型No安装孔直径3.05

产品信息

备注Size 20 contacts supplied with connectors are loose piece.类型D-Subminiature
连接器性别PIN系列109
密度Standard制造商全称AMP
产品子类型Connector其他规格Wire/Cable
应用细节TrueMil设备部件号M24308/4-1F
