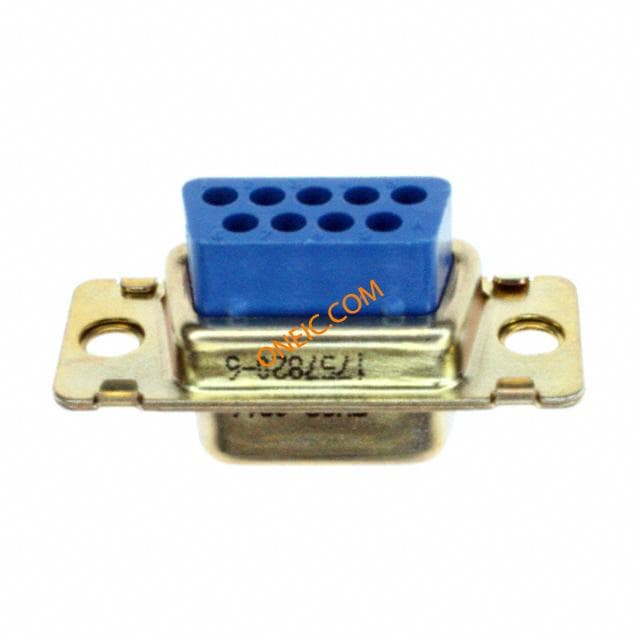

205162-1

制造商	TE Connectivity Ltd.
描述	Conn Housing PL 9 POS Crimp ST Panel Mount AMPLIMITE - Aerospace & Military Conn Housing PL 9 POS Crimp ST Panel Mount Product Highlights:ConnectorProduct Series = 109Density = StandardTerminate To WireNumber of Positions = 9Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub Conn;D-Sub;CablePlug;9Pos;STR;109Series;Crimp;20AWG AMPLIMITE,ASY,PLUG,STD,109,1
分类	连接器解决方案重载连接器重载连接器

对参数有疑问？问 AI 助手

商业参数

标准包装数量

Bulk

合规参数

标准	MIL-C-24308	资质认证	No
无铅定义	Wave solder capable to 240Â°C / Wave solder capable to 260Â°C / Wave solder capabl	RoHS/ELV合规状态	Not ELV/RoHS compliant
其他规格	否	认证机构标志	Yes

电气参数

连接器阻抗

连接器类型 - 电压输入

机械参数

深度	16.26 mm	高度	12.55 mm
外形尺寸(长x宽)	1	材料（通用）	Stainless Steel
包装方式	纸箱	外壳尺寸	1
导线线规	20	端接方式	Crimp
触点尺寸	20	触头类型	Crimp Snap-in
非磁性	No	外壳表面处理	镉
安装类型	Straight	外壳镀层	Cadmium
端子尺寸	20	行程角度	Straight
连接器类型	插头	安装样式	Mounting Holes
排数	2	外壳材料（壳体）	Steel
连接器样式	Plug	壳体材料	Steel
总长度	30.81 mm	主要材料	D-Subminiature
连接器 - 电缆	否	端接样式	Crimp
第一触头极性	Pin	触点数	9
位数	9	衬套/护套类型	No
安装孔直径	3.05	触点材料 - 柱	不锈钢

产品信息

类型	Housing	连接器性别	PL
系列	109	密度	Standard
制造商全称	AMP	产品子类型	Connector
其他规格	Wire/Cable	设备部件号	M24308/4-259F

相关型号

1218408-6

te connectivity / amp
