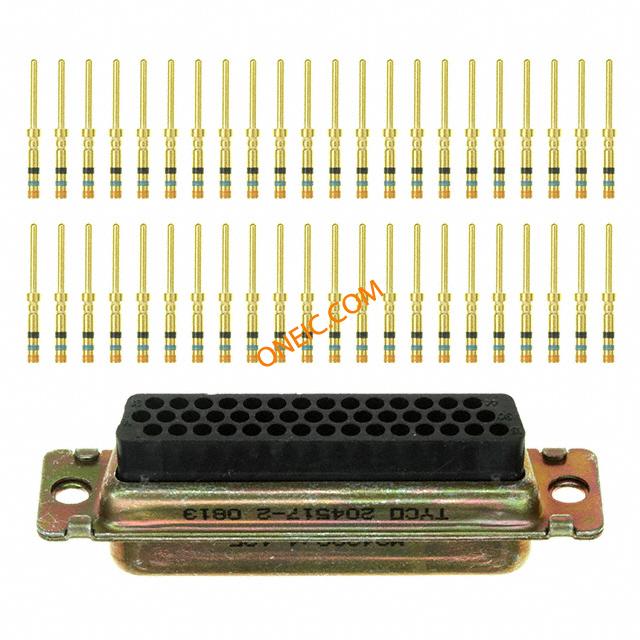

点击放大查看
204517-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn High Density D-Sub PIN 44 POS Crimp ST Cable Mount 44 Terminal 1 Port D-Sub High Density Connectors PLUG 44 POS AMPLIMITE - Aerospace & Military Conn High Density D-Sub PIN 44 POS Crimp ST Cable Mount 44 Terminal 1 Port Product Highlights:ConnectorProduct Series = 90Density = HighTerminate To WireNumber of Positions = 44Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub CONN D-SUB PLUG 44 POS CRIMP Conn;D-Sub;CablePlug;44Pos;STR;90Series;Crimp;22AWG AMPLIMITE,ASY,PLUG,STD,90,3 |
| 分类 |
商业参数
| 零件号别名 | M24308 M24308/4-13F | 产品类别 | D-Sub High Density Connectors |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | No | 标准 | MIL-C-24308 |
| 抗辐射加固 | No | 资质认证 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | Not ELV/RoHS compliant |
| 其他规格 | 否 | 认证机构标志 | Yes |
电气参数
| 连接器阻抗 | No | 最大额定电流 | 7.5A |
| 连接器类型 - 电压输入 | No | ||
机械参数
| 深度 | 16.81 mm | 高度 | 12.92 mm |
| 外形尺寸(长x宽) | 3 | 材料（通用） | Stainless Steel |
| 包装方式 | Bulk | 外壳尺寸 | 3 |
| 导线线规 | 22 | 端接方式 | Crimp |
| 触点尺寸 | 22 | 触头类型 | Crimp Snap-in |
| 非磁性 | No | 外壳表面处理 | 镉 |
| 安装类型 | Straight | 外壳镀层 | Cadmium |
| 端子尺寸 | 22 | 行程角度 | Straight |
| 连接器类型 | PIN | 接触镀层 | Gold |
| 法兰特征 | Housing/Shell (Unthreaded) | 安装样式 | Wire |
| 排数 | 3 | 外壳材料（壳体） | Steel |
| 连接器样式 | Plug | 插入件材料 | 铜合金 |
| 触头材料 | Copper Alloy | 壳体材料 | 钢 |
| 总长度 | 53.41 mm | 主要材料 | D-Subminiature |
| 连接器 - 电缆 | 否 | 端接样式 | Crimp |
| 触点数 | 44 | 位数 | 44 |
| 衬套/护套类型 | No | 安装孔直径 | 3.05 |
| 外壳材料及表面处理 | Steel, Cadmium Plated | 触点材料 - 柱 | 不锈钢 |
| 接触镀层厚度 | 50 | 外壳尺寸，连接器布局 | 3 (DB, B) High Density |
产品信息
| 备注 | "F" is stamped on connectors following M24308 part number as required. "F" desig | 类型 | High Density D-Sub |
| 连接器性别 | Male | 系列 | 90 |
| 密度 | High | 制造商全称 | AMP |
| 产品子类型 | Connector | 端口数 | 1 Port |
| 其他规格 | Wire/Cable | 设备部件号 | M24308/4-13F |
环境参数
| 工作温度 | -55C to 125C | ||
