点击放大查看

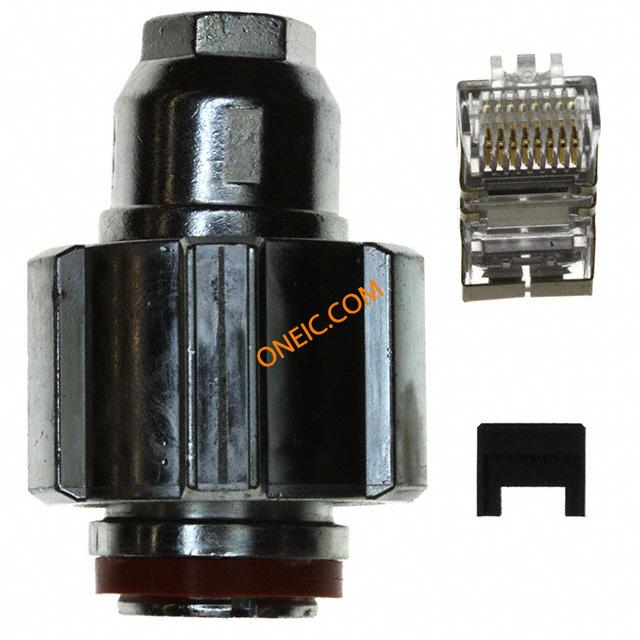

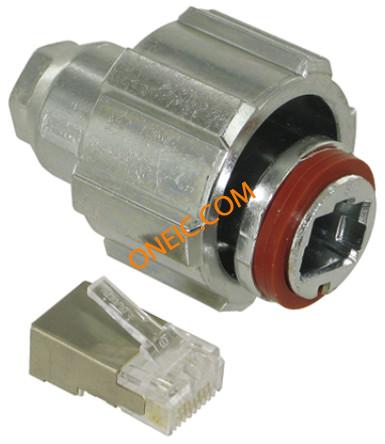

2008614-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn RJ-45 PL 8 POS ST Cable Mount 8 Terminal 1 Port Cat 5e Ethernet & Telecom Connectors Plug Kit Solid Shielded CONN MOD PLUG 8P8C SHIELDED Connector, Plug Kit, IP67 ODVA Compliant RJ45 shielded circular plug, solid wire Modular Connectors / Ethernet Connectors Plug Kit Solid Shielded 2008614-2 Conn RJ-45 PL 8 POS ST Cable Mount 8 Terminal 1 Port Cat 5e Search Keywords:Environmental sealing (IP67 rated), intermateable, unshielded, modular plugs and jacks, input/output, box to box, sealed, RJ-45 Connector,PlugKit,IP67,ODVACompliant,MetalShell,SolidWire,Shielded Shielded Plug Kit,8P Strnd Wire |
| 分类 |
商业参数
| 产品类别 | Modular Connectors / Ethernet Connectors | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 接口 | 开放设备网制造商协会 (ODVA) | ||
机械参数
| 颜色 | Silver | 长度 | 2.319" (58.90mm) |
| 包装方式 | Bulk | 屏蔽 | Shielded |
| 电缆类型 | Round Cable, Solid Wires | 导线线规 | .12 – .2, .129 – .205 |
| 端接方式 | IDC | 安装类型 | Cable Mount |
| 外壳镀层 | Silicone Rubber | 连接器类型 | 电线和电缆 |
| 接触镀层 | Gold | 安装样式 | Wire |
| 插入件材料 | 磷青铜 | 屏蔽材料 | Copper Alloy |
| 触头材料 | Phosphor Bronze | 壳体材料 | Zinc |
| 包装数量 | 1 | 主要材料 | ConnectorKit |
| 触点数 | 8 | 螺纹/螺钉/孔尺寸 | 锌 |
产品信息
| 备注 | 与 5e 类电缆搭配使用。, 仅用于实心电缆。 | 类型 | RJ-45 |
| 等级 | 工业以太网 | 连接器性别 | PL |
| 产品特性 | Circular Bayonet Coupling | 套件类型 | Connector Kit |
| USOC 编码 | RJ45 | 预装 | 是 |
| 产品子类型 | 圆形 | 图案编号 | RJ45 |
| 端口数 | 1 | 性能类别 | Cat 5e |
| 位置/触点数量 | 8p8c (RJ45, Ethernet) | ||
环境参数
| 额定等级 | Cat5e | 防护等级 | IP67 - Dust Tight, Waterproof |
| 工作温度 | - 40 C to + 85 C | ||
相关型号
3-231652-0
te connectivity / amp
Modular Plug Hand Tool Crimpers CATEGORY 5 HAND TOOL Unspecified Tools & Accessories CATEGORY 5 HAND TOOL TOOL 8POS CRIMP MOD PLUGS CAT 5 Crimper,Ratchet,ModularPlug Crimper;Ratchet;ModularPlug;8-PositionHighPerformance;Cat5;1-853400-0Die Crimp tool, 3-231652-0, TE Connectivity
2008618-1
te connectivity / amp
Connector Accessories RJ-45 Protective Cover Kit with Chain Straight Zinc Chromate Modular Connectors / Ethernet Connectors Receptacle Cap Industrial Communication Products CONN ACCY CAP SILVER RJ45 circular receptacle closure cap RJ45 circular plug cordset closure cap Connector Accessories RJ-45 Protective Cover Kit with Chain Straight Zinc Chromate Product Highlights:AccessoryAccessory Type = Closure CapProduct Style = CircularNot ShieldedClosure Cap Type = Plug CordsetSearch Keywords:Environmental sealing (IP67 rated), intermateable, unshielded, modular plugs and jacks, input/output, box to box, sealed, RJ-45 PROTECTIVE COVER KIT, ZINC ProtectiveCoverKit,Receptacle,MetalShell,IP67 Protective Cover Kit

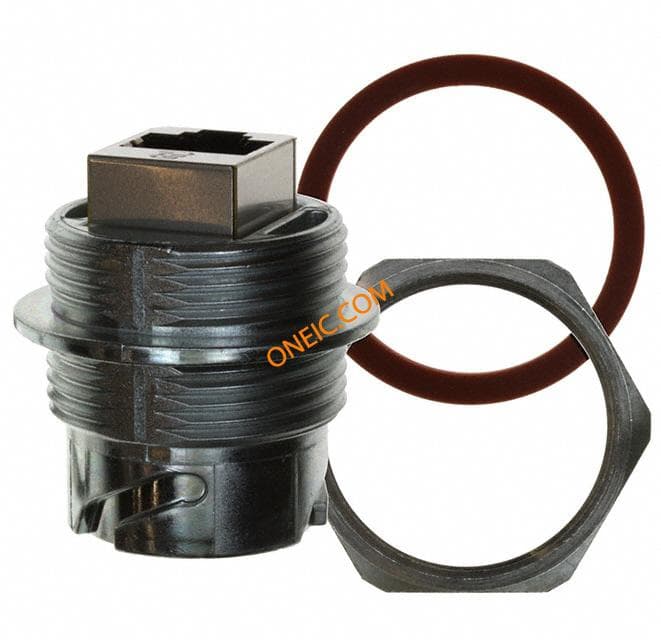

2008615-2
