点击放大查看

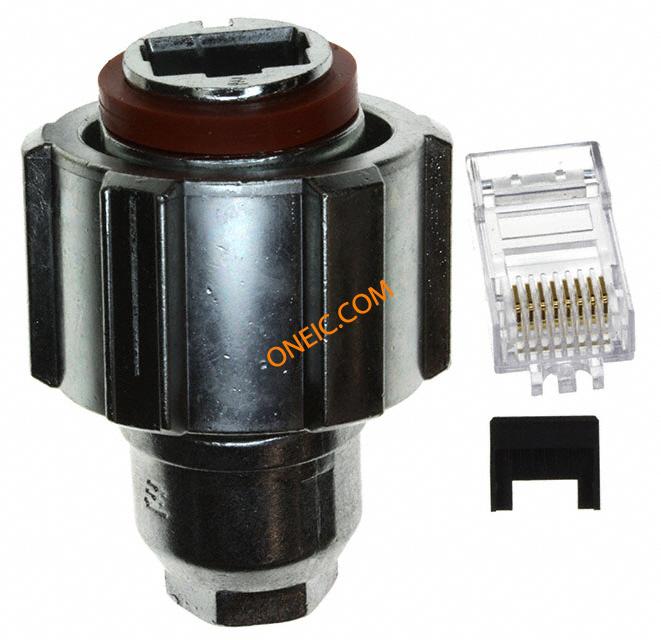

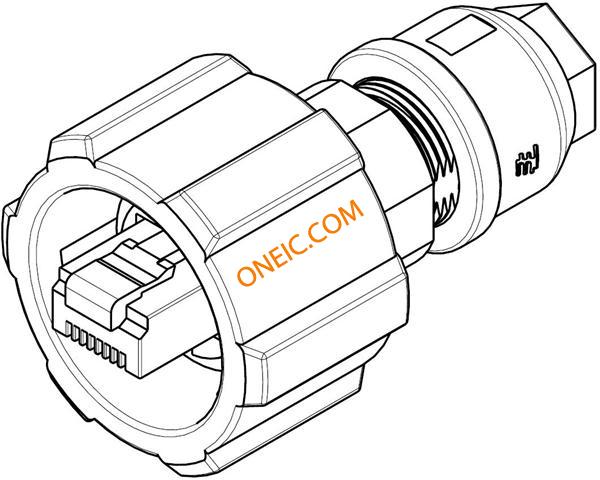

2008611-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn RJ-45 PL 8 POS ST Cable Mount 8 Terminal 1 Port Cat 5e Ethernet & Telecom Connectors Plug Kit Stranded Unshielded CONN MOD PLUG 8P8C UNSHIELDED Connector, Plug, Solid, RJ45, Unshielded Modular Connectors / Ethernet Connectors Plug Kit Stranded Unshielded Conn RJ-45 PL 8 POS ST Cable Mount 8 Terminal 1 Port Cat 5e Search Keywords:Environmental sealing (IP67 rated), intermateable, unshielded, modular plugs and jacks, input/output, box to box, sealed, RJ-45 Connector,PlugKit,IP67,ODVACompliant,MetalShell,StrandedWire UNSHIELDED PLUG KIT,8P STRND W |
| 分类 |
商业参数
| 产品类别 | Modular Connectors / Ethernet Connectors | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 接口 | 开放设备网制造商协会 (ODVA) | ||
机械参数
| 颜色 | Silver | 深度 | 35mm |
| 长度 | 2.358" (59.90mm) | 包装方式 | Bulk |
| 屏蔽 | Unshielded | 电缆类型 | Round Cable, Stranded Wires |
| 方向 | Straight | 端接方式 | IDC |
| 安装类型 | Cable Mount | 外壳镀层 | Silicone Rubber |
| 线径 | .2 mm² [ 24 AWG ] | 连接器类型 | 插头 |
| 接触镀层 | Gold | 安装样式 | Wire |
| 插入件材料 | 磷青铜 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Zinc | 包装数量 | 1 |
| 主要材料 | ConnectorKit | 触点数 | 8 |
| 螺纹/螺钉/孔尺寸 | 锌 | 第一连接器安装类型 | Panel |
产品信息
| 备注 | 与 5e 类电缆搭配使用。, 仅用于绞线。 | 类型 | RJ-45 |
| 等级 | 工业以太网 | 连接器性别 | PL |
| 产品特性 | Circular Bayonet Coupling | USOC 编码 | RJ45 |
| 预装 | 是 | 产品子类型 | 圆形 |
| 图案编号 | RJ45 | 端口数 | 1 |
| 性能类别 | Cat 5e | 位置/触点数量 | 8p8c (RJ45, Ethernet) |
环境参数
| 额定等级 | Cat5e | 防护等级 | IP67 - Dust Tight, Waterproof |
| 工作温度 | - 40 C to + 85 C | ||
相关型号
3-231652-0
te connectivity / amp
Modular Plug Hand Tool Crimpers CATEGORY 5 HAND TOOL Unspecified Tools & Accessories CATEGORY 5 HAND TOOL TOOL 8POS CRIMP MOD PLUGS CAT 5 Crimper,Ratchet,ModularPlug Crimper;Ratchet;ModularPlug;8-PositionHighPerformance;Cat5;1-853400-0Die Crimp tool, 3-231652-0, TE Connectivity
2008618-1
te connectivity / amp
Connector Accessories RJ-45 Protective Cover Kit with Chain Straight Zinc Chromate Modular Connectors / Ethernet Connectors Receptacle Cap Industrial Communication Products CONN ACCY CAP SILVER RJ45 circular receptacle closure cap RJ45 circular plug cordset closure cap Connector Accessories RJ-45 Protective Cover Kit with Chain Straight Zinc Chromate Product Highlights:AccessoryAccessory Type = Closure CapProduct Style = CircularNot ShieldedClosure Cap Type = Plug CordsetSearch Keywords:Environmental sealing (IP67 rated), intermateable, unshielded, modular plugs and jacks, input/output, box to box, sealed, RJ-45 PROTECTIVE COVER KIT, ZINC ProtectiveCoverKit,Receptacle,MetalShell,IP67 Protective Cover Kit

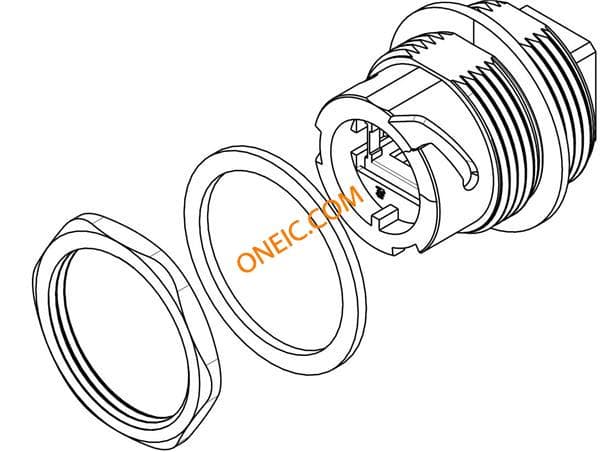

2008615-1
