首页产品分类连接器解决方案压接与焊接端子/接头压接端子（通用）2-87631-1

点击放大查看

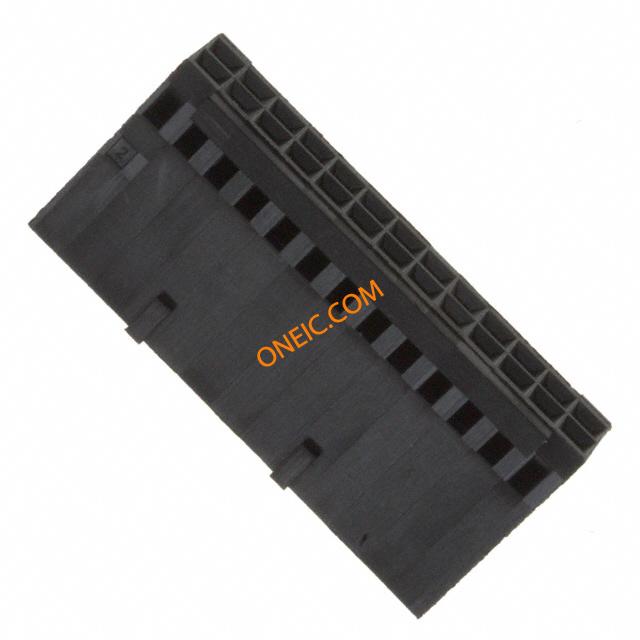

2-87631-1

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 26 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 26POS .100 POL DUAL Housing FH 26way 2row Rec 2.54mm AmpModu Headers & Wire Housings MOD IV CRIMP SNAPIN Conn Housing RCP 26 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 26Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 26POS, 2.54MM RECEPTACLE,AMPMODU,MODIV,26POSITION,.100IN,DUALROW,LATCHED TE Connectivity AMPMODU Mod IV 系列 2 行 2.54mm 节距 26 路直母电缆安装 PCB 壳体 26 MODIV HSG COMP DR .100 POL
分类	连接器解决方案压接与焊接端子/接头压接端子（通用）

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Bulk	工厂包装数量	1

合规参数

RoHS

Lead free / RoHS Compliant

海关税号

85366910

电气参数

量程（°/s）	:TE - AMPMODU Mod IV Series	额定电压	250 V
开关功能	Detent Latching	最大额定电流	3 A

机械参数

颜色	Black	深度	6.1mm
间距	2.54 mm	宽度	15.24mm
长度	33.02mm	重量	0.002
包装方式	Bulk	导线线规	20-30 AWG
排间距	0.100" (2.54mm)	触头类型	Female Socket
安装类型	Straight	连接器类型	Receptacle
接触镀层	:-	紧固类型	Locking Ramp
排数	2	触头材料	Phosphor Bronze
壳体材料	Nylon	主要材料	InterconnectSystem
端接样式	Crimp	第一触头极性	Socket (Female)
触点数	26	接触件端接	Crimp
位数	26

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	RCP	系列	Mod IV
制造商全称	AMPMODU/MODIVSeries	产品子类型	Receptacles / Sockets - Housings
应用细节	Board to Board	适用产品/相关产品	PCB Connector

环境参数

工作温度

- 65 C to + 105 C

文档与媒体

PDF 文档

580372.pdf

在线文档

2-87631-1?RQPN=2-87631-1
