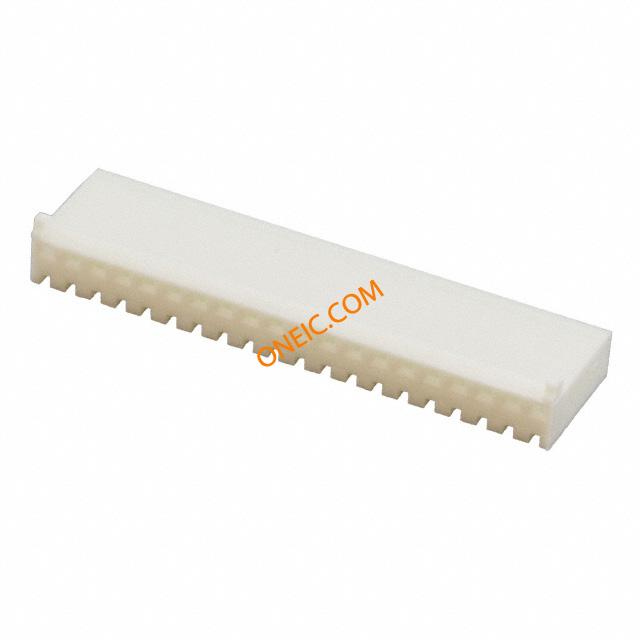

2-770602-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 20 POS 2.54mm Crimp ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 20POS CRIMP CST-100 CST-100 Receptacle Housing 2.54mm 20P Headers & Wire Housings 20P RECPT HSG WHT CST-100 Conn Housing RCP 20 POS 2.54mm Crimp ST Cable Mount Product Highlights:Housing20 PositionsHousing Type = ReceptacleCST-100 Product LineWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP Connector;Nylon;Receptacle;20;White;Crimp;180deg;0.1in.;UL94V-0 |
| 分类 |
商业参数
| 其他名称 | 27706020 | 零件号别名 | 512-3966 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | RoHSCompliant,ELVCompliant |
| 无铅定义 | Not relevant for lead free process | 认证机构 | CSA,UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
机械参数
| 颜色 | Natural | 间距 | 2.54 mm |
| 长度 | 2.02in | 包装方式 | Bulk |
| 遮蔽类型 | No | 出线方向 | 180° |
| 端接方式 | Crimp | 触头类型 | Female Socket |
| 第二连接器 | Without | 外壳颜色 | White |
| 安装类型 | Straight | 行程角度 | Straight° |
| 连接器类型 | Crimp | 紧固类型 | Locking Ramp |
| 排数 | 1 | 连接器用途 | Receptacle |
| 壳体材料 | Nylon | 总长度 | 2.02" |
| 安装特性 | Without | 面板安装类型 | Without |
| 主要材料 | InterconnectSystem | 导线端接方式 | Crimp |
| 插针孔直径 | 0.1" | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 配接方向 | Without |
| 触点数 | 20 | 接触件端接 | Crimp |
| 位数 | 20 | 中心触点表面处理 | 0.1 |
| 典型触点布局 | 2.54 [0.100] | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | CST-100 |
| 制造商全称 | AMP | 产品子类型 | CST-100 Housings |
| 应用细节 | Wire-to-Board | ||
环境参数
| 工作温度 | +105°C | ||
相关型号
770601-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip MTA, CST, CST-100 II and SL Contacts CONN SOCKET 22-26AWG TIN CRIMP Contact female,crimp,26-22AWG,CST-100 Headers & Wire Housings CST-100 CRIMP TERM Reel of 5500 Contact SKT Crimp ST Cable Mount Strip Product Highlights:CST-100 ContactsWire Termination Type = CrimpPre-Tin Contact Mating Area Plating MaterialWire Size = 0.12-0.4² [26-22] mm² [AWG]Used For CST-100 HousingsSearch Keywords:.100 Centerline, 2-28 positions, 5 A, 250 VAC, 2-24 positions, 7 A, 600 VAC, Wire-to-Board, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP CONTACT, SOCKET, 26-22AWG CONTACT, CRIMP, SOCKET, 26-22AWG, REEL CST-100CONTACTSTRIPSN Contact; female; 22÷26AWG; CST-100

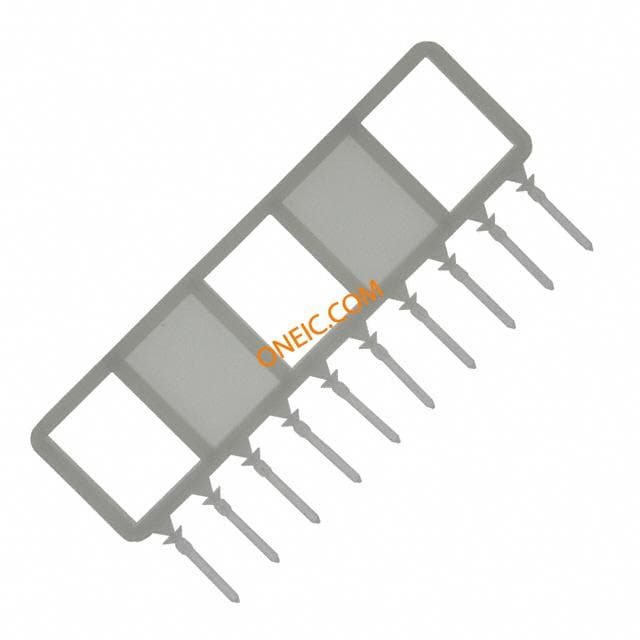

641994-1
