点击放大查看
2-640251-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 22 POS 3.96mm Crimp ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers 22P SL156 HSG W/O LCK RAMP Headers & Wire Housings 22P SL156 HSG W/O LCK RAMP Conn Housing RCP 22 POS 3.96mm Crimp ST Cable Mount Product Highlights:SL-156 HousingsNumber of Positions = 22Mating Type = ReceptacleWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP |
| 分类 |
商业参数
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 已获认证 |
| 无铅定义 | Not relevant for lead free process | UL档案号 | E28476 |
| CSA档案号 | LR 7189 | 标准编号 | CSA, UL |
| CSA认证 | Certified | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 供电电压 | 250 VAC | 连接器阻抗 | 压接 |
| 最大额定电流 | 6.5 | ||
机械参数
| 颜色 | Natural | 间距 | 3.96 mm |
| 包装方式 | Bulk | 遮蔽类型 | No |
| 壳体颜色 | 自然 | 出线方向 | 180° |
| 导线线规 | 18-24 AWG | 触头类型 | Female Socket |
| 第二连接器 | Without | 外壳颜色 | White |
| 安装类型 | Straight | 连接器类型 | Crimp |
| 安装样式 | 不带 | 排数 | 1 |
| 外壳材料（壳体） | 标准 | 连接器用途 | Receptacle |
| 高度（英寸） | 6.35 | 壳体材料 | Nylon |
| 总长度 | 3.433 | 安装特性 | Without |
| 包装数量 | 1 | 面板安装类型 | Without |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 配接方向 | Without | 触点数 | 22 |
| 端接表面处理 | 不带 | 接触件端接 | Crimp |
| 绝缘直径 | Standard | 位数 | 22 |
| 兼容外壳尺寸（如TM-700等） | SL .156 端子 | 安装孔直径 | 不带 |
| 典型触点布局 | 3.96 [0.156] | 静电放电屏蔽 | 不带 |
产品信息
| 备注 | Recommended contact: Part No. 350980 and Part No. 770476 | 类型 | Housing |
| 连接器性别 | RCP | 系列 | SL-156 |
| 可密封 | 否 | 制造商全称 | AMP |
| 产品子类型 | SL-156 Housings | 应用细节 | Wire-to-Board |
环境参数
| 工作温度 | -55 – 105 °C [ -67 – 221 °F ] | ||
相关型号
3-640252-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip MTA, CST, CST-100 II and SL Contacts CONN SOCKET 18-24AWG SL156 TIN Contact 18-24awg brass H/F Strip Headers & Wire Housings SKT 24-18 BR/SN Reel of 7000 Contact SKT Crimp ST Cable Mount Strip Product Highlights:SL-156 ContactsWire Termination Type = CrimpBright Tin Contact Mating Area Plating MaterialWire Size = 0.9-0.2² [18-24] mm² [AWG]Used For SL-156 HousingsSearch Keywords:.100 Centerline, 2-28 positions, 5 A, 250 VAC, 2-24 positions, 7 A, 600 VAC, Wire-to-Board, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP CONTACT, FEMALE, 24AWG CONTACT, CRIMP, SOCKET, 24-18AWG, REEL CONTACT,SL-156,18-24AWG,CRIMP TE Connectivity SL-156 系列 母 压接接线端子, 压接, 镀锡镀镍触点 045 POST CONT 0126PTPBR
640252-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip MTA, CST, CST-100 II and SL Contacts CONN SOCKET 18-24AWG SL156 TIN Headers & Wire Housings RCPT CONTACT 18-24G Contact SKT Crimp ST Cable Mount Strip Product Highlights:SL-156 ContactsWire Termination Type = CrimpPre-Tin Contact Mating Area Plating MaterialWire Size = 0.9-0.2² [18-24] mm² [AWG]Used For SL-156 HousingsSearch Keywords:.100 Centerline, 2-28 positions, 5 A, 250 VAC, 2-24 positions, 7 A, 600 VAC, Wire-to-Board, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP CONTACT, CRIMP, RECEPTACLE, 24-18AWG CONTACT, CRIMP, SOCKET, 24-18AWG, REEL CONTACT,RECEPTACLE,SL-156,18-24AWG,CRIMP SL-156 RECEPTACLE
640707-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece MTA, CST, CST-100 II and SL Contacts CONN SOCKET 18-24AWG SL156 TIN Contact Crimp Receptacle 24-18AWG SL-156 Headers & Wire Housings CRIMP CONTACT SL156 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SL-156 ContactsWire Termination Type = CrimpBright Tin Contact Mating Area Plating MaterialWire Size = 0.9-0.2² [18-24] mm² [AWG]Used For SL-156 HousingsSearch Keywords:.100 Centerline, 2-28 positions, 5 A, 250 VAC, 2-24 positions, 7 A, 600 VAC, Wire-to-Board, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP SL-156POSTCONNLP,SL156RECEPTACLELP TE Connectivity SL-156 系列 母 压接接线端子, 压接, 镀锡触点 SL 156 RECEPTACLE LP
770476-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip MTA, CST, CST-100 II and SL Contacts CONN SOCKET 18-24AWG SL156 TIN Contact SKT Crimp ST Cable Mount Strip Product Highlights:SL-156 ContactsWire Termination Type = CrimpBright Tin Contact Mating Area Plating MaterialWire Size = 0.9-0.2² [18-24] mm² [AWG]Used For SL-156 HousingsSearch Keywords:.100 Centerline, 2-28 positions, 5 A, 250 VAC, 2-24 positions, 7 A, 600 VAC, Wire-to-Board, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP SL-156POSTCONNST,SL156RECPT,SNNI/PHBZ SL156 RECPT, SNNI/PHBZ
3-770476-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip MTA, CST, CST-100 II and SL Contacts CONN SOCKET 18-24AWG SL156 TIN Contact 18-24awg phosphor D/W Strip Headers & Wire Housings SKT 24-18 PHBR/SN Reel of 5500 Contact SKT Crimp ST Cable Mount Strip Product Highlights:SL-156 ContactsWire Termination Type = CrimpBright Tin Contact Mating Area Plating MaterialWire Size = 0.9-0.2² [18-24] mm² [AWG]Used For SL-156 HousingsSearch Keywords:.100 Centerline, 2-28 positions, 5 A, 250 VAC, 2-24 positions, 7 A, 600 VAC, Wire-to-Board, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP CONTACT, MTA, 24-18AWG CONTACT,RECEPTACLE,SL-156,18-24AWG,CRIMP Contact; female; 0.2÷0.9mm2; SL-156; tinned; crimped; tape; 3.96mm TE Connectivity SL-156 系列 母 压接接线端子, 压接, 镀锡镀镍触点 SL156 RECPT, SNNI/PHBZ
770476-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip MTA, CST, CST-100 II and SL Contacts CONN SOCKET 18-24AWG SL156 GOLD Contact female 0.2-0.9mm² SL-156 Headers & Wire Housings SOCKET 24-18 AWG Reel of 5500 Contact SKT Crimp ST Cable Mount Strip Product Highlights:SL-156 ContactsWire Termination Type = CrimpGold (30) over Nickel Contact Mating Area Plating MaterialWire Size = 0.9-0.2² [18-24] mm² [AWG]Used For SL-156 HousingsSearch Keywords:.100 Centerline, 2-28 positions, 5 A, 250 VAC, 2-24 positions, 7 A, 600 VAC, Wire-to-Board, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP CONTACT, RECEPTACLE, 24-18AWG, CRIMP CONTACT,RECEPTACLE,SL-156,18-24AWG,CRIMP TE Connectivity SL-156 系列 母 压接接线端子, 压接, 镀金镀镍触点 SL156 RECPT, AUNI/PHBZ
350980-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Heavy Duty Power Connectors CRIMP CONTACT SL 156 MTA, CST, CST-100 II and SL Contacts CONN SOCKET 18-24AWG SL156 TIN Conn Contact F 1 POS Crimp ST Cable Mount 1Terminal 1Port Strip Contact SKT Crimp ST Cable Mount Strip Product Highlights:SL-156 ContactsWire Termination Type = CrimpBright Tin Contact Mating Area Plating MaterialWire Size = 0.9-0.2² [18-24] mm² [AWG]Used For SL-156 HousingsSearch Keywords:.100 Centerline, 2-28 positions, 5 A, 250 VAC, 2-24 positions, 7 A, 600 VAC, Wire-to-Board, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP SL156 RECEPTACLE
350980-4
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece MTA, CST, CST-100 II and SL Contacts CONN TERM MALE 18-24AWG GOLD Headers & Wire Housings .045 POST CONTACT 15AU Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SL-156 ContactsWire Termination Type = CrimpGold (15) over Nickel Contact Mating Area Plating MaterialWire Size = 0.9-0.2² [18-24] mm² [AWG]Used For SL-156 HousingsSearch Keywords:.100 Centerline, 2-28 positions, 5 A, 250 VAC, 2-24 positions, 7 A, 600 VAC, Wire-to-Board, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP .045 POST CONTACT 15AU
641550-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip MTA, CST, CST-100 II and SL Contacts CONTACT CRIMP 30-24AWG TIN Headers & Wire Housings SL156 RECPT PTPBR 641550-1 Contact SKT Crimp ST Cable Mount Strip Product Highlights:SL-156 ContactsWire Termination Type = CrimpPre-Tin Contact Mating Area Plating MaterialWire Size = 0.05-0.2mm² [30-24] mm² [AWG]Used For SL-156 HousingsSearch Keywords:.100 Centerline, 2-28 positions, 5 A, 250 VAC, 2-24 positions, 7 A, 600 VAC, Wire-to-Board, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP SL156 RECPT PTPBR
3-770522-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece SL-156 CST-100 and EP Connectors CONN SOCKET 18-24AWG SL156 TIN Headers & Wire Housings CRIMP CONTACT BULK 18-24 AWG Contact SKT Crimp ST Cable Mount Loose Piece Search Keywords:.100 Centerline, 2-28 positions, 5 A, 250 VAC, 2-24 positions, 7 A, 600 VAC, Wire-to-Board, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP SL-156Contact,24-18AWG,HighUnmatingForce,Crimp SL156 HOODED CONTACT, LP LF
3-640707-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece MTA, CST, CST-100 II and SL Contacts CONN SOCKET 18-24AWG SL156 TIN Contact Female Crimp 24-18AWG SL-156 Headers & Wire Housings SKT 24-18 BR/SN Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SL-156 ContactsWire Termination Type = CrimpBright Tin Contact Mating Area Plating MaterialWire Size = 0.9-0.2² [18-24] mm² [AWG]Used For SL-156 HousingsSearch Keywords:.100 Centerline, 2-28 positions, 5 A, 250 VAC, 2-24 positions, 7 A, 600 VAC, Wire-to-Board, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP CONTACT, CRIMP, 18-24 AWG MTAConnectorContact;SL-156Contacts;Brass;BrightTin;18to24AWG;Crimp TE Connectivity SL-156 系列 母 压接接线端子, 压接, 镀锡触点 SL 156 RECEPTACLE LP
640706-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece Heavy Duty Power Connectors CRIMP CONTACT 18-24G MTA, CST, CST-100 II and SL Contacts CONN SOCKET 18-24AWG SL156 TIN Contact Crimp Receptacle 24-18AWG SL-156 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:Contact Type = SL-156 ContactsWire Termination Type = CrimpPre-Tin Contact Plating, Mating Area, MaterialWire Size = 0.9-0.2² [18-24] mm² [AWG]Used For SL-156 HousingsSearch Keywords:.100 Centerline, 2-28 positions, 5 A, 250 VAC, 2-24 positions, 7 A, 600 VAC, Wire-to-Board, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP CONTACT, RECEPTACLE, 24-18AWG, CRIMP MTAConnectorContact;SL-156Contacts;Brass;Pre-Tin;18to24AWG;0.11in. Contact; female; 0.2÷0.9mm2; SL-156; tinned; crimped; in bulk TE Connectivity SL-156 系列 母 压接接线端子, 压接, 镀锡触点 CONTACT .045 POST PT BRASS
2-644750-2
te connectivity / amp
Conn Unshrouded Header HDR 22 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 22POS VERT .156 TIN Headers & Wire Housings 22P HDR STR RND SN MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:Header22 PositionsPreloadedHeader Gender = PlugContact Gender = PinSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 22P MTA156 HDR ASSY STR RND SN
640706-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Loose Piece MTA, CST, CST-100 II and SL Contacts CONN SOCKET 18-24AWG SL156 TIN Headers & Wire Housings CONTACT 18-24 AWG SL156 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:SL-156 ContactsWire Termination Type = CrimpBright Tin Contact Mating Area Plating MaterialWire Size = 0.9-0.2² [18-24] mm² [AWG]Used For SL-156 HousingsSearch Keywords:.100 Centerline, 2-28 positions, 5 A, 250 VAC, 2-24 positions, 7 A, 600 VAC, Wire-to-Board, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP SL-156POSTCONNLP,SL156CONTACTLP SL 156 CONTACT LP

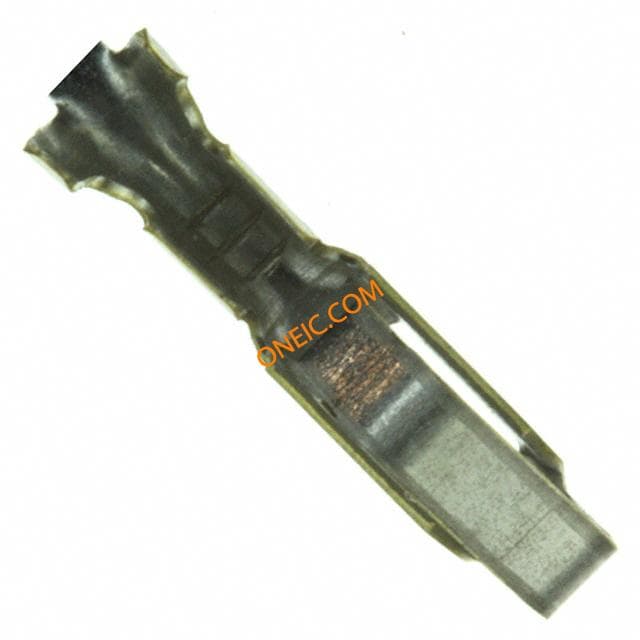

350980-2
