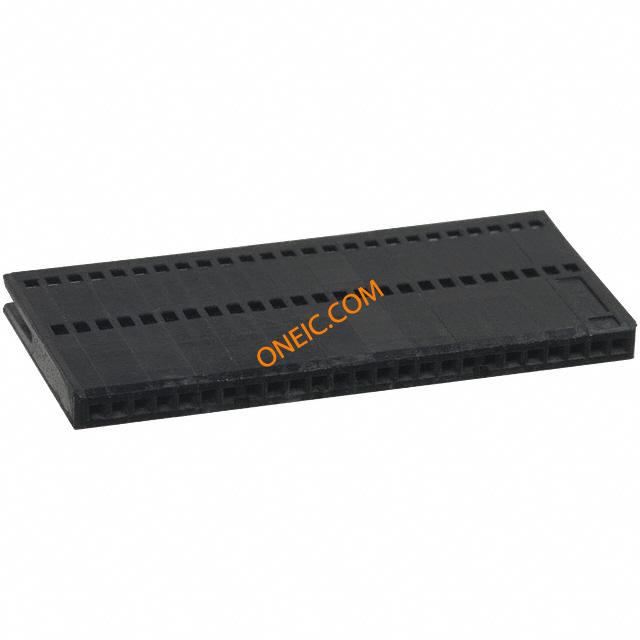

2-487544-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 25 POS 1.27mm Crimp ST Cable Mount .050 X .100 AMPMODU System 50 CONN RECEPT 25POS .050 SINGLE FFC & FPC Connectors 25 HSG RCPT 050CL SR Conn Housing RCP 25 POS 1.27mm Crimp ST Cable Mount Product Highlights:HousingNumber of Positions = 25Number of Rows = SingleWith Mating Connector LockNormal Insertion ForceSearch Keywords:dual beam contact, wire to wire, IDC, latching, signal, pcb connectors, AMPMODU 025 HOUSING FFC RCPT 050CL SR |
| 分类 |
商业参数
| 其他名称 | 24875442 | 产品类别 | FFC & FPC Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | 100V | 供电电压 | 100 VAC |
| 输入电阻 | 5000 | 钳位电压 | 300 |
| 连接器阻抗 | 制动器窗口 | 击穿电压 | 300 |
| 最大额定电流 | 1.5A | 绝缘电阻 | 5,000 |
机械参数
| 颜色 | Black | 间距 | 1.27 mm |
| 锁定类型 | 带有 | 包装方式 | Bulk |
| 壳体颜色 | 黑色 | 电缆类型 | Flexible Flat Conductor Cable |
| 第二连接器 | With | 边缘接触 | No |
| 外壳颜色 | Black | 安装类型 | Straight |
| 连接器类型 | Housing for Female Contacts | 排数 | 1 |
| 连接器用途 | Receptacle | 插入力 | Normal |
| 锁定特性 | Detent Windows | 壳体材料 | Thermoplastic |
| 包装数量 | 1 | 面板安装类型 | 不带 |
| 端接样式 | 插座 | FFC/FCB厚度 | 0.05-0.08mm |
| 触点数 | 25 | 位数 | 25 |
| 安装孔直径 | 不带 | 中心触点材料 | 1.27 [0.050] |
产品信息
| 备注 | Note 1: Plain housings are side-to-side stackable on either straight or right-a | 类型 | Housing |
| 连接器性别 | RCP | 产品特性 | Detent Lock |
| 产品子类型 | Housing | ||
环境参数
| 温度范围 | -55 â +105 | 工作温度 | -55°C ~ 105°C |
文档与媒体
相关型号
6-104178-3
te connectivity / amp
Conn Unshrouded Header HDR 25 POS 1.27mm Solder ST Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN HEADER .050 25POS VERT T/H Headers & Wire Housings 25 SYS 50 HDR SRST UNSHRD SN .050 X .100 AMPMODU System 50 Product Highlights:Header AssemblyNumber of Positions = 25Number of Rows = SingleNot ShroudedVertical Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU 25 SYS 50 HDR SRST UNSHRD SN
104074-5
te connectivity / amp
Conn Shrouded Header HDR 25 POS 1.27mm Solder RA Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN HEADER 25POS.050 RTANG GOLD Headers & Wire Housings SYSTEM 50 HDR 25P 1170 Conn Shrouded Header HDR 25 POS 1.27mm Solder RA Thru-Hole Tube Product Highlights:Header AssemblyNumber of Positions = 25Number of Rows = SingleShroudedRight Angle Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU 25 SYSTEM 50 HDR SRRA SHRD
5-104074-5
te connectivity / amp
Conn Shrouded Header HDR 25 POS 1.27mm Solder RA Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN HEADER 25POS .050 R/A GOLD Headers & Wire Housings 25 SYS 50 HDR SRRA SHRD SN .050 X .100 AMPMODU System 50 Product Highlights:Header AssemblyNumber of Positions = 25Number of Rows = SingleShroudedRight Angle Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU 25 SYSTEM 50 HDR SRRA SHRD SN
104071-5
te connectivity / amp
Conn Shrouded Header HDR 25 POS 1.27mm Solder ST Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN HEADER VERT .050 25POS 30AU Headers & Wire Housings SYSTEM 50 HDR 25P 936 Conn Shrouded Header HDR 25 POS 1.27mm Solder ST Thru-Hole Tube Product Highlights:Header AssemblyNumber of Positions = 25Number of Rows = SingleShroudedVertical Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU 25 SYSTEM 50 HDR SRST SHRD
1-487547-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip Flexible Film Contacts CONN RECEPT .050 CRIMP LONG GOLD .050 Contact,rcp,IDC,1.27mm FFC & FPC Connectors 050X100 SKT Contact SKT Crimp ST Cable Mount Strip Product Highlights:SocketContact Type = Receptacle1.27 mm CenterlineWire/Cable Type = Flexible Flat Conductor CableGold (30) Contact Mating Area PlatingSearch Keywords:mass termination, Flexcircuit, flat flexible cable, flat flex wire, CONTACT, CRIMP, RECEPTACLE, IDC/IDT CONTACT,RECEPTACLE,FLXIBLEFILM,1.27MMCENTERLINE TE Connectivity FFC 系列 压接接线端子, 压接, 镀金镀镍触点 FFC,RCPT CONTACT,.050" CNTRLIN

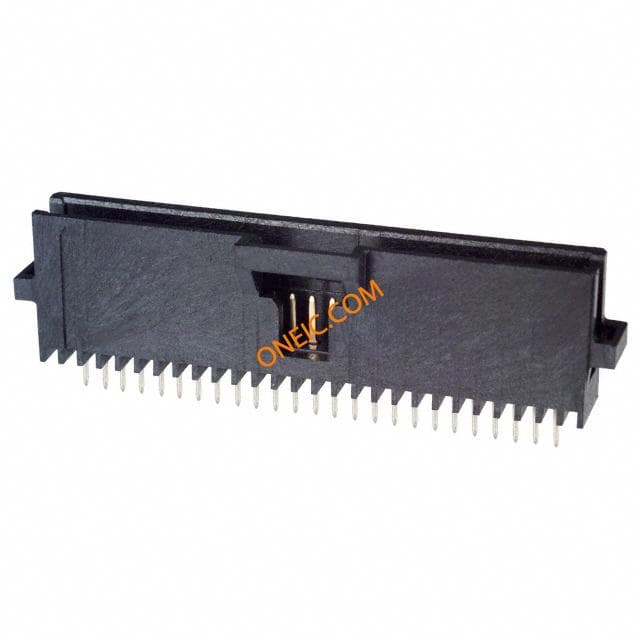

5-104071-5
