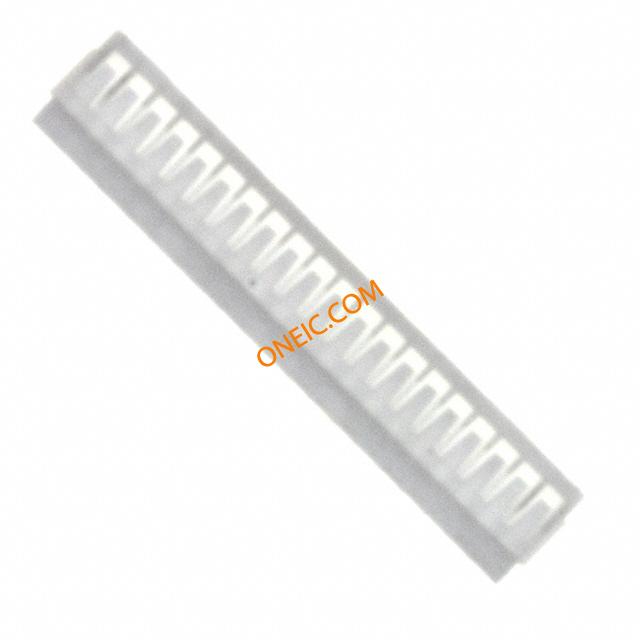

2-353908-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 20 POS 1.5mm Crimp ST Box 1.5mm AMP Mini CT CONN RCPT HSNG 20POS 1.5MM CRIMP Headers & Wire Housings RECPT HSG 20P CRIMP 1.5mm Conn Housing RCP 20 POS 1.5mm Crimp ST Box Product Highlights:Receptacle HousingConnector Type = CrimpNumber of Positions = 20Without Panel AttachmentNumber of Rows = 1Search Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, CT REC HSG 20P CRIMP TYPE WHIT |
| 分类 |
商业参数
| 商标名 | COMMON TERMINATION | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 500 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| UL档案号 | E28476 | CSA档案号 | LR 7189-133 |
| 标准编号 | CSA, UL | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 供电电压 | 50 VAC, 50 VDC | 输入电阻 | 500 |
| 连接器阻抗 | 压接 | 最大额定电流 | 3 |
机械参数
| 颜色 | White | 间距 | 1.5 mm |
| 形状 | 矩形 | 宽度 | .141 in, 3.6 mm |
| 高度 | 6 mm [ .236 in ] | 长度 | 31.5 mm [ 1.24 in ] |
| 包装方式 | Bulk | 壳体颜色 | 自然 |
| 导线线规 | 24-28 AWG | 触头类型 | Female Socket |
| 第二连接器 | Without | 安装类型 | Straight |
| 连接器类型 | Crimp | 安装样式 | 不带 |
| 排数 | 1 | 壳体材料 | Nylon 66 |
| 总长度 | 1.50 [0.059] | 包装数量 | Loose Piece |
| 面板安装类型 | Without | 端接样式 | 插座 |
| 第一触头极性 | Pin (Male) | 触点数 | 20 |
| 接触件端接 | Crimp | 绝缘直径 | .85 – 1.05 mm [ .0334 – .041 in ] |
| 位数 | 20 | 触头长度-柱 | 信号（数据） |
| 安装孔直径 | 带有 | 典型触点布局 | 同轴 |
| 静电放电屏蔽 | 不带 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | Mini CT |
| 可密封 | 否 | 产品子类型 | Receptacle Housing |
环境参数
| 测试温度 | 标准部件 - 非辉光导线 | 工作温度 | -30 – 105 °C [ -22 – 221 °F ] |
文档与媒体
相关型号
353907-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip 1.5mm AMP Mini CT CONN CONTACT RECEPT 1.5MM CT Crimp socket contact, 28-24 AWG, Mini-CT Headers & Wire Housings REC 28-24AWG PHBZ/SN Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactTerminate To WireStripSearch Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, CONTACT, RECEPTACLE, 28-24AWG, CRIMP TERMINAL, 24-28 AWG CONTACT, CRIMP, SOCKET, 28-24AWG, REEL Contact,Receptacle,1.5mmPitch,MiniCT,CrimpType CT 1.5MM REC CONT CRIMP TYPE Datacode:20140316 TE Connectivity AMP Mini CT 系列 母 压接接线端子, 压接, 镀锡触点 CT 1.5MM REC CONT CRIMP TYPE
2-292230-0
te connectivity / amp
Conn Shrouded Header HDR 20 POS 1.5mm Solder ST SMD T/R 1.5mm AMP Mini CT CONN HEADER 20POS VERT SMD TIN Headers & Wire Housings 20P SMT HDR VT 1.5mm Conn Shrouded Header HDR 20 POS 1.5mm Solder ST SMD T/R Product Highlights:Post HeaderConnector Type = DIPNumber of Positions = 20Without Panel AttachmentTerminate To Printed Circuit BoardSearch Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, 1.5 MINI CT SGL V SMT W/BOSS 2
2-292227-0
te connectivity / amp
Conn Shrouded Header HDR 20 POS 1.5mm Solder RA SMD Embossed Tape 1.5mm AMP Mini CT CONN HEADER 20POS R/A SMD TIN Headers & Wire Housings 20 POS POST HDR DIP Conn Shrouded Header HDR 20 POS 1.5mm Solder RA SMD Embossed Tape Search Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, 1.5 MINI CT SGL H SMT W BOSS 2
2-292206-0
te connectivity / amp

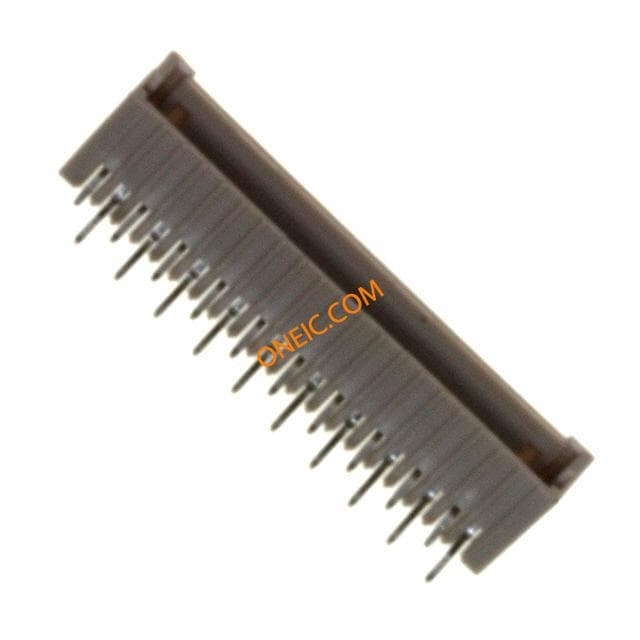

Conn Shrouded Header HDR 20 POS 1.5mm Solder RA Thru-Hole Loose Piece 1.5mm AMP Mini CT CONN HEADER 20POS R/A 1.5MM TIN Headers & Wire Housings 20P DIP HDR R/A 1.5mm Conn Shrouded Header HDR 20 POS 1.5mm Solder RA Thru-Hole Loose Piece Product Highlights:Post HeaderConnector Type = DIPNumber of Positions = 20Without Panel AttachmentTerminate To Printed Circuit BoardSearch Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, MINI CT SGL DIP H 20P NAT
2-292207-0
te connectivity / amp

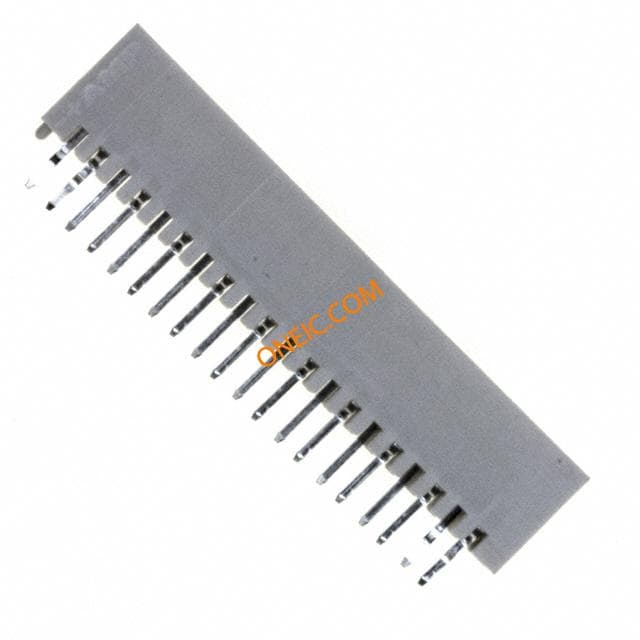

Conn Shrouded Header HDR 20 POS 1.5mm Solder ST Thru-Hole Loose Piece 1.5mm AMP Mini CT CONN HEADER 20POS VERT 1.5MM TIN Headers & Wire Housings 20P DIP HDR VERT 1.5mm Conn Shrouded Header HDR 20 POS 1.5mm Solder ST Thru-Hole Loose Piece Search Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, MINI CT SGL DIP V 20P NAT
