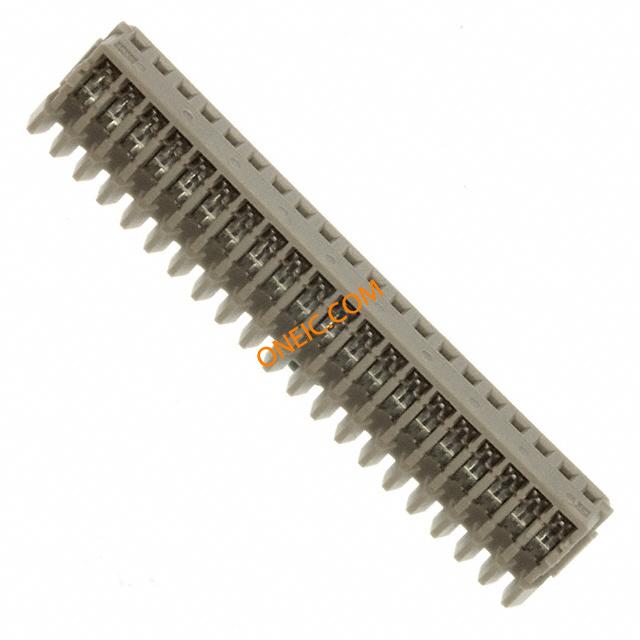

2-353293-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IDC Connector RCP 20 POS 1.5mm IDT ST Cable Mount Bag/Box 1.5mm AMP Mini CT CONN RCPT 20POS 1.5MM 28-26AWG Receptacle assembly,MT,1.5mm,20W,Mini-CT Headers & Wire Housings RCPT 20 POS GRY MINI 1.5mm Conn IDC Connector RCP 20 POS 1.5mm IDT ST Cable Mount Bag/Box Product Highlights:Receptacle AssemblyConnector Type = MT (Mass Termination)Number of Positions = 20Without Panel AttachmentTerminate To WireSearch Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, Receptacleassembly,MT,1.5mm,20W,Mini-CT TE Connectivity AMP Mini CT 系列 20路 1.5mm节距 母 IDC 连接器 , 电缆安装 MINI CT MT REC ASSY 20P GRAY |
| 分类 |
商业参数
| 商标名 | COMMON TERMINATION | 其他名称 | A99742 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | 50 V ac/dc | 开关功能 | Without |
| 接触电阻 | 20 mohm | 连接器阻抗 | 刺破式压接 (IDC) |
| 最大额定电流 | 2A | 最小供电电压 | 50VDC/50VAC |
机械参数
| 颜色 | Gray | 深度 | 6 mm |
| 间距 | 1.5 mm | 高度 | 3.6 mm |
| 包装方式 | Bulk | 导线类型 | Discrete |
| 导线线规 | 26-28 AWG | 方向 | 直 |
| 端接方式 | IDT | 触头类型 | Female Socket |
| 外壳颜色 | Gray | 安装类型 | No |
| 连接器类型 | MT (Mass Termination) | 接触镀层 | Tin Over Nickel |
| 安装样式 | Cable | 排数 | 1 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Nylon GF |
| 总长度 | 31.5 mm | 包装数量 | Loose Piece |
| 面板安装类型 | Without | 端接排数 | IDC |
| 电缆端接方式 | IDC | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 触点数 | 20 |
| 绝缘直径 | 0.80 â 0.95 [0.032 â 0.037] | 位数 | 20 |
| 安装孔直径 | 带有 | 中心触点材料 | 1.50 [0.059] |
| 线规或范围 - mm² | 0.08-0.15² [28-26] | ||
产品信息
| 类型 | IDC Connector | 连接器性别 | RCP |
| 系列 | Mini CT | 产品特性 | Closed End |
| CAD图纸 | 3D CAD Model | 产品子类型 | Receptacle Assembly |
| 连接类型 | Wire | ||
环境参数
| 工作温度 | +105°C | ||
