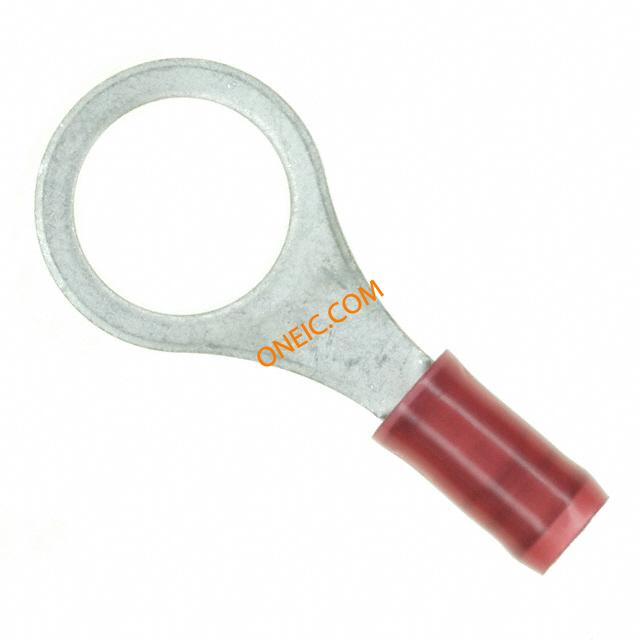

2-320573-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Ring Tongue Terminal 22AWG 30.94mm 13.49mm Tin Loose Piece Terminals TERMINAL PIDG R IR 22 3/8 Ring and Spade Tongue Terminals CONN RING TONG 22AWG #3/8 TIN Ring Tongue Terminal 22AWG 30.94mm 13.49mm Tin Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = PIDG (Insulation Restriction)Barrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B TERMINAL,PIDG R IR 22 3/8 |
| 分类 |
商业参数
| 产品 | Ring Terminals | 零件号别名 | M7928 M7928/1-18 |
| 产品类别 | Terminals | 标准包装数量 | Bulk |
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| 安全类别 | I 级 | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | No | ||
电气参数
| 最大电压 | 300 | 额定电压 | 300 VAC |
| 供电电压 | 300 | ||
机械参数
| 颜色 | Red with Green Stripe | 形状 | RING-041 |
| 表面处理 | Tin | 重量 | 1.241 |
| 材料（通用） | Copper | 包装方式 | Bulk |
| 厚度 | 0.031" (0.79mm) | 电缆类型 | Regular Wire |
| 重型 | No | 绝缘类型 | Insulated |
| 螺钉尺寸 | 3/8 | 导线线规 | 22 AWG |
| 端接方式 | Crimp | 触点形状 | Ring Tongue |
| 安装类型 | Free Hanging (In-Line) | 螺柱/焊片尺寸 | 9.52 mm |
| 端子类型 | Circular | 电缆材料 | Stranded |
| 接触镀层 | Tin | 连接器样式 | Straight |
| 触头材料 | Copper | 总长度 | 1.280" (32.51mm) |
| 包装数量 | Loose Piece | 筒径 | Standard |
| 绝缘高度 | Insulation Restriction | 端接样式 | 环形端子 |
| 背景色 | Green | 连接器颜色 | Red |
| 绝缘直径 | 0.97-2.79 [.038-.110] | 绝缘材料 - 类型 | Nylon |
| 位数 | 1 | 外缘宽度 | 0.531" (13.49mm) |
| 绝缘材料 - 材质 | Polyamide (PA), Nylon | 舌片内部开口 | 0.79 [0.031] |
| 螺纹/螺钉/孔尺寸 | 9.53 mm [ .375 in ] | 供应商器件封装 | PIDG (Insulation Restriction) |
| 支撑面板厚度 | Insulation Restriction | 线规或范围 - AWG | 754 |
| 线规或范围 - mm² | 0.30-0.40² [22] | 非扩张内径 | .128 |
产品信息
| 类型 | Ring Tongue Terminal | 类别 | 1 & 2 |
| 产品特性 | Insulation Restriction | 可密封 | 否 |
| 制造商全称 | AMP | 设备部件号 | M7928/1-18 |
环境参数
| 工作温度 | 105 | ||
