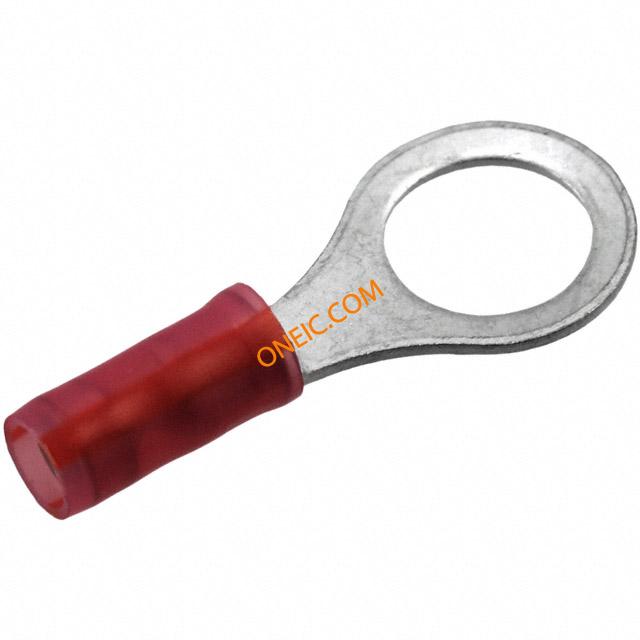

2-320572-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Ring Tongue Terminal 20AWG 28.96mm 11.91mm Tin Loose Piece Terminals M7928/1-26 CLASS 1 & 2 Ring and Spade Tongue Terminals CONN RING TONG 20AWG #5/16 PIDG Ring Tongue Terminal 20AWG 28.96mm 11.91mm Tin Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = PIDG (Insulation Restriction)Barrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B TERMINAL,PIDG R IR 20 5/16 |
| 分类 |
商业参数
| 产品 | Ring Terminals | 其他名称 | 23205723 |
| 零件号别名 | M7928 M7928/1-26 | 产品类别 | Terminals |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | RoHS Compliant | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | 安全类别 | I 级 |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | No |
电气参数
| 最大电压 | 300 | 额定电压 | 300 VAC |
| 供电电压 | 300 | ||
机械参数
| 颜色 | Red with Red Stripe | 深度 | 11.91 mm |
| 形状 | RING-042 | 表面处理 | Tin |
| 重量 | 1.051 | 材料（通用） | Copper |
| 包装方式 | Bulk | 厚度 | 0.031" (0.79mm) |
| 电缆类型 | Regular Wire | 重型 | No |
| 绝缘类型 | Insulated | 螺钉尺寸 | 5/16, M8 |
| 导线线规 | 20 AWG | 端接方式 | Crimp |
| 基体材料 | Copper | 触点形状 | Ring Tongue |
| 安装类型 | Free Hanging (In-Line) | 螺柱/焊片尺寸 | 7.93 mm |
| 端子类型 | Circular | 电缆材料 | Stranded |
| 接触镀层 | Tin | 壳体镀层 | Tin |
| 连接器样式 | Straight | 触头材料 | Copper |
| 总长度 | 1.140" (28.96mm) | 包装数量 | Loose Piece |
| 筒径 | Standard | 绝缘高度 | Insulation Restriction |
| 端接样式 | 环形端子 | 背景色 | Red |
| 连接器颜色 | Red | 接触件尾部长度 | 0.84 [0.033] |
| 绝缘直径 | 1.17-2.79 [.046-.110] | 绝缘材料 - 类型 | Nylon |
| 位数 | 1 | 外缘宽度 | 0.469" (11.91mm) |
| 绝缘材料 - 材质 | Polyamide (PA), Nylon | 舌片内部开口 | .84 mm [ .033 in ] |
| 螺纹/螺钉/孔尺寸 | 7.92 mm [ .312 in ] | 供应商器件封装 | PIDG (Insulation Restriction) |
| 支撑面板厚度 | Insulation Restriction | 线规或范围 - AWG | 1,186 |
| 线规或范围 - mm² | 0.50-0.60² [20] | 非扩张内径 | .128 |
产品信息
| 类型 | Ring Tongue Terminal | 类别 | 1 & 2 |
| 连接器性别 | Female | 系列 | 320 |
| 产品特性 | Insulation Restriction | 可密封 | 否 |
| 制造商全称 | AMP | 设备部件号 | M7928/1-26 |
环境参数
| 工作温度 | 105 | ||
