点击放大查看

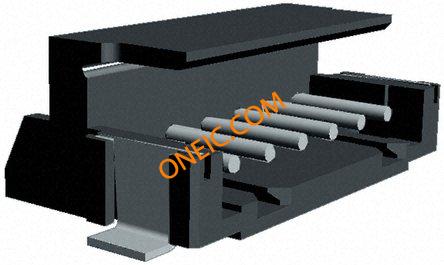

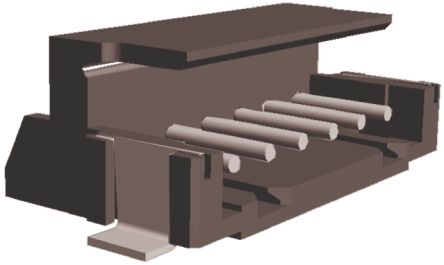

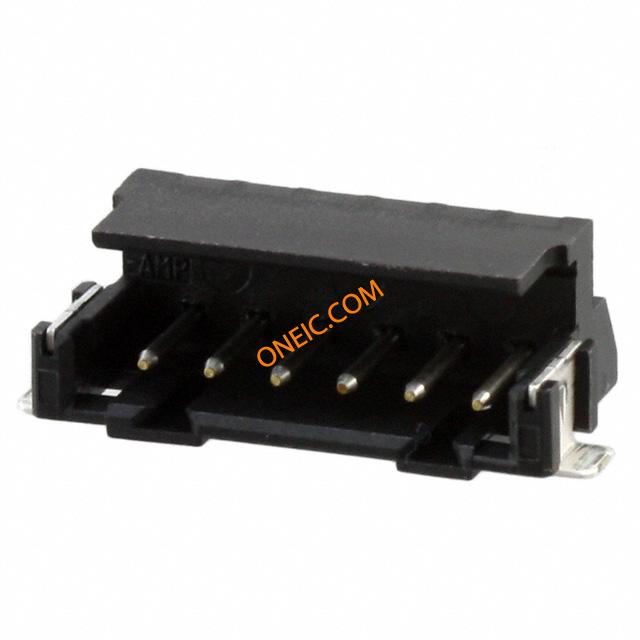

2-292173-6
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 6 POS 2mm Solder RA SMD Embossed T/R Headers & Wire Housings CT BOX HDR H SMT 6P 2mm AMP CT CONN HEADER 6POS SMD R/A TIN BLK TE Connectivity 2-292173 Series 2mm Pitch 6 Way 1 Row Right Angle PCB Header, Solder Termination, 2A Conn Shrouded Header HDR 6 POS 2mm Solder RA SMD Embossed T/R Product Highlights:ConnectorConnector Type = Crimp, MT (Mass Termination)Mating Type = HeaderNumber of Positions = 6Number of Rows = 1Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, CONNECTOR, HEADER, SMT, 6WAY Headerplug,box,SMT,2mm,6way,R/A,CT TE Connectivity AMP CT 系列 2mm节距 6路 (1排) 直角 PCB 针座, 焊接端接, 2A , 表面安装 CT BOX HDR H SMT 6P O/TAPE BLA |
| 分类 |
商业参数
| 商标名 | Common Termination | 其他名称 | A100985CT |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Tape & Reel |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366930 |
| 无铅定义 | Reflow solder capable to 245°C | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 量程（°/s） | :TE - AMP CT Series | 额定电压 | 125 V ac/dc |
| 开关功能 | No | 最大额定电流 | 2A |
机械参数
| 颜色 | Black | 间距 | 2 mm |
| 重量 | 0.02 | 包装方式 | Reel |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 外壳颜色 | Black | 安装类型 | Right Angle |
| 连接器类型 | Crimp, MT (Mass Termination) | 接触镀层 | Tin |
| 安装样式 | SMD/SMT | 排数 | 1 |
| 连接器用途 | Header | 触头材料 | Brass |
| 壳体材料 | Polyphenylene Sulfide (PPS) | 总长度 | 2.00 [0.079] |
| 包装数量 | Tape Mounted | 面板安装类型 | Without |
| 端接样式 | SMD | 第一触头极性 | Pin (Male) |
| 排针方向 | Box | 触点数 | 6 |
| 接触件端接 | :Surface Mount Right Angle | 位数 | 6 |
| 接触长度 - 配合 | 0.165" (4.19mm) | ||
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | AMP CT | 产品特性 | Solder Retention |
| 产品子类型 | Headers - Shrouded | 连接类型 | Printed Circuit Board |
| 加载位置数 | All | ||
