2-1761607-1

点击放大查看

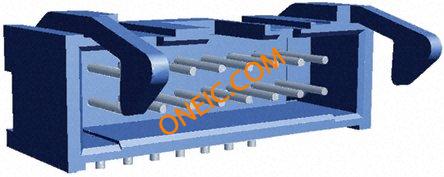

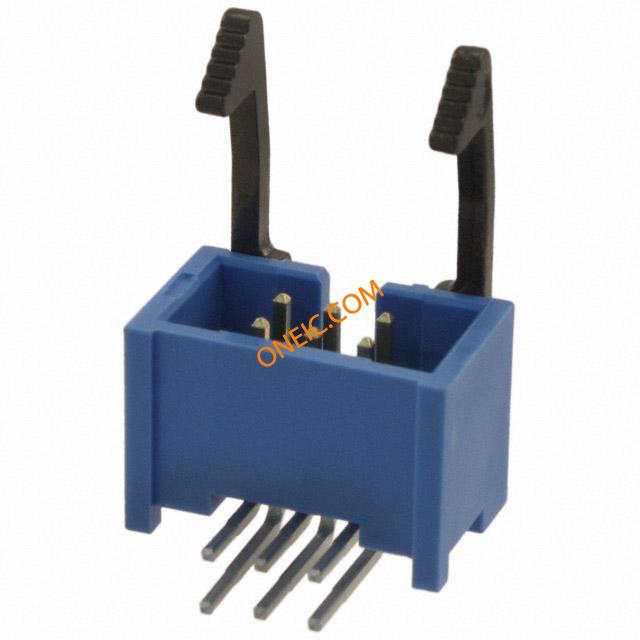

2-1761607-1

制造商
TE Connectivity Ltd.
描述
Conn Ejector Header HDR 6 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER PIN 6POS R/A GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 6 Way 2 Row Right Angle PCB Header, Solder Termination Headers & Wire Housings IDC LOW PRO HDR 6P RA LG LAT BLUE Conn Ejector Header HDR 6 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 62.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, Headerhoriz6way2.54mmEjectAmpLatch TE Connectivity AMP-LATCH 系列 2.54mm节距 6路 (2排) 直角 PCB 针座, 焊接端接 , 通孔 IDC LOW PRO HDR 6P RA LG LAT B
分类
连接器解决方案板对板连接器带罩排针连接器
对参数有疑问？问 AI 助手

商业参数

商标名AMP-LATCH标准包装数量Bulk

合规参数

RoHSLead free / RoHS Compliant无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

电气参数

开关功能Ejection供电电压250
输入电阻1000 – 5000连接器阻抗Top
最大额定电流1/Contact A低功耗链路范围带有
最小供电电压250VAC

机械参数

颜色Blue间距2.54 mm
高度9.19 mm [ .36 in ]长度15.24 mm [ .6 in ]
底座类型不带包装方式Tube
遮蔽类型Yes壳体颜色蓝色
端部尺寸（如SMD/SMT、14mm等）3.76 mm [ .148 in ]引脚样式直角
方向直角排间距0.100" (2.54mm)
端接方式Solder触头类型Male Pin
柱间距2.54 x 2.54 [.100 x .100]极化Center, Military
第二连接器Without触点形状Square
外壳颜色Blue安装类型Right Angle
连接器类型Pin Header接触镀层Gold Over Nickel
紧固类型Latch Lock/Eject Hooks安装样式Through Hole
排数2封装形式4-Sided
外壳材料（壳体）4 面驱动力带有
插入件材料磷青铜外形（宽 x 高）Low
触头材料Phosphor Bronze壳体材料Thermoplastic
总长度3.81 [0.150]包装数量13
面板安装类型通孔主要材料PCB
尺寸/外形0.64 [.025]端接排数焊接
端接样式Through Hole第一触头极性Pin (Male)
外径.64 mm [ .025 in ]配接方向With
触点数6位数6
兼容外壳尺寸（如TM-700等）AMP 锁闩母端触头长度-柱信号（数据）
安装孔直径带有接触件表面处理 - 配合锡
接触长度 - 配合0.237" (6.02mm)端子柱长度2.60 [0.102]
接触镀层厚度30µin (0.76µm)

产品信息

类型Ejector Header连接器性别HDR
系列AMP LATCH覆盖范围覆盖
极性带有制造商全称AMP-LATCH
产品子类型Headers其他规格With
加载位置数All
