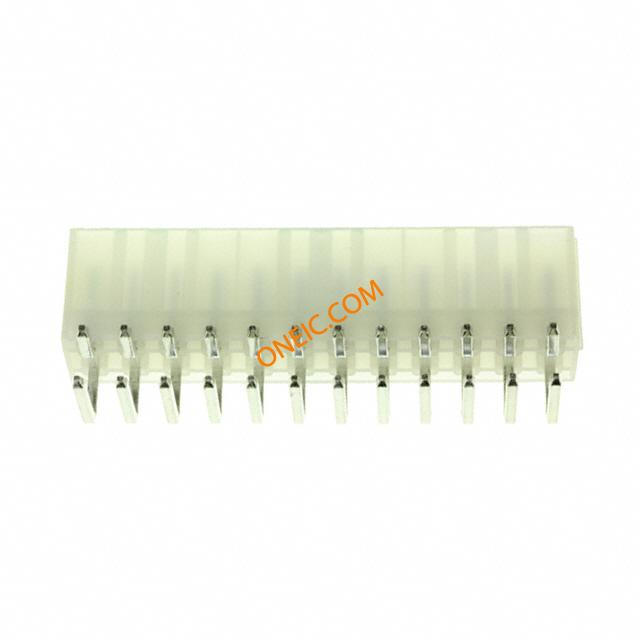

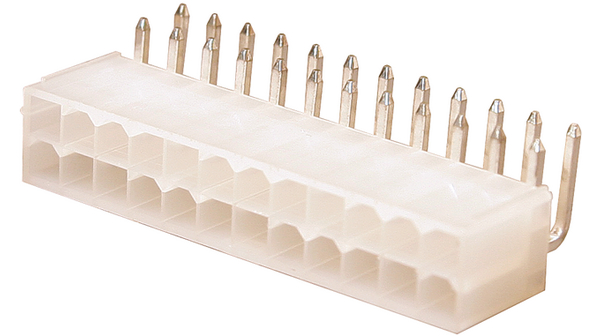

2-1586041-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Wire to Board HDR 24 POS 4.2mm Solder RA Thru-Hole VAL-U-LOK Series Connector System CONN HEADER 24POS R/A W/O PEGS Pin & Socket Connectors RA HDR W/O PEGS 24P Conn Wire to Board HDR 24 POS 4.2mm Solder RA Thru-Hole Product Highlights:Pin HeaderNumber of Circuits = 24UL 94V-2Number of Rows = DualRight Angle Mount AngleSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP HEADER,RIGHTANGLE,VAL-U-LOK,24POS,DUALROW,UL94V-2,W/OPEGS Male connector 90° Pitch4.2 mm Poles 2 x 12 VAL-U-LOK, 2-1586041-4, TE Connectivity 24P VAL-U-LOK R/A HDR V2 |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Trays |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 零件状态 | E28476 | 无铅定义 | Wave solder capable to 240°C |
| CSA档案号 | 208567 | 标准编号 | CSA, UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | UL阻燃等级 | UL 94V-2 |
| 认证机构标志 | 否 | 材料阻燃等级 | UL 94V-2 |
电气参数
| 额定电压 | 600 V | 极数 | 2 x 12 |
| 供电电压 | 600 | 中心频率 | 带有 |
| 最大额定电流 | 9 A | ||
机械参数
| 间距 | 4.2 mm | 宽度 | 13 mm [ .51 in ] |
| 高度 | 9.8 mm [ .39 in ] | 长度 | 51.6 mm [ 2.031 in ] |
| 密封型 | Not Sealed | 包装方式 | Bulk |
| 排间距 | 0.165" (4.20mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Right Angle |
| 连接器类型 | Header, Shrouded | 接触镀层 | Tin |
| 紧固类型 | Locking Ramp | 安装样式 | Through Hole |
| 引脚数 | 24 | 排数 | 2 |
| 封装形式 | Plug | 触头材料 | Tin-plated brass |
| 壳体材料 | Nylon | 包装数量 | 70 |
| 面板安装类型 | 通孔 - 焊接 | 主要材料 | InterconnectSystem |
| 端接样式 | Solder | 第一触头极性 | Socket (Female) |
| 触点数 | 24 | 绝缘直径 | 1.2 – 3.1 mm [ .047 – .122 in ] |
| 位数 | 24 | 第一连接器极性 | Male |
| 安装孔直径 | 带有 | 接触件表面处理 - 配合 | 锡 |
| 典型触点布局 | 直插式, 矩阵 | 端子柱长度 | 3.6 mm [ .14 in ] |
| 接触镀层厚度 | 80 µm [ 2.03 µin ] | ||
产品信息
| 类型 | Wire to Board | 连接器性别 | HDR |
| 系列 | PE | 制造商全称 | VAL-U-LOK |
| 产品子类型 | Pin Header | 连接方式 | Wire-Board |
| 电路数 | 24 | 选择性装载 | No |
| 应用细节 | Power | 装配配置 | Without |
| 加载位置数 | All | ||
环境参数
| 测试温度 | 标准件 - 非灼热丝 | 工作温度 | -40 – 105 °C [ -40 – 221 °F ] |
| 封装热阻 | .063 mm [ 1.6 in ] | ||
相关型号
2-794954-4
te connectivity / amp
Conn Housing RCP 24 POS 4.2mm Crimp ST VAL-U-LOK Series Connector System CONN RECEPT 24POS FREE HANGING 24 way receptacle 4.20mm Val-u-Lok Pin & Socket Connectors RECEPTACLE HSG 24P Conn Housing RCP 24 POS 4.2mm Crimp ST Product Highlights:HousingReceptacleNumber of Circuits = 24UL 94V-2Number of Rows = DualSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP HOUSING, RCPT, DUAL ROW, 24 WAY, NYLON Connector;Nylon;Natural;SoftShell;FreeHanging;AMPBrand/PESeries Female crimp housing Pitch4.2 mm Poles 2 x 12 VAL-U-LOK, 2-794954-4, TE Connectivity TE Connectivity VAL-U-LOK 系列 2 行 4.2mm 节距 24 路 直 母 压接连接器外壳 24P RCPT VAL-U-LOK V2

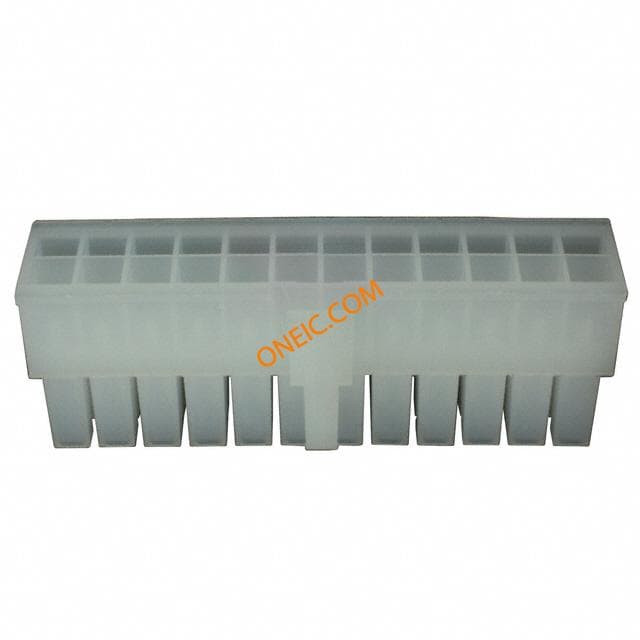

2-106527-4
