2-1445053-2

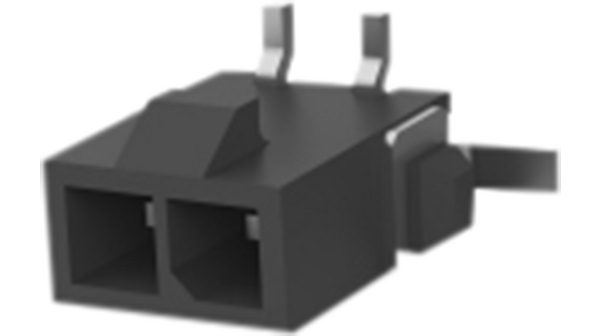

点击放大查看

2-1445053-2

制造商
TE Connectivity Ltd.
描述Conn Power HDR 2 POS 3mm Solder ST SMD 2 Terminal 1 Port 3mm Centerline, 250V, 5 A max. CONN HEADER 3MM 2POS TIN SMD TE Connectivity Micro MATE-N-LOK Series 3mm Pitch 2 Way 1 Row Straight PCB Header, Solder Termination, 5A Pin & Socket Connectors HDR VERT 2 POS TIN SINGLE ROW Conn Power HDR 2 POS 3mm Solder ST SMD 2 Terminal 1 Port Product Highlights:Header AssemblyNumber of Positions = 2Number of Rows = SingleVertical Mount AngleMount Style = Surface MountSearch Keywords:wire to board, wire to wire, high density, Power Pin & Socket, Soft Shell, Lighting Interconnection, wire to panel, power, pcb connectors, discrete wire, crimp, low profile, Micro MATE-N-LOK connector, MATE-N-LOK connector, Low Profile Soft Shell connector, Lighting, LED Lighting, Lighting Applications, Soft Shell connector, Low profile Micro MATE-N-LOK connector HEADERVERTPCB2WAYPIN Pin header Pitch3 mm Poles 2 Contact DesignMale MATE-N-LOK, 2-1445053-2, TE Connectivity TE Connectivity Micro MATE-N-LOK 系列 3mm节距 2路 (1排) 直 PCB 针座, 焊接端接, 5A , 表面安装 MICRO MNL HDR ASSY S/ROW LF
分类
工具与焊接解决方案压接钳、压接机、压力机压接钳
对参数有疑问？问 AI 助手

商业参数

其他名称A33199CT产品类别Pin & Socket Connectors
标准包装数量Tape & Reel工厂包装数量1

合规参数

RoHSLead free / RoHS Compliant无铅定义Reflow solder capable to 245°C, Reflow solder capable to 260°C
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

电气参数

额定电压250 V ac最大额定电流5A
最小供电电压250VAC

机械参数

颜色Black深度5.67 mm
间距3 mm高度9.24 mm
镀层Matte-Tin包装方式Tape & Reel (TR)
端接方式Solder触头类型Male Pin
极化Without外壳颜色Black
安装类型Surface Mount连接器类型Header, Shrouded
接触镀层Matte Tin紧固类型Locking Ramp
安装样式Surface Mount排数Single
触头材料Brass壳体材料Nylon
框架材料Phosphor Bronze端接样式Solder
第一触头极性Pin (Male)触点数2
位数2中心触点材料3.00 [0.118]
接触镀层厚度100µin (2.54µm)

产品信息

备注Vacuum pick-up button.类型Power
连接器性别HDR系列Micro MATE-N-LOK
产品子类型Header Assembly端口数1 Port
加载位置数All

环境参数

温度额定值High工作温度-40C to 105C
结工作温度105C

文档与媒体

在线文档
2-1445053-2?RQPN=2-1445053-2
