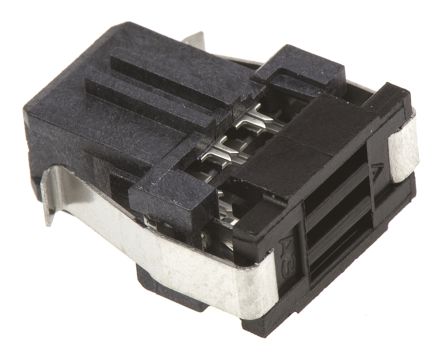

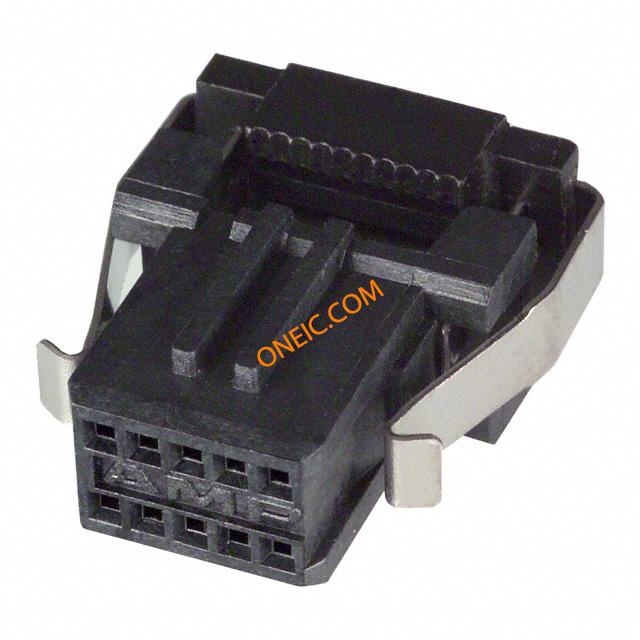

2-111196-5

点击放大查看

2-111196-5

制造商
TE Connectivity Ltd.
描述Conn IDC Connector RCP 10 POS 1.27mm IDT RA Cable Mount .050 X .100 AMPMODU System 50 CONN RECEPT 10POS .050X.100" IDC Ribbon cable conn.rcpt.10 way,1.27mm,blk Headers & Wire Housings 10 POS RECEPT IDC DUAL ROW Conn IDC Connector RCP 10 POS 1.27mm IDT RA Cable Mount Product Highlights:Receptacle AssemblyNumber of Positions = 10Number of Rows = DualWith Mating Connector LockWire/Cable Type = Ribbon CableSearch Keywords:dual beam contact, wire to wire, IDC, latching, signal, pcb connectors, AMPMODU RECEPTACLE, 10WAY Connectors,ribboncablereceptacle,doublerow,10position TE Connectivity AMP-LATCH System 50 系列 2行 10路 1.27mm节距 直角 母 IDC 连接器 , 电缆安装 010 RCPT SYSTEM 50 30 DPLX
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Trays
工厂包装数量110

合规参数

RoHSLead free / RoHS Compliant海关税号85369010
材料阻燃等级UL94V-0

电气参数

量程（°/s）:TE - AMPMODU System 50 Series额定电压30 V ac
开关功能Latch接触电阻30 mohm
最大额定电流0.5A绝缘电阻5000 MOhms
最小供电电压30VAC

机械参数

颜色Black深度6.45 mm
间距1.27 mm高度14.73 mm
重量0.002包装方式Bulk
导线类型Ribbon Cable出线方向Straight
导线线规30-32 AWG排间距0.100" (2.54mm)
端接方式IDT触头类型Female Socket
外壳颜色Black安装类型Free Hanging (In-Line)
行程角度Straight连接器类型Receptacle
接触镀层Gold Over Nickel紧固类型Latch Lock
安装样式Wire排数2
触头材料Phosphor Bronze壳体材料Liquid Crystal Polymer
总长度12.95 mm主要材料InterconnectSystem
电缆端接方式IDC插针孔直径0.05"
端接样式IDC第一触头极性Socket (Female)
连接器颜色:Black触点数10
接触件端接:IDC / IDT位数10
接触镀层厚度30µin (0.76µm)第一连接器安装类型:Cable

产品信息

类型IDC Connector连接器性别RCP
系列AMP产品特性Feed Through
硬件配件Latch制造商全称AMPMODU
产品子类型Receptacles / Sockets - Housings应用细节Commercial

环境参数

工作温度+105°C

文档与媒体

在线文档
2-111196-5?RQPN=2-111196-5

相关型号

104068-2

104068-2

te connectivity / amp

Conn Shrouded Header HDR 10 POS 1.27mm Solder ST Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN HEADER VERT .050 10POS 30AU Headers & Wire Housings 10 SYSTEM 50 HDR DRST SHRD Conn Shrouded Header HDR 10 POS 1.27mm Solder ST Thru-Hole Tube Product Highlights:Header AssemblyNumber of Positions = 10Number of Rows = DualShroudedVertical Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU 10 SYSTEM 50 HDR DRST SHRD

¥6.3648
详情
104549-1

104549-1

te connectivity / amp

Conn Shrouded Header HDR 10 POS 1.27mm Solder ST SMD Tube .050 X .100 AMPMODU System 50 CONN HEADER .050 10POS VERT SMD Headers & Wire Housings HDR 10P VERT SMD Conn Shrouded Header HDR 10 POS 1.27mm Solder ST SMD Tube Product Highlights:Housing Gender = Header - Pin10 PositionsNumber of Rows = DualShroudedVertical Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU 10 SYS50 SURFMNT HDR DRST SHRD

¥6.3920
详情
5-104068-2

5-104068-2

te connectivity / amp

Conn Shrouded Header HDR 10 POS 1.27mm Solder ST Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN HEADER 10POS VERT DL GOLD Header vertical 10 way AmpModu system 50 Headers & Wire Housings HDR 2X05P VRT T/H Conn Shrouded Header HDR 10 POS 1.27mm Solder ST Thru-Hole Tube Product Highlights:Connector Type = Header - Pin10 PositionsNumber of Rows = DualShroudedVertical Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU TE Connectivity AMPMODU System 50 系列 2.54mm节距 10路 (2排) 直 PCB 针座, 焊接端接 , 通孔 10 SYSTEM 50 HDR DRST SHRD

¥9.6560
详情

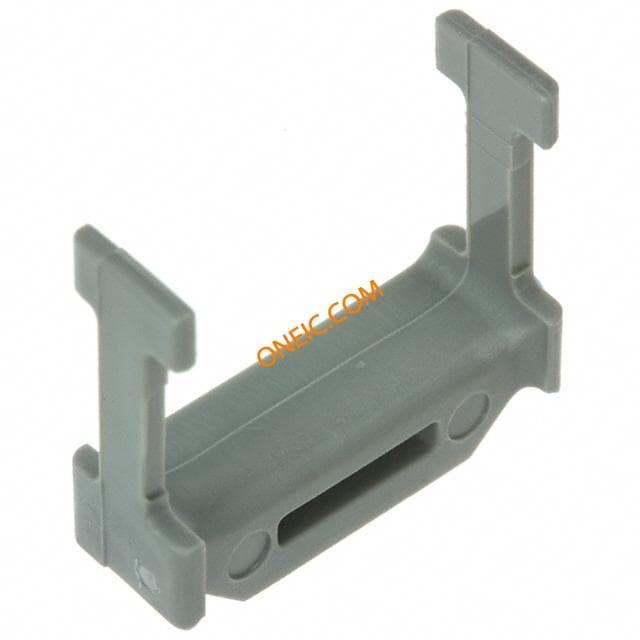

3448-3010
