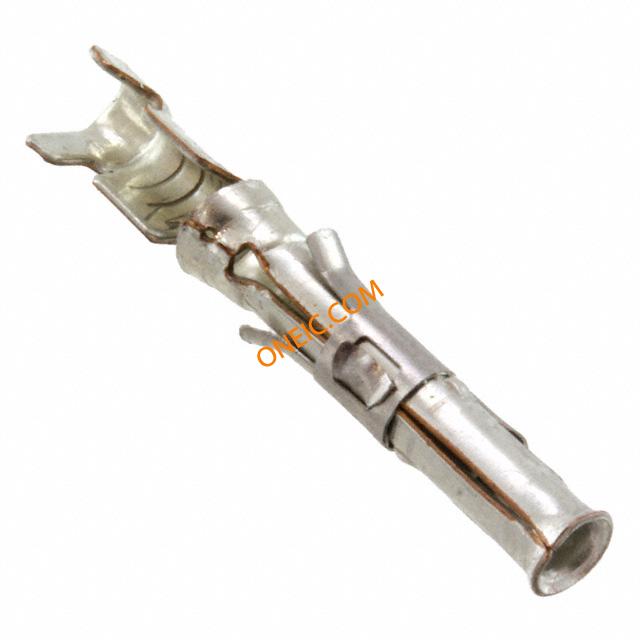

2-1105001-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Loose Piece HTS Connectors and Accessories CONN SOCKET 20-15.5AWG CRIMP TIN Heavy Duty Power Connectors SOCKET 20-15.5 TIN HD.M-C-BU.SN.0,5 Contact SKT Crimp ST Cable Mount Loose Piece Product Highlights:HD.M SeriesContactContact Type = SocketFemaleWire Range = 0.50-1.50² [20-15] mm [AWG]Search Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 HD.M-C-BU.SN.0,5 |
| 分类 |
商业参数
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 连接器阻抗 | 压接 | 最大额定电流 | 10 A |
机械参数
| 包装方式 | Bulk | 导线线规 | 15.5-20 AWG |
| 端接方式 | Crimp | 插针或插孔 | Socket |
| 连接器类型 | Connector Rectangular | 接触镀层 | Tin |
| 插入件材料 | 铜合金 | 插入力 | Female |
| 触头材料 | Copper Alloy | 包装数量 | 50 |
| 尺寸/外形 | .5 – 1.5 mm², 26 – 14 美国线规 | 端接排数 | 压接 |
| 端接样式 | Crimp | 接触件端接 | Crimp |
| 接触件表面处理 - 配合 | 锡 | 线规或范围 - AWG | 20-15 |
产品信息
| 备注 | 使用 HD 系列插入件 | 类型 | Machined |
| 连接器性别 | SKT | 产品子类型 | Contacts |
