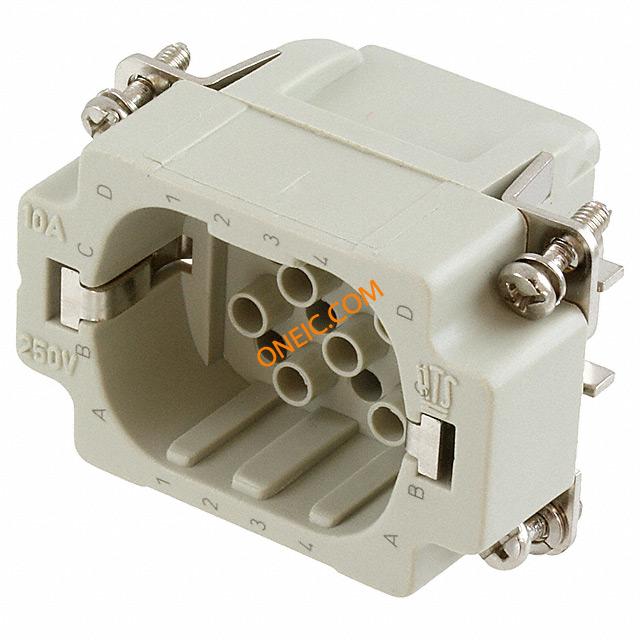

2-1103006-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Heavy-Duty Rectangular M 1Ground/16Signal POS Crimp ST Panel Mount Loose Piece HTS Connectors and Accessories CONN INSERT MALE HD.16 SRS SZ 3 Heavy Duty Power Connectors PIN INSERT SZ 3 HD.16.STI.C Conn Heavy-Duty Rectangular M 1Ground/16Signal POS Crimp ST Panel Mount Loose Piece Product Highlights:HD.16 SeriesInsertProduct Size = 3Contact Type = Crimp TerminalInsert Style = PinSearch Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 Connector: HTS; male; HD.16; PIN:16; 16+PE; crimped, on cable; 250V HD.16.STI.C |
| 分类 |
商业参数
| 交货时间 | 80 Days | 子类别 | Connector Rectangular |
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 5 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 材料阻燃等级 | UL94 V-0 |
电气参数
| 额定电压 | 250V | 极数 | 16+PE |
| 供电电压 | 250 | 最大额定电流 | 10A |
| 连接器类型 - 电压输入 | w/o terminals | ||
机械参数
| 尺寸 | 3 | 颜色 | Beige |
| 重量 | 0.03 kg | 材料（通用） | 生产控制 |
| 包装方式 | Loose Piece | 端接方式 | Crimp |
| 触头类型 | HD.M | 安装类型 | Panel Mount |
| 连接器类型 | Insert without Contacts | 封装形式 | size 3 |
| 插入件材料 | 插针 | 插入力 | Male |
| 壳体材料 | Polycarbonate (PC) | 包装数量 | 1 |
| 端接样式 | Crimp | 触点数 | 1Ground/16Signal |
| 位数 | 16+Ground | 外壳尺寸-插件 | 否 |
| 第一连接器安装特征 | 16+PE | ||
产品信息
| SPG | 1 | 备注 | 使用 HD.M 接触件 |
| 类型 | Heavy-Duty Rectangular | 连接器性别 | Male |
| 系列 | HD.16 | 产品子类型 | Inserts |
| 适配器系列 | HD.16 | 单元数量 | 3 |
环境参数
| 工作温度 | -40°C ~ 125°C | ||
