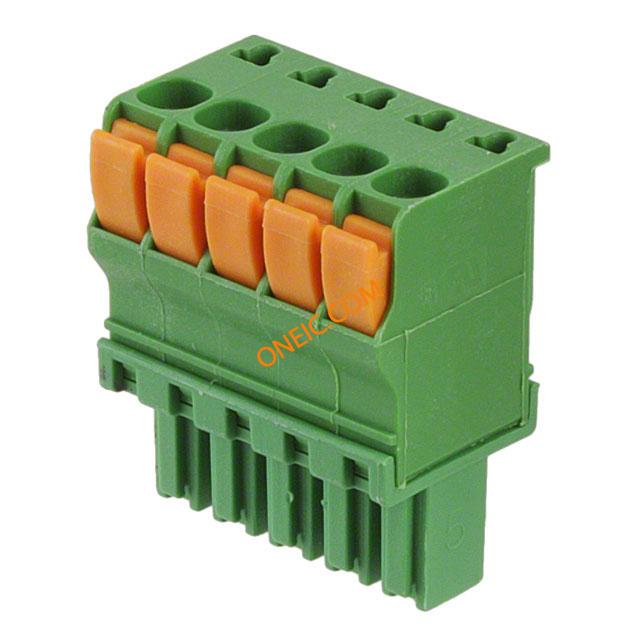

1986692-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | プラグ着脱可能ターミナルブロック 3.5MM R/HAND 5 POS STR SPRING PLG TERM BLOCK PLUG 5POS STR 3.5MM Pluggable Terminal Blocks 3.5MM R/HAND 5 POS STR SPRING PLG STR PLUG SPRING TYPE RH 5P, 3.50mm STR PLUG SPRING TYPE RH 5P, 3.50mm Search Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end |
| 分类 |
商业参数
| 产品 | Pluggable Terminal Blocks | 标准包装规格 | 150 |
| 标准包装数量 | 150 | 工厂包装数量 | 150 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 电流 | 9A | 电压 | 300V |
| 额定电压 | 300 V | 额定交流电压 | 300 |
| 最大额定电流 | 11 A | ||
机械参数
| 颜色 | Green | 间距 | 0.138" (3.50mm) |
| 包装方式 | Bulk | 壳体颜色 | 绿色 |
| 出线方向 | 顶部 | 引脚样式 | Top |
| 导线线规 | 14-30 AWG | 端接方式 | Screwless - Cage/Tension Clamp |
| 第二连接器 | 是 | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | 插头 | 接触镀层 | Tin |
| 法兰特征 | 否 | 排数 | 1 |
| 插入件材料 | 铜合金 | 插头进线方向 | 180° |
| 壳体材料 | Polyamide (PA) | 包装数量 | 150 |
| 端接样式 | Push-In | 触点数 | 5 |
| 位数 | 5 | 接线端子类型 | Plug, Female Sockets |
| 按钮/帽颜色 | 橙色 | 螺纹/螺钉/孔尺寸 | 不带 |
| 接触镀层厚度 | 1 – 3 | 线规或范围 - AWG | 30-14 |
| 线规或范围 - mm² | 30 | ||
产品信息
| 类型 | Plug, Right Hand | 产品特性 | Side Stacking |
| 层数 | 1 | 互连系统 | 不带 |
| 每层位数 | 5 | 并排堆叠 | 是 |
