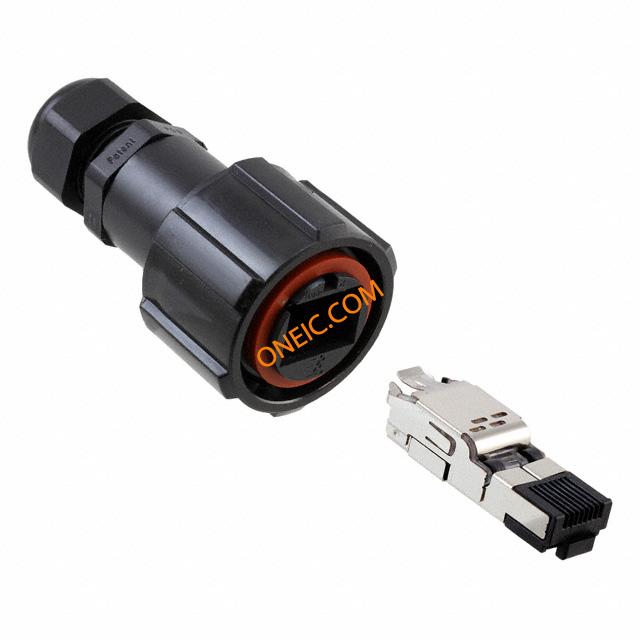

点击放大查看
1954656-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn RJ-45 PL 8 POS ST Cable Mount 4 Terminal 1 Port Bag Cat 5 Industrial Communication Products CONN MOD PLUG 4P4C SHIELDED Modular Connectors / Ethernet Connectors Plug Kit 4 POS Common Core Conn RJ-45 PL 8 POS ST Cable Mount 4 Terminal 1 Port Bag Cat 5 Search Keywords:Environmental sealing (IP67 rated), intermateable, unshielded, modular plugs and jacks, input/output, box to box, sealed, RJ-45 RJ45 ETHERNET CONN, PLUG, 4WAY, CABLE Connector,IP67CommonCore,PlugKit,4Position Plug Kit,Common Core,4P |
| 分类 |
商业参数
| 产品类别 | Modular Connectors / Ethernet Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 00000000 |
| 无铅定义 | Not relevant for lead free process | 安全类别 | Without |
| RoHS/ELV合规状态 | RoHS compliant / ELV compliant | 材料阻燃等级 | UL 94 V-0 |
机械参数
| 颜色 | Black | 长度 | 2.697" (68.50mm) |
| 重量 | 0 | 包装方式 | Bulk |
| 屏蔽 | Shielded | 电缆类型 | Round Cable, Solid or Stranded Wires |
| 屏蔽类型 | Yes | 端接方式 | IDC |
| 外壳颜色 | Black | 安装类型 | Cable Mount |
| 外壳镀层 | Elastomer | 电缆直径 | 4.0 - 7.0 |
| 连接器类型 | :RJ45 | 接触镀层 | Gold over Nickel |
| 安装样式 | Cable | 连接器样式 | Plug |
| 屏蔽材料 | Copper Alloy | 触头材料 | Copper Alloy |
| 壳体材料 | Polyester | 主要材料 | Copper Alloy |
| 触点数 | 8 | 接触件端接 | :IDC / IDT |
| 位数 | 4 | 第一连接器安装类型 | :Cable |
产品信息
| 类型 | RJ-45 | 等级 | Industrial Ethernet |
| 连接器性别 | PL | 系列 | :IP67 Common Core |
| 产品特性 | Circular Bayonet Coupling | USOC 编码 | RJ45 |
| 制造商全称 | Tyco Electronics | 产品子类型 | Ethernet IP 67 Field Installation |
| 端口数 | 1 | 其他规格 | Cable |
| 性能类别 | Cat 5e | 位置/触点数量 | 4p4c (RJ9, RJ10, RJ22) |
环境参数
| 额定等级 | Cat5e | 防护等级 | IP67 - Dust Tight, Waterproof |
