点击放大查看

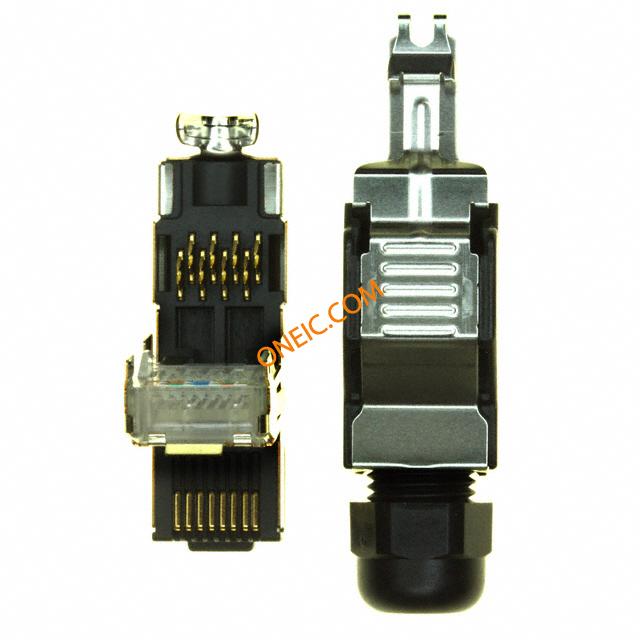

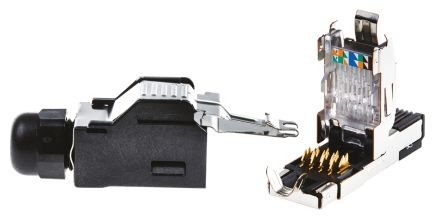

1903527-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn RJ-45 PL 8 POS ST Cable Mount 8 Terminal 1 Port Ethernet & Telecom Connectors IP20 Plug Kit 8 Pos Industrial Communication Products CONN MOD PLUG 8P8C SHIELDED Connector 8 way RJ45 IP20 Modular Modular Connectors / Ethernet Connectors IP20 Plug Kit 8 Pos Conn RJ-45 PL 8 POS ST Cable Mount 8 Terminal 1 Port Search Keywords:Environmental sealing (IP67 rated), intermateable, unshielded, modular plugs and jacks, input/output, box to box, sealed, RJ-45 PLUG, IND ETHERNET, RJ45, 8WAY Connector;Ethernet;SealedRJ-45;PlugAssy;IP20;8Pos;180-Degree;Shielded Plug; RJ45; PIN:8; gold plated; Pin layout:8p8c; 6.5mm; 26AWG TE Connectivity 直 公 RJ45 连接器 , 屏蔽, 电缆安装型 IE RJ45 CONNECTOR IP20 8POS 180DEG |
| 分类 |
商业参数
| 产品 | Telecom & Ethernet Connectors | 其他名称 | A98812 |
| 产品类别 | Ethernet & Telecom Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant / ELV compliant |
| 材料阻燃等级 | :UL94V-0 | ||
机械参数
| 颜色 | Gray | 长度 | 2.008" (51.00mm) |
| 重量 | 0.01 | 包装方式 | Bulk |
| 屏蔽 | Shielded | 导线类型 | Stranded |
| 电缆类型 | Round Cable, Stranded Wires | 导线线规 | 0.12-0.15² [26] |
| 方向 | Straight | 屏蔽类型 | Yes |
| 端接方式 | IDC | 安装类型 | Cable Mount |
| 外壳镀层 | Nickel | 电缆直径 | 6.5 |
| 连接器类型 | :RJ45 | 接触镀层 | Gold |
| 安装样式 | Cable | 连接器样式 | Plug |
| 屏蔽材料 | Copper Alloy | 触头材料 | Copper Alloy |
| 壳体材料 | Polycarbonate (PC) | 包装数量 | 1 |
| 主要材料 | Copper Alloy | 电缆端接方式 | Straight |
| 连接器 - 电缆 | plug | 触点数 | 8 |
| 接触件端接 | :Crimp | 位数 | 8 |
| 触点材料 - 镀层 | gold plated | 第一连接器安装类型 | :- |
| 第一连接器安装特征 | 8p8c | ||
产品信息
| SPG | 1 | 类型 | RJ-45 |
| 等级 | Industrial Ethernet | 连接器性别 | PL |
| 系列 | :- | 产品特性 | Cable Clamp, Housing |
| USOC 编码 | RJ45 | 制造商全称 | Tyco Electronics |
| 产品子类型 | Ethernet IP 20 Field Installation | 图案编号 | RJ45 |
| 端口数 | 1 | 单元数量 | 1 |
| 其他规格 | Cable | 位置/触点数量 | 8 |
环境参数
| 插拔次数 | :750 | NEMA 机架尺寸 | :IP20 |
| 防护等级 | IP20 | 工作温度 | :70°C |
