点击放大查看

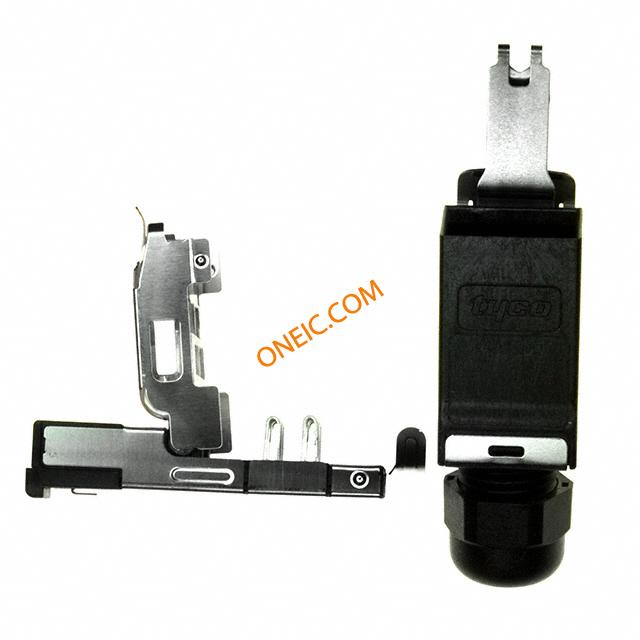

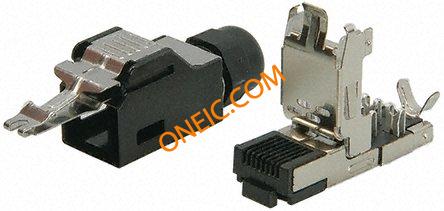

1903526-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn RJ-45 PL 4 POS ST Cable Mount 4 Terminal 1 Port Industrial Communication Products CONN MOD PLUG 8P4C SHIELDED Connector 4 way RJ45 IP20 Modular Modular Connectors / Ethernet Connectors IP20 Plug Kit 4 Pos Conn RJ-45 PL 4 POS ST Cable Mount 4 Terminal 1 Port Search Keywords:Environmental sealing (IP67 rated), intermateable, unshielded, modular plugs and jacks, input/output, box to box, sealed, RJ-45 Connector;Ethernet;SealedRJ-45;PlugAssy;IP20;4Pos;180-Degree;Shielded Plug; RJ45; PIN:4; gold plated; Pin layout:8p4c; 6.5mm; 22AWG IE RJ45 Connector IP20 4Position 180DEG IE RJ45 CONNECTOR IP20 4POS 180DEG |
| 分类 |
商业参数
| 其他名称 | A98811 | 产品类别 | Modular Connectors / Ethernet Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 80 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant / ELV compliant | ||
电气参数
| 最大额定电流 | 0.5/Contact A | 最小供电电压 | 24VDC |
机械参数
| 颜色 | Black | 高度 | 18 mm |
| 长度 | 2.008" (51.00mm) | 重量 | 0.04 kg |
| 包装方式 | Bulk | 屏蔽 | Shielded |
| 导线类型 | Stranded / Solid | 电缆类型 | Round Cable, Solid or Stranded Wires |
| 导线线规 | 0.3-0.4² [22] | 方向 | Straight |
| 屏蔽类型 | Yes | 端接方式 | IDC |
| 电缆开口 | Straight | 安装类型 | Cable Mount |
| 外壳镀层 | Nickel | 电缆直径 | 6.5 |
| 连接器类型 | RJ45 | 接触镀层 | Gold over Nickel |
| 安装样式 | Cable | 连接器样式 | Plug |
| 插入件材料 | 铜合金 | 屏蔽材料 | Copper Alloy |
| 触头材料 | Copper Alloy | 壳体材料 | Polycarbonate GF |
| 总长度 | 13.97 mm | 包装数量 | 10 |
| 主要材料 | Copper Alloy | 电缆端接方式 | Straight |
| 连接器 - 电缆 | plug | 触点数 | 9 |
| 位数 | 4 | 触点材料 - 镀层 | gold plated |
| 外壳与棱镜材料 | Polycarbonate | 第一连接器安装特征 | 8p4c |
产品信息
| SPG | 10 | 类型 | RJ-45 |
| 等级 | Industrial Ethernet | 连接器性别 | PL |
| 产品特性 | Cable Clamp, Housing | USOC 编码 | RJ45 |
| UNSPSC代码 | 31163100 | 主要用途 | Cable Clamp, Housing |
| 制造商全称 | Tyco Electronics | 预装 | 是 |
| 产品子类型 | Ethernet IP 20 Field Installation | 图案编号 | RJ45 |
| 端口数 | 1 Port | 单元数量 | 80 |
| 其他规格 | Cable | 加载位置数 | 8 |
| 位置/触点数量 | 8p4c | ||
环境参数
| 防护等级 | IP20 | 工作温度 | -40...70°C |
