点击放大查看

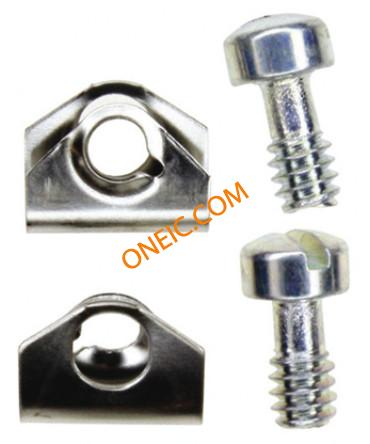

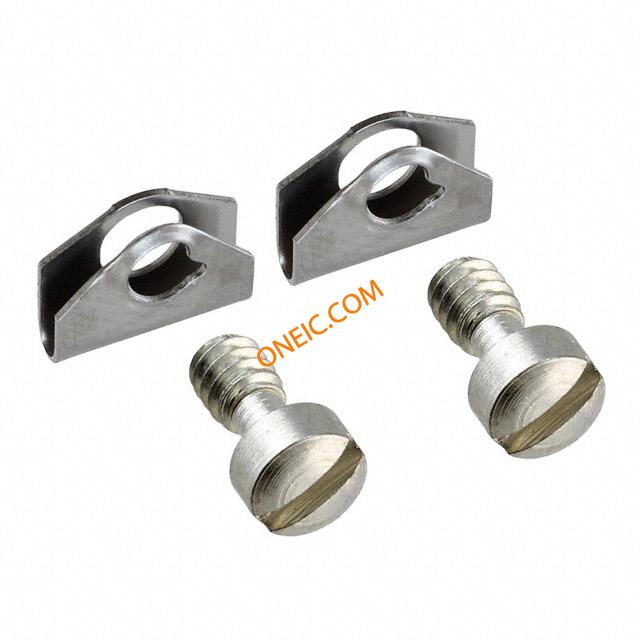

1857211-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories Male Screw Retainers Stainless Steel Tin Finish Individual D-Sub Tools & Hardware KIT SCREW RETAINER AMPLIMITE 4-40 UNC AMPLIMITE Hardware SCREW RETAINER MALE 4-40 THREAD AMPLIMITE screw retainer, 4-40, 5.8mm MALE SCREW RETAINERS, 4-40 UNC SCREWRETAINERKIT4-40 TE Connectivity 连接器螺钉 KIT, SCREW RETAINER AMPLIMITE, |
| 分类 |
商业参数
| 产品 | Hardware | 产品类别 | D-Sub Tools & Hardware |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant / ELV compliant |
| 认证机构标志 | No | ||
机械参数
| 长度 | 5.8 mm | 重量 | 0.004 |
| 直径 | 4.4 mm | 包装方式 | Individual |
| 本体表面处理 | Tin | 螺纹尺寸 | 4-40 |
| 螺钉表面处理 | Tin | 连接器类型 | :- |
| 接触镀层 | :- | 触头材料 | :- |
| 总长度 | 8.6 mm | 包装数量 | Individual |
| 螺钉材料 - 镀层 | Tin | 头部以下螺纹长度 | 5.8 |
产品信息
| 备注 | All parts are packaged unassembled. | 类型 | Male Screw Retainer |
| 连接器性别 | Male | 系列 | :- |
| 产品特性 | Clip | 制造商全称 | Tyco Electronics |
| 附件类型 | Male Screw Retainers | 射频系列/标准 | 1857211 |
| 适用产品/相关产品 | D-Sub Metal Shell Connectors Series AMPLIMITE HDE, HDP | ||
