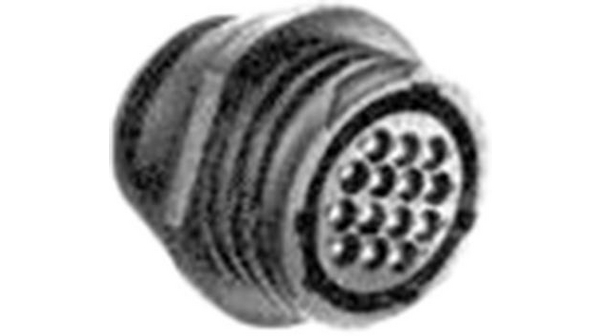

183079-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 9 POS Crimp ST Standard Circular Connector RECPT 13-9 STD.SEX FREE HANGING Circular Plastic Connectors CONN RCPT CPC HSING 13-9 STD Cable mnt rcpt,series1,sz 13,9 way,pin HOUSING, 9WAY, STRAIGHT Connector: circular; Series: CPC Series 1; male; w/o terminals Receptacle CPC 1 9P Female 13, 183079-1, TE Connectivity TE Connectivity 9 路 直 母 电缆安装 PCB 壳体 FREE HANG.13-9STD. SEX SRS 1 |
| 分类 |
商业参数
| 商标名 | CPC Series 1 | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 合规性 | No | UL列名 | Recognized |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant / ELV compliant |
| 认证机构标志 | Yes | 材料阻燃等级 | UL 94V-0 |
电气参数
| 电阻 | None | 量程（°/s） | :TE - CPC Series |
| 额定电压 | 600V | 通道数量 | 9.0 |
| 连接器类型 - 电压输入 | w/o terminals | ||
机械参数
| 深度 | 26.8mm | 宽度 | 22.1mm |
| 长度 | 34.4mm | 密封型 | No |
| 重量 | 0.004 | 包装方式 | Bulk |
| 外壳尺寸 | 13 | 方向 | Keyed |
| 外壳样式 | Receptacle | 螺纹尺寸 | 3/4 - 20 UNEF-2A |
| 触点尺寸 | 16 | 触头类型 | Pin |
| 外壳颜色 | Black | 安装类型 | Straight |
| 连接器类型 | Housing | 接触镀层 | :- |
| 紧固类型 | Threaded Coupling | 安装样式 | Free Hanging |
| 封装形式 | size 13 | 连接器样式 | Receptacle |
| 锁定特性 | threaded joint, external thread | 壳体材料 | PA 6.6 |
| 包装数量 | 100 | 第一触头极性 | Pin (Male) |
| 配接方向 | Threaded | 触点数 | 9 |
| 绝缘直径 | 2.54 | 位数 | 0.0 |
| 外壳尺寸-插件 | All Plastic | 外壳材料及表面处理 | Polyamide, Glass Filled |
| 外壳与棱镜材料 | polyester | 第二连接器安装特性 | Standard |
产品信息
| SPG | 100 | 备注 | Contacts Not Provided |
| 类型 | Housing | 连接器性别 | RCP |
| 系列 | CPC | CAD图纸 | 3D CAD Model |
| 制造商全称 | Tyco Electronics | 产品子类型 | Connectors |
| 适配器系列 | CPC Series 1 | 单元数量 | 1 |
| 其他规格 | Without | ||
环境参数
| 防护等级 | Without | ||
文档与媒体
相关型号
182645-1
te connectivity / amp
