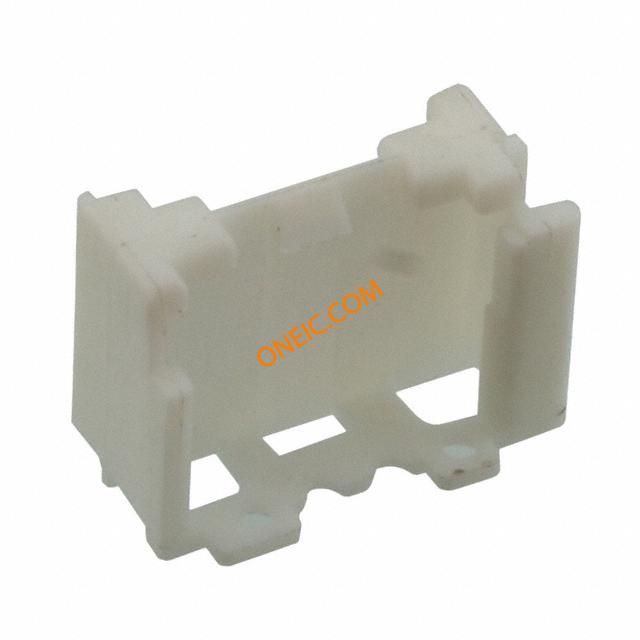

179472-8
| 制造商 | TE Connectivity Ltd. |
| 描述 | Connector Accessories 8 POS Captivating Holder Nylon Natural 2mm AMP CT CONN DBL ROW HOLDER CT 8POS Headers & Wire Housings HOLDER FOR CT DBLROW CRIMP 8P 2mm AMP CT Connectors 2mm AMP CT Connectors Product Highlights:AccessoryAccessory Type = Captivating HolderConnector Type = Crimp, MT (Mass Termination)8 PositionsNylon Housing MaterialSearch Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, HOLDER FOR CT DBL ROW CRIMP 8P |
| 分类 |
商业参数
| 商标名 | Common Termination | 标准包装规格 | 1,000 |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 供电电压 | 125 | 最大额定电流 | 4 |
机械参数
| 颜色 | 象牙色 | 间距 | 2 mm [ .079 in ] |
| 形状 | 矩形 | 宽度 | 8.5 mm [ .334 in ] |
| 高度 | 8.3 mm [ .32677 in ] | 长度 | 12.29 mm [ .484 in ] |
| 包装方式 | 袋 | 壳体颜色 | 自然 |
| 电缆类型 | 分离式导线 | 导线线规 | 30 – 22 |
| 安装类型 | 带有 | 连接器类型 | 线到板 |
| 排数 | 2 | 包装数量 | 1000 |
| 主要材料 | PA66 | 连接器间距 | 6.6 |
| 连接器颜色 | 象牙色 | 位数 | 8 |
| 兼容外壳尺寸（如TM-700等） | CT 连接器 | ||
产品信息
| 备注 | 每个支架上都使用了两个母连接器。 | 类型 | Holder |
| 系列 | AMP CT | 产品子类型 | Accessories |
| 附件类型 | Holder | 射频系列/标准 | 179472 |
| 适用产品/相关产品 | CT Series | ||
环境参数
| 工作温度 | -30 – 105 °C [ -22 – 221 °F ] | ||
