点击放大查看

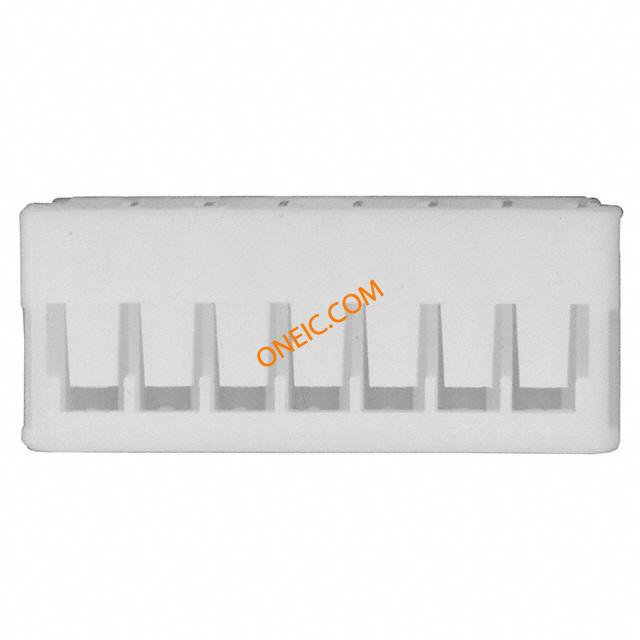

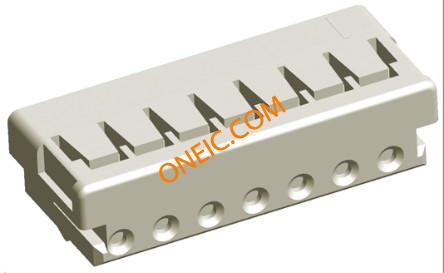

179228-7
| 制造商 | TE Connectivity Ltd. |
| 描述 | Headers & Wire Housings RCPT 7 POS CRIMP 2mm 2mm AMP CT CONN RCPT 7POS SGL CRIMP 2MM Receptacle housing, 2mm, 7 way, CT Conn Housing RCP 7 POS 2mm Crimp ST Cable Mount Conn Housing RCP 7 POS 2mm Crimp ST Cable Mount Product Highlights:ConnectorConnector Type = CrimpMating Type = ReceptacleNumber of Positions = 7Number of Rows = 1Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, Receptaclehousing,2mm,7way,CT TE Connectivity AMP CT 系列 2mm 节距 7 路 直 母 压接连接器外壳 CT CRIMP-2 REC HSG 7P NATURAL |
| 分类 |
商业参数
| 商标名 | Common Termination | 其他名称 | A98607 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 40,000 |
| 工厂包装数量 | 2500 | ||
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| UL档案号 | E28476 | CSA档案号 | LR 7189 |
| 标准编号 | CSA, UL | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 供电电压 | 125 VAC, 125 VDC | 输入电阻 | 1000 |
| 连接器阻抗 | 压接 | 最大额定电流 | 4/Contact A |
| 最小供电电压 | 125VDC/125VAC | 保护额定电压（VPR） | 2000 VAC |
机械参数
| 颜色 | Natural | 深度 | 6.6mm |
| 间距 | 2 mm | 形状 | 矩形 |
| 宽度 | 4.6mm | 高度 | 4.6 mm |
| 长度 | 16mm | 包装方式 | Bulk |
| 壳体颜色 | 自然 | 导线线规 | 22-30 |
| 方向 | 直 | 触头类型 | Female Socket |
| 第二连接器 | Without | 外壳颜色 | Natural |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Crimp |
| 安装样式 | Wire | 排数 | 1 |
| 连接器用途 | Receptacle | 壳体材料 | Nylon |
| 总长度 | 2.00 [0.079] | 包装数量 | 2500 |
| 面板安装类型 | Without | 端接样式 | Crimp |
| 第一触头极性 | Pin (Male) | 触点数 | 7 |
| 接触件端接 | Crimp | 位数 | 7 |
| 触头长度-柱 | 信号（数据） | 安装孔直径 | 带有 |
| 典型触点布局 | 同轴 | 静电放电屏蔽 | 不带 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | Female | 系列 | AMP CT |
| 可密封 | 否 | 产品子类型 | Receptacles / Sockets - Housings |
| 连接类型 | Wire | 适用产品/相关产品 | Wire-to-Board Connector |
环境参数
| 测试温度 | 标准部件 - 非辉光导线 | 工作温度 | -30C to 105C |
文档与媒体
相关型号

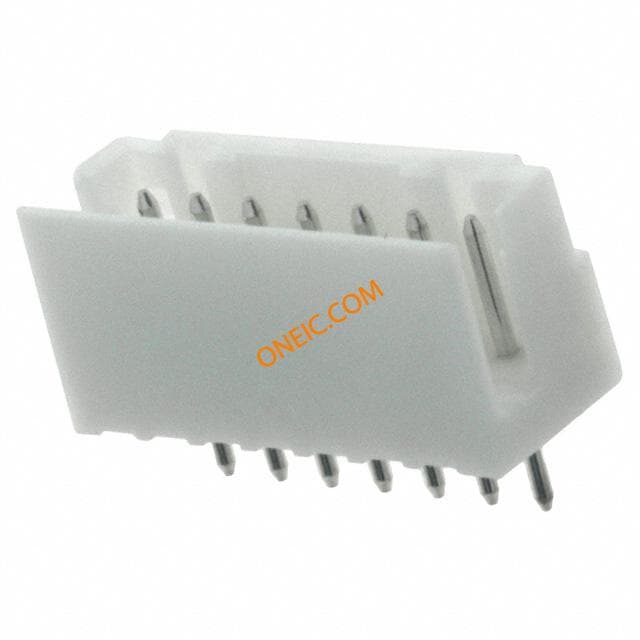

292133-7
te connectivity / amp
Conn Shrouded Header HDR 7 POS 2mm Solder ST Thru-Hole 2mm AMP CT CONN HEADER 7POS VERT 2MM Headers & Wire Housings CT P/HDR ASSY BOX V 7P W/O KIN 2mm AMP CT Connectors 2mm AMP CT Connectors Product Highlights:Wire-to-BoardApplies To Printed Circuit Board2.00 mm CenterlineConnectorHeaderSearch Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, CT P/HDR ASSY BOX V 7P W/O KIN
179227-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip 2mm AMP CT CONN CONT RCPT 26-22AWG CRIMP Crimp socket contact, 22-26 AWG, CT Headers & Wire Housings CONTACT CRIMP RECPT Reel of 10000 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactConnector Type = CrimpMating Type = ReceptacleTerminate To WireWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, CONTACT, SKT GOLD CRIMP CONTACT, CRIMP, SOCKET, 26-22AWG, REEL CONTACT,RECEPTACLE,CRIMPTYPEII TE Connectivity AMP CT 系列 母 压接接线端子, 压接, 镀锡触点 CRIMP TYPE II REC CONTACT
179609-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip 2mm AMP CT CONN CONT RCPT 30-26AWG CRIMP Crimp socket contact, 26-30 AWG, CT Headers & Wire Housings RCPT CONTACT Reel of 10000 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactConnector Type = CrimpMating Type = ReceptacleTerminate To WireWire Range = 0.05-0.15 [30-26] mm [AWG]Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, CONTACT, CRIMP, SOCKET, 30-26AWG, REEL AMPCTCRIMPType2ReceptacleContact TE Connectivity AMP CT 系列 母 压接接线端子, 压接, 镀锡触点 AMP CT CRIMP TTYPE-2 REC CONT.

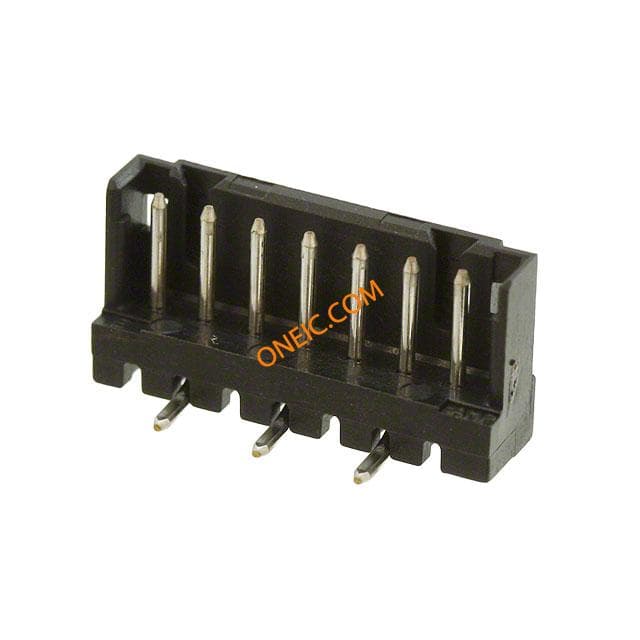

292172-7
te connectivity / amp
Conn Shrouded Header HDR 7 POS 2mm Solder ST SMD Tube 2mm AMP CT CONN HEADER 7POS SMD VERT TIN Headers & Wire Housings CT POST HDR ASSY 7P IN-TUBE BL CT POST HDR ASSY 7P IN-TUBE BL CT POST HDR ASSY 7P IN-TUBE BL Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors,
179227-4
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip 2mm AMP CT CONN SOCKET 2MM 22-26AWG Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactConnector Type = CrimpMating Type = ReceptacleTerminate To WireWire Range = 0.12-0.40² [26-22] mm [AWG]Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, AMP CT CRIMP-2 REC CONT AU

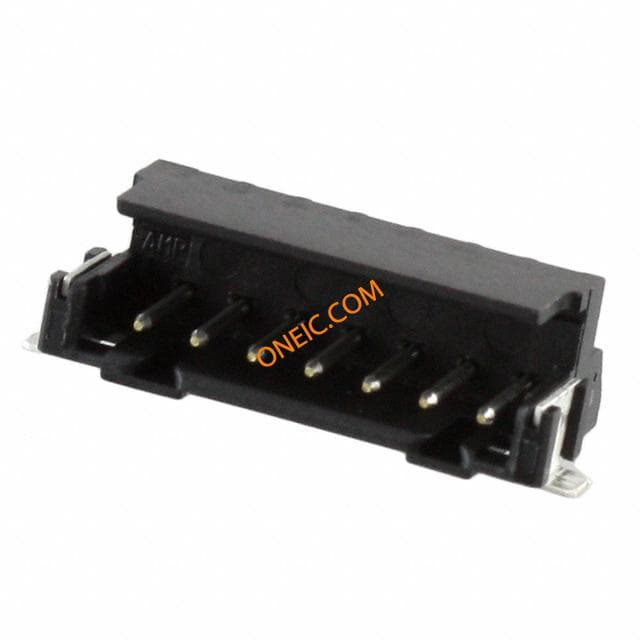

2-292173-7
