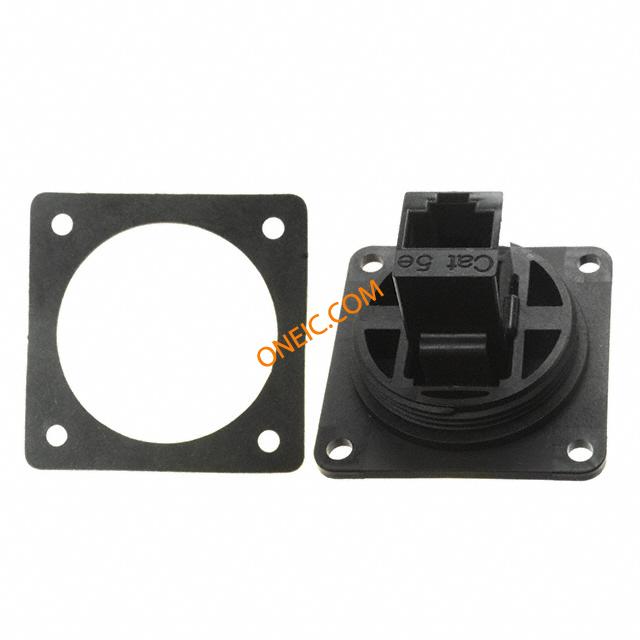

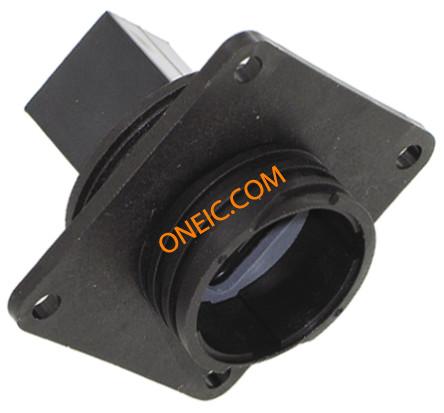

1776186-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn RJ-45 RCP 8 POS Crimp ST Panel Mount 8 Terminal 1 Port Cat 5 CPC Series 45 Ethernet COUPLER MODULAR 8POS-8POS Receptacle Kit, Industrial Ethernet, CPC Modular Connectors / Ethernet Connectors RECEPTACLE KIT PASS-THROUGH Conn RJ-45 RCP 8 POS Crimp ST Panel Mount 8 Terminal 1 Port Cat 5 Product Highlights:Connector Style = ReceptacleNot ShieldedWire Termination = NoSearch Keywords:CPC (Circular Plastic Connector) Series 45 Ethernet, RJ45/RJ45, Category 5, Category 5e, Ethernet RJ45 ETHERNET CONNECTOR, PASSTHROUGH, RCPT 8WAY, PANEL ReceptacleKit,IndustrialEthernet,CPCSeries45,PassThrough,Unshielded PASSTHROUGH RECEPTACLE ASSY |
| 分类 |
商业参数
| 产品 | Industrial Ethernet Connectors | 产品类别 | Modular Connectors / Ethernet Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
机械参数
| 重量 | 0.032 | 材料（通用） | UL94V-0Housing |
| 屏蔽 | Unshielded | 屏蔽类型 | No |
| 端接方式 | Crimp | 安装类型 | Panel Mount |
| 连接器类型 | :RJ45 | 安装样式 | Panel |
| 主要材料 | ReceptacleKit | 导线端接方式 | No |
| 触点数 | 8 POS | 第一连接器安装类型 | :Panel |
| 第一连接器安装特征 | :Receptacle | ||
产品信息
| 类型 | RJ-45 | 连接器性别 | RCP |
| 系列 | 45 | 产品特性 | Circular Threaded Coupling |
| 套件类型 | Socket Kit | USOC 编码 | RJ45 |
| 制造商全称 | CPCSeries45 | 产品子类型 | Receptacle Assembly |
| 类别编号 | Cat 5 | 端口数 | 1 Port |
| 射频系列/标准 | 1776186 | 性能类别 | Cat 5e |
| 转换端（适配器端） | Jack, 8p8c (RJ45) | 转换自（适配器端） | Jack, 8p8c (RJ45) |
| 加载位置数 | 8 | 适用产品/相关产品 | Category5and5eCables |
| 转换前位置数 | :8 | ||
环境参数
| 额定等级 | Cat5e | 防护等级 | IP67 - Dust Tight, Waterproof |
| 工作温度 | -55 â +105 | ||
