点击放大查看

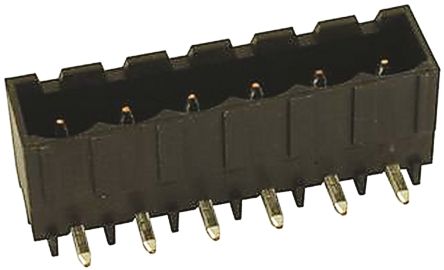

1776038-6
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 6 POS 5.08mm Solder RA Thru-Hole Barrier Terminal Blocks 6P 5.08mm R/A HDR CE Terminal Block Connectors TERM BLOCK HDR 6POS R/A 5.08MM 6P 5.08 R/A HDR,CLOSED END 6P 5.08 R/A HDR,CLOSED END Search Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end PIN HEADER, EUROSTYLE, 6POS, 0.2IN TE Connectivity Buchanan 系列 5.08mm 节距 6 路 公 黑色 直 PCB 管座, 面板安装, 焊接端接 |
| 分类 |
商业参数
| 产品 | Barrier Terminal Blocks | 标准包装规格 | 100 |
| 产品类别 | Barrier Terminal Blocks | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 00000000 |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 电流 | 15A | 电压 | 300V |
| 额定电压 | 300 VAC | 供电电压 | 300 |
| 最大额定电流 | 15 A | ||
机械参数
| 颜色 | Black | 间距 | 5.08 mm |
| 重量 | 0.002 | 端部样式 | With |
| 包装方式 | Bulk | 遮蔽类型 | Yes |
| 导线线规 | :12AWG | 端接方式 | Solder |
| 外壳颜色 | Black | 尾部长度 | 3.20 [0.126] |
| 安装类型 | Right | 连接器类型 | Header |
| 接触镀层 | Tin | 法兰特征 | Without |
| 排数 | 1 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Nylon | 排针方向 | 90°, Right Angle |
| 触点数 | 6 | 位数 | 6 |
| 接线端子类型 | Header, Male Pins, Shrouded (4 Side) | 中心触点材料 | 5.08 [0.200] |
| 线规或范围 - AWG | :30AWG | 第一连接器安装类型 | :PCB |
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | :- | 制造商全称 | Tyco Electronics |
| 产品子类型 | Connector | 侧面可堆叠 | No |
| 层数 | 1 | 互连系统 | Without |
| 每层位数 | 6 | ||
