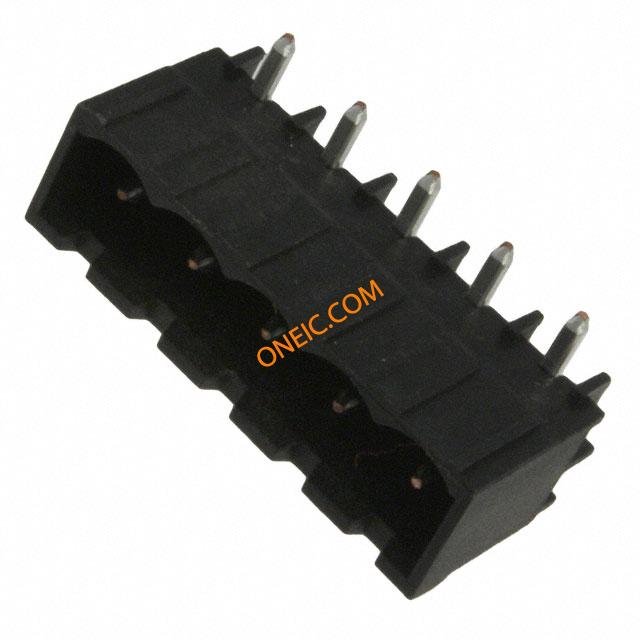

1776038-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 5 POS 5.08mm Solder RA Thru-Hole Pluggable Terminal Blocks 5P 5.08 R/A HDR CLOSED END Terminal Block Connectors TERM BLOCK HDR 5POS R/A 5.08MM Conn Shrouded Header HDR 5 POS 5.08mm Solder RA Thru-Hole Product Highlights:ConnectorConnector Type = HeaderShroudedHousing Color = BlackNot Side StackableSearch Keywords:cage clamp, modular, one-piece, pcb, stackable, end-to-end 5P 5.08 R/A HDR,CLOSED END |
| 分类 |
商业参数
| 产品 | Pluggable Terminal Blocks | 其他名称 | 17760385 |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 150 |
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 电流 | 15A | 电压 | 300V |
| 额定电压 | 300 VAC | 供电电压 | 300 |
| 额定交流电压 | 300 | 最大额定电流 | 15 A |
| 最小供电电压 | 300VAC | ||
机械参数
| 颜色 | Black | 深度 | 12 mm |
| 间距 | 5.08 mm | 高度 | 8.65 mm |
| 端部样式 | With | 包装方式 | Bulk |
| 遮蔽类型 | Yes | 壳体颜色 | 黑色 |
| 端接方式 | Solder | 引脚长度（针脚） | 3.2 mm [ .126 in ] |
| 外壳颜色 | Black | 尾部长度 | 3.20 [0.126] |
| 安装类型 | Right | 连接器类型 | Header |
| 接触镀层 | Tin | 法兰特征 | Without |
| 安装样式 | Through Hole | 排数 | 1 |
| 插入件材料 | 铜合金 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Nylon | 总长度 | 27.28 mm |
| 包装数量 | 150 | 端子宽度 | 否 |
| 排针方向 | 90°, Right Angle | 触点数 | 5 |
| 位数 | 5 | 接线端子类型 | Header, Male Pins, Shrouded (4 Side) |
| 螺纹/螺钉/孔尺寸 | 不带 | 中心触点材料 | 5.08 [0.200] |
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | 无 | 盖类型 | 是 |
| 制造商全称 | Tyco Electronics | 产品子类型 | Connector |
| 侧面可堆叠 | No | 层数 | 1 |
| 互连系统 | Without | 每层位数 | 5 |
| 并排堆叠 | 否 | ||
