1761028-5
| 制造商 | |
| 描述 | Conn D-Subminiature SKT 100 POS 2.54mm Solder RA Thru-Hole 100 Terminal 1 Port Tube D-Sub Standard Connectors 050 100R R/A PCB .050 Series Board Mount Connectors CONN R/A RCPT 100POS .050 AMPLIMITE .050 d-sub PCB socket,100 way 1761028-5 Conn D-Subminiature SKT 100 POS 2.54mm Solder RA Thru-Hole 100 Terminal 1 Port Tube Product Highlights:ConnectorReceptacleNumber of Positions = 100ShieldedWith Mating Connector LockSearch Keywords:SCSI-2, SCSI-3, EIA RS-232, ISO-11569, HIPPI, High Performance Parallel Interface, IPI-2, IEE 802.3 MII, high density, VME, Versa Module Europe, AMPLIMITE, Subminiature D, box to box, vertical boardmount, right angle posted, straight posted, d-sub, d sub, dsub WIRE-BOARD CONN, RCPT, 100POS, 1.27MM Conn;D-Sub;PCBSocket;100Pos;RTAng;IIISeries;Solder TE Connectivity Amplimite .050 III 系列 1.27mm 节距 100 路 直角 通孔安装 PCB D-sub 连接器 插座 100 50SR R/A RCPT ASSY,LEADFREE |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 6 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366930 |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 量程（°/s） | :TE CONNECTIVITY - Amplimite 0.050 Series | 额定电压 | 30V |
| 开关功能 | Without | 最大额定电流 | 1A |
机械参数
| 颜色 | Black | 深度 | 16.87mm |
| 间距 | 2.54 mm | 宽度 | 9.5mm |
| 长度 | 84.2mm | 重量 | 0.00001 |
| 镀层 | Tin over Nickel | 材料（通用） | Zinc |
| 包装方式 | Tube | 屏蔽类型 | Yes |
| 端接方式 | Solder | 触头类型 | Signal |
| 第二连接器 | With | 外壳颜色 | Black |
| 安装类型 | Through Hole | 外壳镀层 | Tin |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Gold |
| 法兰特征 | Housing/Shell (2-56); Latchblocks, Rails | 安装导轨 | With |
| 安装样式 | Through Hole | 排数 | 4 |
| 外壳材料（壳体） | Steel | 电路板厚度 | 1.57 [0.062] |
| 连接器样式 | D-Type | 锁定特性 | Latch Blocks |
| 触头材料 | Phosphor Bronze | 壳体材料 | Thermoplastic |
| 尺寸/外形 | 84.2 x 9.5 x 16.87mm | 端接样式 | Solder |
| 触点数 | 100 | 接触件端接 | :Through Hole Right Angle |
| 位数 | 100 | 外壳尺寸-插件 | Full Metal |
| 外壳材料及表面处理 | Steel, Nickel Plated | 端子柱长度 | 2.54 [0.100] |
| 接触镀层厚度 | Flash | 第一连接器安装类型 | :PCB |
| 外壳尺寸，连接器布局 | 0.050 Pitch x 0.100 Row to Row | ||
产品信息
| 类型 | D-Subminiature | 连接器性别 | SKT |
| 系列 | Series III | 产品特性 | Board Lock, Shielded |
| CAD图纸 | 3D CAD Model | 制造商全称 | AMP |
| 产品子类型 | Connector | ||
环境参数
| 工作温度 | -55°C ~ 105°C | ||
文档与媒体
相关型号
5749111-8
te connectivity / amp

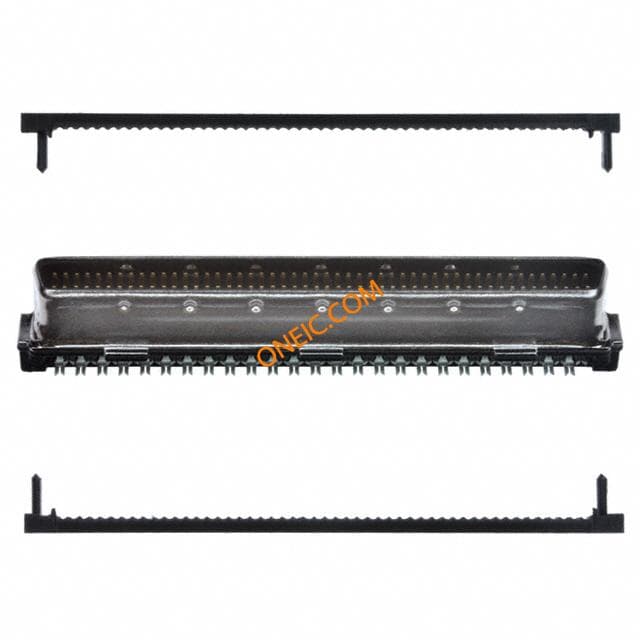

Conn SCSI PL 100 POS 1.27mm IDT RA Cable Mount 100 Terminal 1 Port .050 Series Cable Connectors (SCSI) 100 50SR CABLE PLUG ASSY TE Connectivity Male 100 Way Right Angle Cable Mount SCSI Connector 1.27mm Pitch, IDC I/O Connectors 100 CABLE PLUG ASSY Conn SCSI PL 100 POS 1.27mm IDT RA Cable Mount 100 Terminal 1 Port Product Highlights:ConnectorPlugNumber of Positions = 100Wire/Cable Type = Round Jacketed CableWire Range = 0.05-0.09² [30-28] mm [AWG]Search Keywords:AMPLIMITE, Subminiature D, high density, wire to board, board to board, cable to board, cable to cable, box to box, cabled connectors, d-sub, d sub, dsub CONNECTOR, D-SUB, MALE Conn;D-Sub;CablePlug;100Pos;STR;IIISeries;IDC;30-28AWG AMPLIMITE .050 Series 100 Position Steel Shell Plug IDC Connector TE Connectivity 100 路 1.27mm节距 直角 电缆安装 公 SCSI 连接器, IDC
