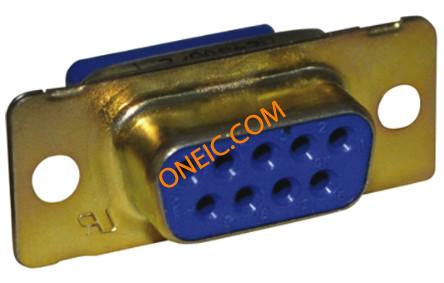

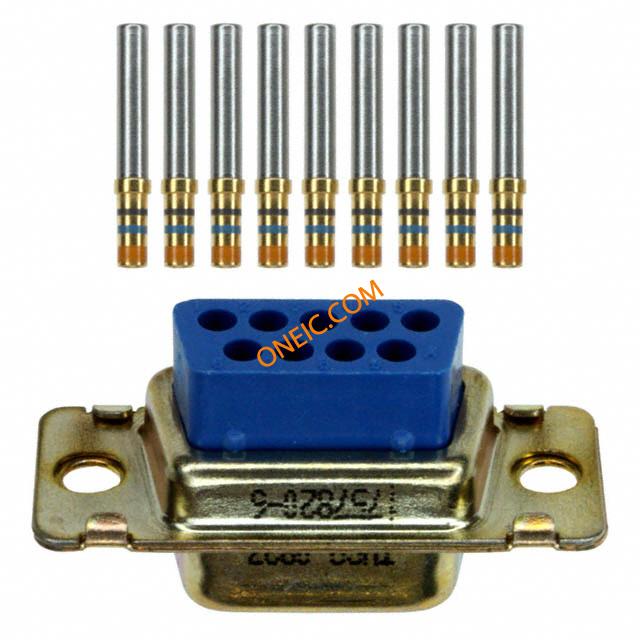

1757820-6
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 9 POS Crimp ST Panel Mount Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 AMPLIMITE 109 Receptacle+Contacts 9P Conn Housing RCP 9 POS Crimp ST Panel Mount Product Highlights:ConnectorProduct Series = 109Density = StandardTerminate To WireNumber of Positions = 9Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub D SUB SHELL, RECEPTACLE, 9POS, STEEL CONN D-SUB RECEPT 9POS CRIMP Conn;D-Sub;CableSocket;9Pos;STR;109Series;Crimp;20AWG AMPLIMITE,ASY,RCPT,STD,109,ZN,1,CT |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Compliant | 标准 | MIL-C-24308 |
| 海关税号 | 85366910 | 抗辐射加固 | No |
| 资质认证 | No | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | Yes |
电气参数
| 连接器阻抗 | No | 最大额定电流 | 7.5A |
机械参数
| 颜色 | Blue | 深度 | 11.15 mm |
| 高度 | 12.93 mm | 重量 | 0.068 |
| 材料（通用） | Stainless Steel | 包装方式 | Bulk |
| 出线方向 | Straight | 外壳尺寸 | 1 |
| 导线线规 | 20 | 端接方式 | Crimp |
| 触点尺寸 | 20 | 触头类型 | Crimp Snap-in |
| 非磁性 | No | 安装类型 | Straight |
| 外壳镀层 | Zinc | 行程角度 | Straight |
| 连接器类型 | Crimp | 接触镀层 | Gold over Nickel |
| 法兰特征 | Housing/Shell (Unthreaded) | 外壳涂层 | Zinc |
| 安装样式 | Mounting Holes | 排数 | 2 |
| 外壳材料（壳体） | Steel | 连接器样式 | D-Sub |
| 本体材料 | :Metal | 触头材料 | Copper Alloy |
| 壳体材料 | Steel | 总长度 | 31.19 mm |
| 主要材料 | D-Subminiature | 触点数 | 9 |
| 位数 | 9 | 外壳尺寸-插件 | :1 |
| 衬套/护套类型 | No | 安装孔直径 | 3.05 [.120] |
| 外壳材料及表面处理 | Steel, Yellow Chromate Plated Zinc | 外壳尺寸，连接器布局 | 1 (DE, E) |
产品信息
| 备注 | Size 20 contacts supplied with connectors are loose piece. | 类型 | D-Subminiature |
| 连接器性别 | Receptacle | 系列 | 109 |
| 密度 | Standard | 插座类型 | With |
| 制造商全称 | AMP | 产品子类型 | Connector |
| 连接类型 | Wire | 端口数 | 1 Port |
| 应用细节 | TrueMil | 设备部件号 | M24308/2-1 |
| 适用产品/相关产品 | :Size 20 Crimp Snap-in Contacts | ||
环境参数
| 工作温度 | -55C to 105C | ||
