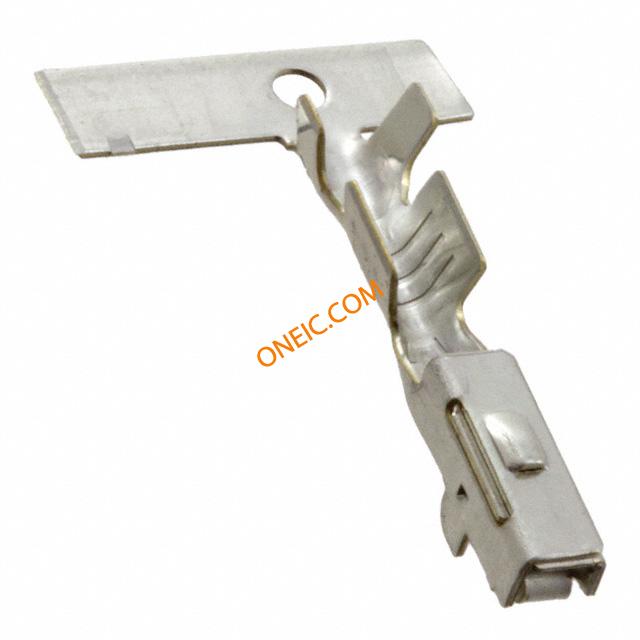

点击放大查看
175269-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Strip MULTILOCK Connectors and Contacts CONN RECPT 16-20AWG TIN CRIMP Contact,crimp,female,16-20awg Automotive Connectors 070 REC (M) FOR NSCC 175269-1 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactTerminate To WireReceptacleWire Range = 0.50-1.40² [20-16] mm [AWG]Insulation Diameter = 1.80 - 2.49 mmSearch Keywords:Wire-to-wire, Wire-to-board, Hybrid, High Density, I/O, CONTACT, RECEPTACLE, 20-16AWG, CRIMP TE Connectivity Multilock 070 系列 母 压接接线端子, 压接, 镀锡触点 070 REC (M) FOR NSCC |
| 分类 |
商业参数
| 产品 | Terminals | 产品类别 | Automotive Connectors |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 4000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
机械参数
| 重量 | 0 | 包装方式 | Tape & Reel (TR) |
| 导线线规 | 16-20 AWG | 端接方式 | Crimp |
| 触头类型 | Signal | 安装类型 | Wire |
| 插针或插孔 | Socket | 卡扣方向（或“接线片方向”） | Receptacle |
| 连接器类型 | Connector Headers and PCB Receptacles | 接触镀层 | Pre-Tin |
| 安装样式 | Wire | 触头材料 | Brass |
| 包装数量 | Strip | 第一触头极性 | :Socket |
| 接触件端接 | Crimp | 绝缘直径 | 1.80 â 2.49 [0.071 â 98.000] |
| 线规或范围 - AWG | :20AWG | 线规或范围 - mm² | 0.50-1.40² [20-16] |
产品信息
| 连接器性别 | SKT | 系列 | 040 II / 070 II |
| 产品特性 | Multilock Connectors and Contacts | CAD图纸 | 3D CAD Model |
| 产品子类型 | Contact | 连接类型 | Wire |
| 专有名称 | MULTILOCK | 适用产品/相关产品 | :MULTILOCK Connectors |
