点击放大查看

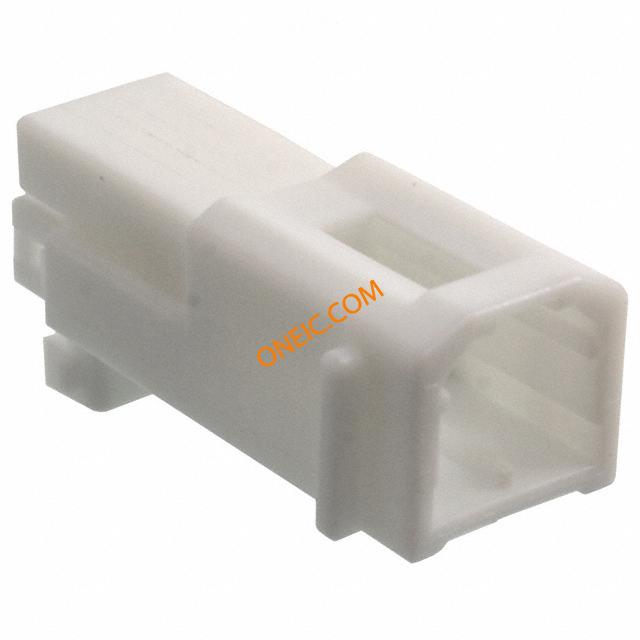

174460-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 2 POS 3.5mm Crimp ST MULTILOCK Connectors and Contacts CONN RCPT HSNG 2POS WHITE 2-way Multilock 070 1-row cap housing Automotive Connectors 2 POS CAP HOUSING Conn Housing RCP 2 POS 3.5mm Crimp ST Product Highlights:HousingReceptacle (Cap)Receptacle Configuration = 070Number of Rows = 1Number of Positions = 2Search Keywords:Wire-to-wire, Wire-to-board, Hybrid, High Density, I/O, HOUSING, RECEPTACLE, MULTILOCK, 2WAY 2-wayMultilock0701-rowcaphousing TE Connectivity Multilock 070 系列 3.5mm 节距 2 路 直 母 PCB 壳体 |
| 分类 |
商业参数
| 产品 | Housings | 产品类别 | Automotive Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94-HB | ||
机械参数
| 颜色 | White | 深度 | 30.9mm |
| 间距 | 3.5 mm | 宽度 | 15.8mm |
| 长度 | 13.9mm | 重量 | 0.02 |
| 包装方式 | Bulk | 触头类型 | Tab |
| 第二连接器 | With | 外壳颜色 | White |
| 安装类型 | Straight | 连接器类型 | Receptacle |
| 安装样式 | Wire | 排数 | 1 |
| 连接器用途 | 70 | 锁定特性 | Hinge Lock |
| 本体材料 | :PBT (Polybutylene Terephthalate) | 壳体材料 | PBT |
| 面板安装类型 | Without | 触点数 | 2 |
| 接触件端接 | Crimp | 位数 | 2 |
| 第二连接器加载位数 | 2 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | 70 |
| 编码、键控 | No | 产品子类型 | Housing |
| 连接类型 | Wire | 专有名称 | MULTILOCK |
| 适用产品/相关产品 | MULTILOCK Wire-to-Wire Connector | ||
