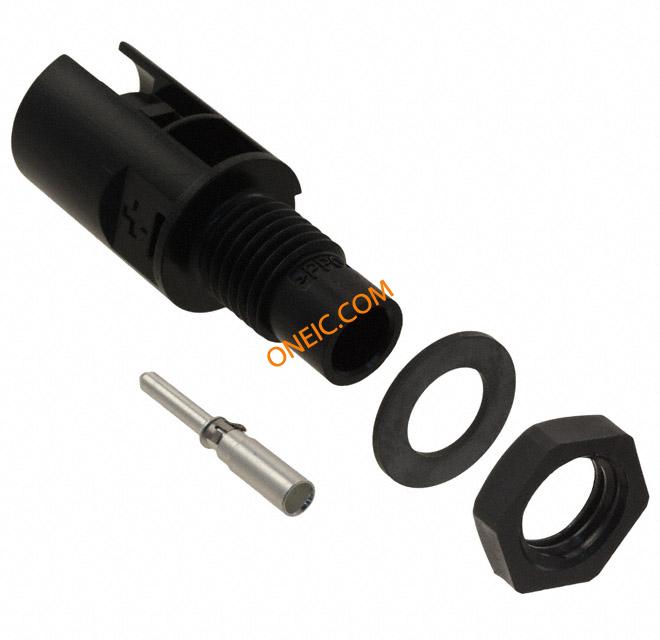

点击放大查看
1740210-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | CONNECTION FOR INVE Photovoltaic Connectors PNL MT RCPT 6.0MMsq PLASTIC NUT PLUS CONN RECEPT 10AWG PLUS KEYED Solar Connectors / Photovoltaic Connectors PNL MT RCPT 6.0MMsq PLASTIC NUT PLUS PLUG & SOCKET CONNECTOR, PLUG, 1POS DCCONVERTERRECEPTACLE,W/FLATSEALANDPLASTICNUT,10AWG,6.0MM2,KEYING=PL |
| 分类 |
商业参数
| 产品 | Accessories | 交货时间 | 59 Days |
| 子类别 | Connector Photovoltaic | 标准包装规格 | 100 |
| 产品类别 | Photovoltaic Connectors | 标准包装数量 | 100 |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
机械参数
| 颜色 | :Black | 重量 | 0 |
| 包装方式 | Bag | 导线线规 | 10 |
| 连接器类型 | :Plug & Socket | 接触镀层 | :Silver |
| 安装样式 | Wire | 触头材料 | :Copper Alloy |
| 端接样式 | Quick Connect | 触点数 | :1 |
| 接触件端接 | :Crimp | 第一连接器安装类型 | :Box |
产品信息
| 类型 | Converter Receptacle, Male Pin | 连接器性别 | Female |
| 系列 | :SOLARLOK | 产品特性 | 10 AWG |
| 功能 | Inverted converter | 编码、键控 | Plus |
环境参数
| 机械寿命 | New At Mouser | ||
