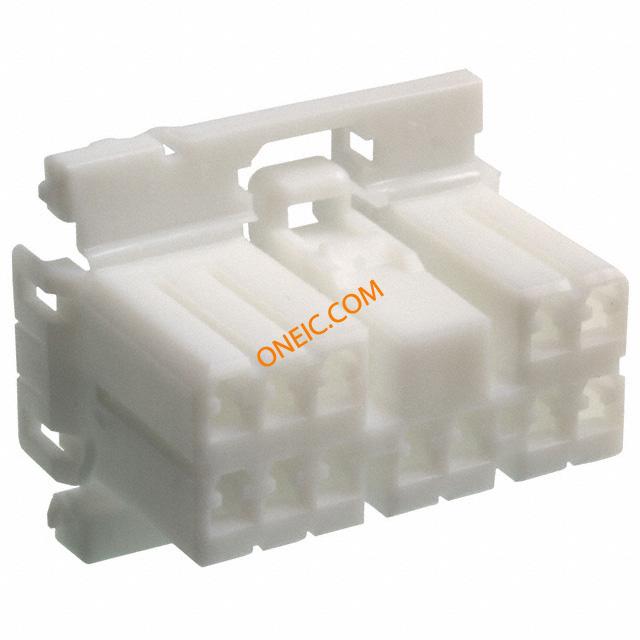

173851-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 12 POS Crimp ST MULTILOCK Connectors and Contacts 070 MULTILOCK PLUG 12P 12-way Multilock 070 2-row plug housing Power to the Board HSG PLG 2X06P F/H Conn Housing PL 12 POS Crimp ST Product Highlights:HousingPlug070 Plug ConfigurationNumber of Rows = 2Number of Positions = 12Search Keywords:Wire-to-wire, Wire-to-board, Hybrid, High Density, I/O, HOUSING, PLUG, MULTILOCK, 12WAY 12-wayMultilock0702-rowplughousing TE Connectivity Multilock 070 系列 2 行 12 路 直 公 PCB 壳体 |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Trays |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94-HB | ||
机械参数
| 颜色 | White | 深度 | 21.6mm |
| 间距 | 0.138" (3.50mm) | 宽度 | 26mm |
| 长度 | 31.9mm | 重量 | 0.02 |
| 包装方式 | Tray | 排间距 | 0.232" (5.90mm) |
| 触头类型 | Female Socket | 第二连接器 | With |
| 外壳颜色 | White | 安装类型 | Straight |
| 连接器类型 | Plug | 紧固类型 | Latch Holder |
| 安装样式 | Wire | 排数 | 2 |
| 锁定特性 | Hinge Lock | 本体材料 | :PBT (Polybutylene Terephthalate) |
| 壳体材料 | PBT | 面板安装类型 | Without |
| 端接样式 | Wire | 第一触头极性 | Socket (Female) |
| 触点数 | 12 | 接触件端接 | Crimp |
| 位数 | 12 | 连接器/触点类型 | 70 |
| 第二连接器加载位数 | 12 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | 70 |
| CAD图纸 | 3D CAD Model | 编码、键控 | No |
| 产品子类型 | Housing | 连接类型 | Wire |
| 专有名称 | MULTILOCK | 适用产品/相关产品 | MULTILOCK Wire-to-Wire Connector |
