点击放大查看

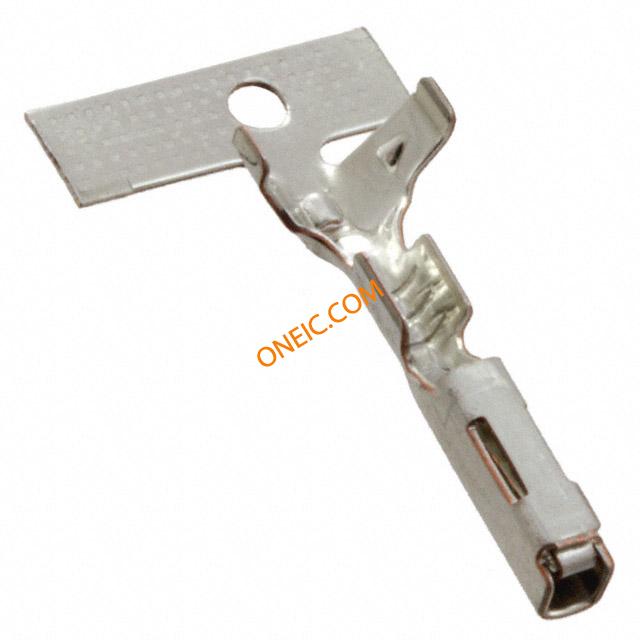

173716-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Contact SKT Crimp ST Cable Mount Strip MULTILOCK Connectors and Contacts CONN RECEPT 20-22AWG TIN 040 Contact, Rec, Multilock, 22-20 AWG Automotive Connectors HDIO RECPT CONTACT Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactTerminate To WireReceptacleWire Range = 0.30-0.60² [22-20] mm [AWG]Insulation Diameter = 1.40 - 2.00 mmSearch Keywords:Wire-to-wire, Wire-to-board, Hybrid, High Density, I/O, CONTACT, CRIMP, RECEPTACLE, 22-20AWG 040Contact,Rec,Multilock,22-20AWG TE Connectivity Multilock 040 系列 母 压接接线端子, 压接, 镀锡触点 040 HDIO REC CONT |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 产品 | Terminals | 其他名称 | A104962CT |
| 产品类别 | Automotive Connectors | 标准包装数量 | Tape & Reel |
| 工厂包装数量 | 5000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 接触电阻 | 20mΩ | ||
机械参数
| 深度 | 5.35 mm | 间距 | Not Required mm |
| 高度 | 3.8 mm | 重量 | 0.005 |
| 包装方式 | Tape & Reel (TR) | 导线线规 | 20-22 AWG |
| 端接方式 | Crimp | 触头类型 | Signal |
| 外壳颜色 | Not Required | 安装类型 | Straight |
| 插针或插孔 | Socket | 卡扣方向（或“接线片方向”） | Receptacle |
| 连接器类型 | Connector Headers and PCB Receptacles | 接触镀层 | Pre-Tin |
| 安装样式 | Wire | 触头材料 | Copper Alloy |
| 壳体材料 | Not Required | 总长度 | 14.2 mm |

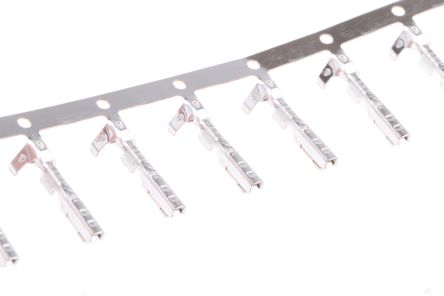

| 包装数量 | Strip | 端接样式 | Crimp |
| 第一触头极性 | :Socket | 触点数 | Not Required |
| 接触件端接 | Crimp | 绝缘直径 | 1.40 â 2.00 [0.055 â 0.079] |
| 线规或范围 - mm² | 0.30-0.60² [22-20] | ||
产品信息
| 类型 | Contact | 连接器性别 | SKT |
| 系列 | 40 | 产品特性 | Connectors and Contacts |
| 制造商全称 | AMP | 产品子类型 | Contact |
| 连接类型 | Wire | 专有名称 | MULTILOCK |
| 适用产品/相关产品 | :Multilock Connectors | ||
环境参数
| 工作温度 | +105°C | 可用温度范围 | -30to+105°C |
| 结工作温度 | 105°C | ||
