点击放大查看

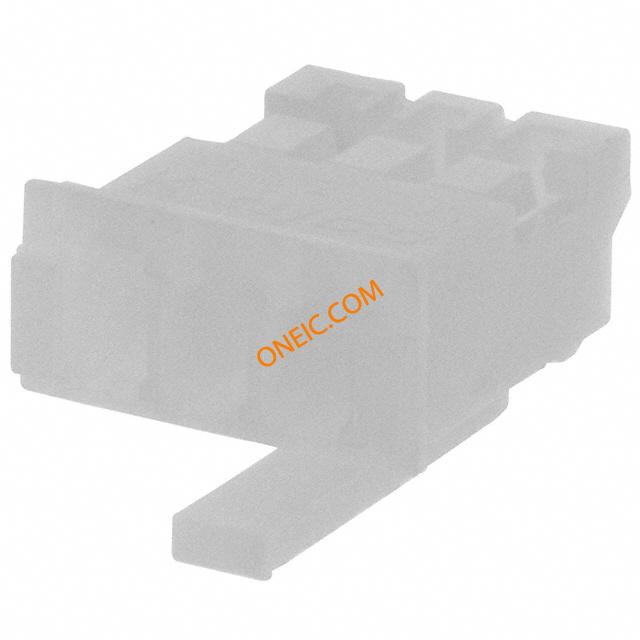

1735447-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 3 POS 2mm Crimp ST Cable Mount Miscellaneous Wire to Board Products CONN HOUSING 3POS 2MM W/LATCH HPI Housing,receptacle,w/latch,3way Headers & Wire Housings 3 POS RECPT 2.0mm Conn Housing RCP 3 POS 2mm Crimp ST Cable Mount Search Keywords:high performance, square peg, pcb connectors, wire to board, power, crimp, discrete wire connectors, wire to board, signal HPIHousing,receptacle,w/latch,3way TE Connectivity HPI 系列 2mm 节距 3 路 直 母 电缆安装 压接连接器外壳 HPI 2.0 Receptacle Housing, 3P |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 600 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant / ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 接口 | With | 供电电压 | 250 VAC, 250 VDC |
| 连接器阻抗 | 锁闩, 锁闩 | 最大额定电流 | 3 |
机械参数
| 颜色 | Natural | 深度 | 9.4mm |
| 间距 | 2 mm | 宽度 | 6.55mm |
| 高度 | 6.55 mm [ .258 in ] | 长度 | 7.92mm |
| 锁定类型 | 带有 | 包装方式 | Bulk |
| 遮蔽类型 | Yes | 壳体颜色 | 自然 |
| 导线线规 | 24-30 AWG | 方向 | 直 |
| 触头类型 | Socket | 第二连接器 | With |
| 外壳颜色 | Natural | 安装类型 | Straight |
| 连接器类型 | Housing | 紧固类型 | Latch Lock |
| 安装样式 | Wire | 排数 | 1 |
| 连接器样式 | Receptacle | 插入件材料 | 铜合金 |
| 壳体材料 | Thermoplastic - GF | 包装数量 | 600 |
| 面板安装类型 | 不带 | 主要材料 | Connector |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 触点数 | 3 | 接触件端接 | Crimp |
| 位数 | 3 | 中心触点表面处理 | 2.0 |
| 兼容外壳尺寸（如TM-700等） | 1735446-x | 安装孔直径 | 带有 |
| 典型触点布局 | 同轴 | 静电放电屏蔽 | 不带 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | 1735447 |
| 可密封 | 否 | 制造商全称 | Tyco Electronics |
| 产品子类型 | Connector | 适用产品/相关产品 | Centerline Locking Connector |
环境参数
| 工作温度 | -25 – 85 °C [ -13 – 185 °F ] | ||
