点击放大查看
1734098-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn SCSI RCP 40 POS 1.27mm IDT RA Cable Mount 40 Terminal 1 Port 1.27 [.050] Series I, HD, FH and J Connectors CONN CHAMP RCPT 40POS .050 IDC 1.27 [.050] Series I, HD, FH and J Connectors Product Highlights:ConnectorReceptacleNumber of Positions = 401.27 mm CenterlineNo PCB Retention Feature Champ050 40p A/P RCPT 25CL PB |
| 分类 |
商业参数
| 标准包装规格 | 50 | 标准包装数量 | Rail / Tube |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 开关功能 | With | 输入电阻 | 1000 |
| 钳位电压 | 500 | 触点电压（最大） | 12 |
机械参数
| 颜色 | Black | 间距 | 1.27 mm |
| 高度 | 15.27 mm [ .6001 in ] | 密封型 | Without |
| 包装方式 | 管 | 壳体颜色 | 黑色 |
| 端接方式 | IDT | 极化 | Post Polarization |
| 致动器类型 | 不带 | 安装类型 | Cable Mount |
| 连接器类型 | Series I | 接触镀层 | Tin over Nickel |
| 安装样式 | 不带 | 排数 | 2 |
| 连接器样式 | Outer Shroud Contacts | 插入件材料 | 磷青铜 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Liquid Crystal Polymer (LCP) |
| 安装特性 | 带有 | 包装数量 | 50 |
| 面板安装类型 | 表面贴装 | 端接样式 | 插座 |
| 位数 | 40 | 衬套/护套类型 | 不带 |
| 兼容外壳尺寸（如TM-700等） | 插头组件 | 中心触点材料 | 1.27 [0.050] |
| 接触镀层厚度 | Flash | ||
产品信息
| 类型 | SCSI | 连接器性别 | RCP |
| 系列 | Series I | 可堆叠 | 否 |
| 制造商全称 | AMP | 产品子类型 | Connector |
| 连接类型 | Ribbon Cable | 装配配置 | 无 |
| 适用产品/相关产品 | Wire To Board Applications | ||
环境参数
| 温度额定值 | High | 工作温度 | -35 – 85 °C [ -31 – 185 °F ] |
| 封装热阻 | 1.42 – 1.72 mm [ .055 – .067 in ] | ||
相关型号
1734100-4
te connectivity / amp
Conn SCSI PL 40 POS 2.54mm Solder ST Thru-Hole 40 Terminal 1 Port 1.27 [.050] Series I, HD, FH and J Connectors PLUG ASSY,CHAMP 050,SER I,40 P I/O Connectors VERT PLUG 40P Series I hi-temp Conn SCSI PL 40 POS 2.54mm Solder ST Thru-Hole 40 Terminal 1 Port Product Highlights:ConnectorPlugNumber of Positions = 401.27 mm CenterlineStandard Profile BOARD-BOARD CONNECTOR, PLUG, 40WAY, 2ROW Series 1 40 Position 1.27 mm Pitch Vertical Plug Connector - Through Hole Champ050 series,40pos,Au over PdNi

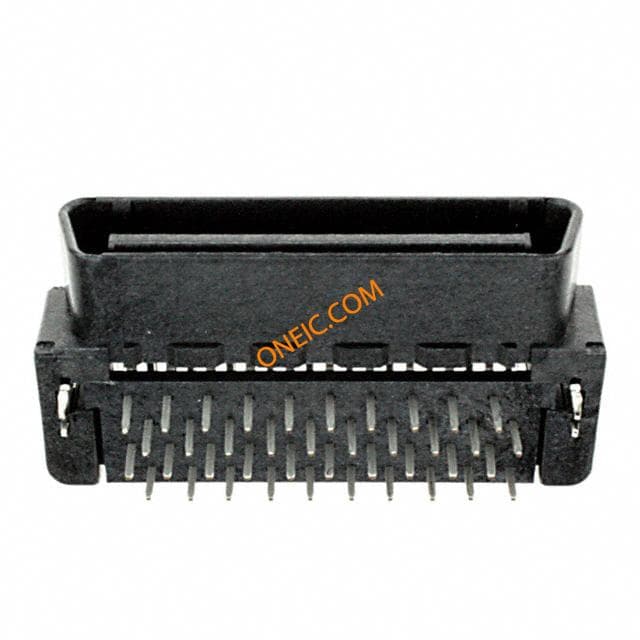

1734099-4
